lingxingicDatasheet (PDF)

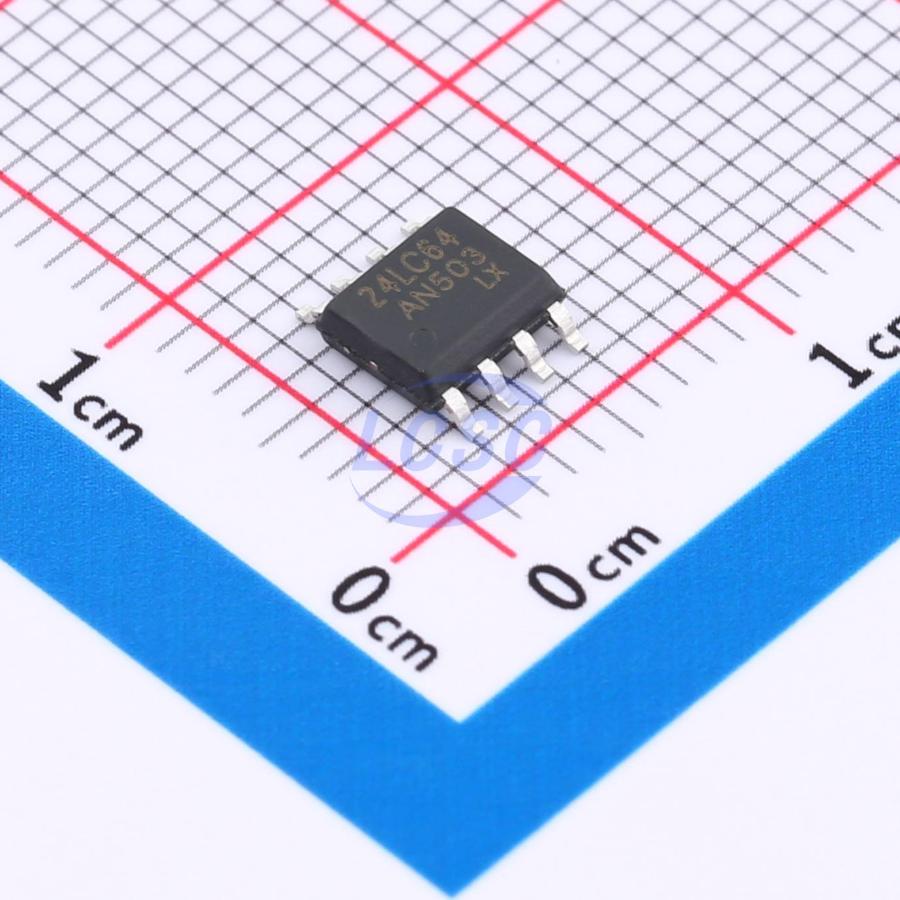

24LC64(LX)
64Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
2-wire serial EEPROM
- Manufacturer
- lingxingic
- Manufacturer part #
- 24LC64(LX)
- Store part #
- C45384746
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C45384746
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.86 | ₹104.30 |
| 50+ | ₹16.39 | ₹819.50 |
| 150+ | ₹14.46 | ₹2,169.00 |
| 500+ | ₹12.07 | ₹6,035.00 |
| 2,500+ | ₹11.01 | ₹27,525.00 |
| 4,000+ | ₹10.36 | ₹41,440.00 |
5 × ₹20.86
₹104.30
excl. GST
₹123.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
24LC64(LX)
₹104.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.102 g
Overview
The 24LC64 is a 64K-bit serial EEPROM organized as 8192×8 bits, internally divided into 256 pages of 32 bytes each. Random word addressing requires a 13-bit data word address. I²C interface, suitable for low-power, low-voltage systems.
Key features
- Write-protect pin for hardware data protection
- Wide operating voltage range: 1.8V～5.5V
- Memory organization: 8192x8 (64K)
- Two-wire serial interface
- Schmitt trigger inputs for noise suppression
- Bidirectional data transfer protocol
- Clock frequency: 400kHz (1.8V～2.5V) and 1MHz (2.5V～5.5V)
- 32-byte page write with partial page write support
- Self-timed write cycle (5ms max)
- High reliability: endurance 1,000,000 cycles; data retention 100 years
- Automotive grade, wider temperature range
- Package options: DIP8, SOP8, TSSOP8
