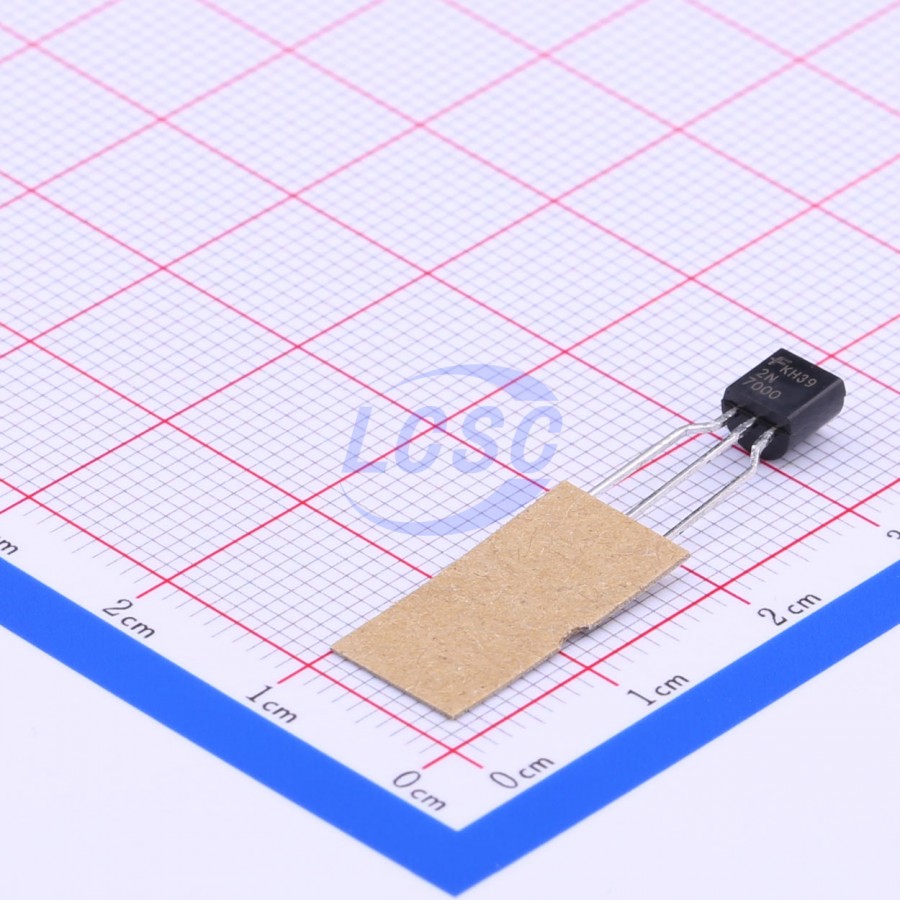

2N7000-D26Z
N-Channel 60V 200mA 400mW Through Hole TO-92-3L
TO-92-3LROHS3 CompliantActive
MOSFET N-CH 60V 200mA TO-92-3L
- Manufacturer
- onsemi
- Manufacturer part #
- 2N7000-D26Z
- Store part #
- C258193
- Package / case
- TO-92-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
665 in stock
#C258193
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.76 | ₹193.80 |
| 50+ | ₹30.18 | ₹1,509.00 |
| 150+ | ₹26.50 | ₹3,975.00 |
| 500+ | ₹21.90 | ₹10,950.00 |
| 2,000+ | ₹19.63 | ₹39,260.00 |
| 4,000+ | ₹18.42 | ₹73,680.00 |
5 × ₹38.76
₹193.80
excl. GST
₹228.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
2N7000-D26Z
₹193.80 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 400mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 200mA
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 5Ω@10V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.494 g
Overview
These N-channel enhancement mode field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. These products have been designed to minimize on-state resistance while providing rugged, reliable, and fast switching performance. They can be used in most applications requiring up to 400 mA DC and can deliver pulsed currents up to 2 A. These products are particularly suited for low-voltage, low-current applications, such as small servo motor control, power MOSFET gate drivers, and other switching applications.
Applications
- Small servo motor control
- Power MOSFET gate driver
- Other switching applications
Key features
- High Density Cell Design for Low Rps(ON)
- Voltage Controlled Small Signal Switch
- Rugged and Reliable High Saturation Current Capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7000#C232838onsemi · TO-92-3L | onsemi | TO-92-3L | 1,680 | ₹51.27 · 1,680 in stock | View |
 | BS170-D26Z#C258163onsemi · TO-92-3 | onsemi | TO-92-3 | 1,990 | ₹28.30 · 1,990 in stock | View |
 | 2N7000-TA#C2910414JSCJ · TO-92 | JSCJ | TO-92 | 4,260 | ₹5.97 · 4,260 in stock | View |
 | 2N7000#C9114JSCJ · TO-92 | JSCJ | TO-92 | 28,030 | ₹5.90 · 28,030 in stock | View |
 | BS170-D27Z#C900826onsemi · TO-92 | onsemi | TO-92 | 130 | ₹29.71 · 130 in stock | View |
