HXY MOSFETDatasheet (PDF)

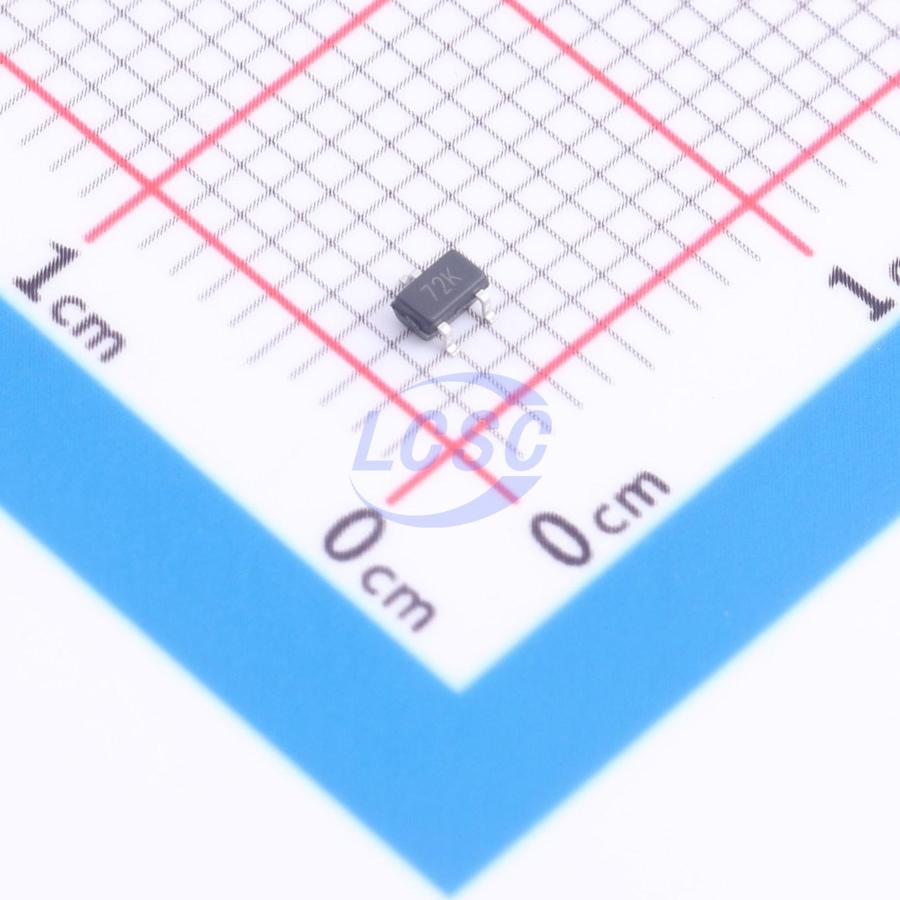

2N7002BKW-HXY
60V 115mA 200mW 1.3Ω@10V 1 N-channel N-Channel SOT-323 Single FETs, MOSFETs
SOT-323RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- 2N7002BKW-HXY
- Store part #
- C54582499
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C54582499
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.59 | ₹92.95 |
| 50+ | ₹14.98 | ₹749.00 |
| 150+ | ₹13.16 | ₹1,974.00 |
| 500+ | ₹11.81 | ₹5,905.00 |
| 3,000+ | ₹9.59 | ₹28,770.00 |
| 6,000+ | ₹9.05 | ₹54,300.00 |
5 × ₹18.59
₹92.95
excl. GST
₹109.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002BKW-HXY
₹92.95 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 115mA
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 200mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 1.3Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The 2N7002BKW utilizes advanced trench technology to deliver excellent on-state resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
- N-channel MOSFET
Key features
- Drain-Source Voltage (VDS) = 60V, Drain Current (ID) = 0.115A
- On-Resistance (RDS(ON)) < 3Ω at VGS = 10V
