HXY MOSFETDatasheet (PDF)

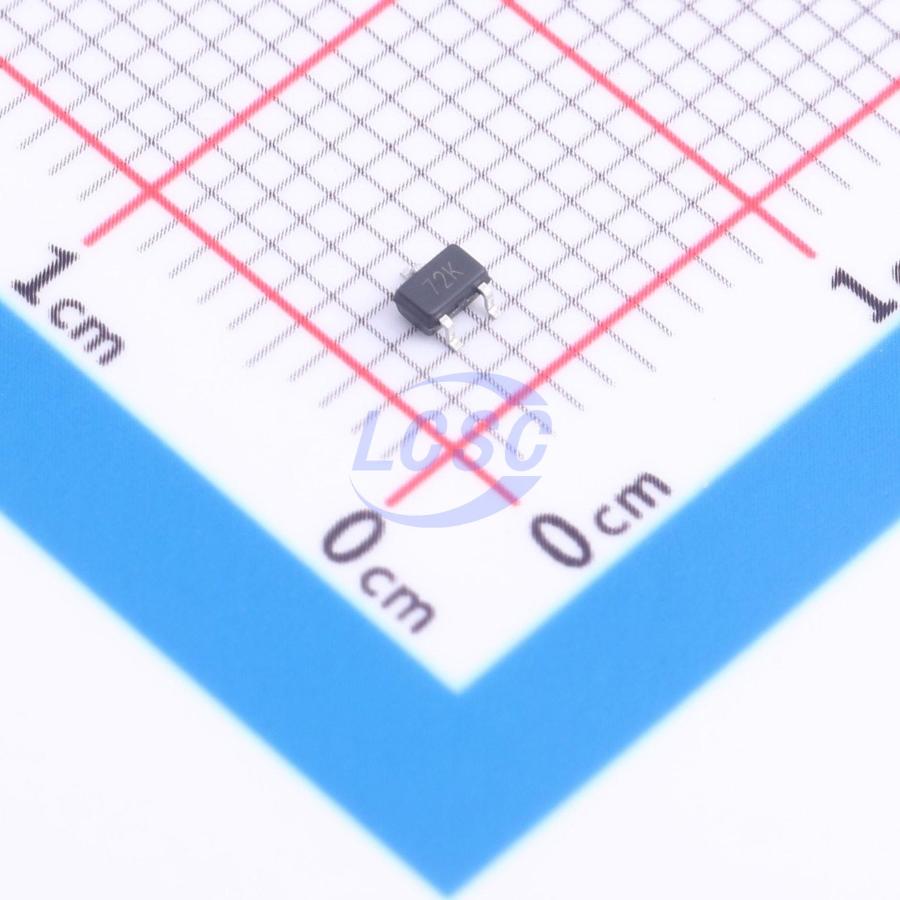

2N7002PW-HXY
60V 115mA 200mW 1.3Ω@10V 1 N-channel N-Channel SOT-323 Single FETs, MOSFETs
SOT-323RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- 2N7002PW-HXY
- Store part #
- C54582427
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C54582427
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.03 | ₹100.30 |
| 100+ | ₹8.07 | ₹807.00 |
| 300+ | ₹7.10 | ₹2,130.00 |
| 3,000+ | ₹5.76 | ₹17,280.00 |
| 6,000+ | ₹5.17 | ₹31,020.00 |
| 9,000+ | ₹4.88 | ₹43,920.00 |
10 × ₹10.03
₹100.30
excl. GST
₹118.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002PW-HXY
₹100.30 for 10 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 115mA
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 200mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 1.3Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The 2N7002PW utilizes advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. The device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
- N-channel MOSFET
Key features
- Drain-source voltage VDS = 60V, drain current ID = 0.115A
- On-resistance RDS(ON) < 3Ω at gate-source voltage VGS = 10V
