MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
HXY MOSFETDatasheet (PDF)

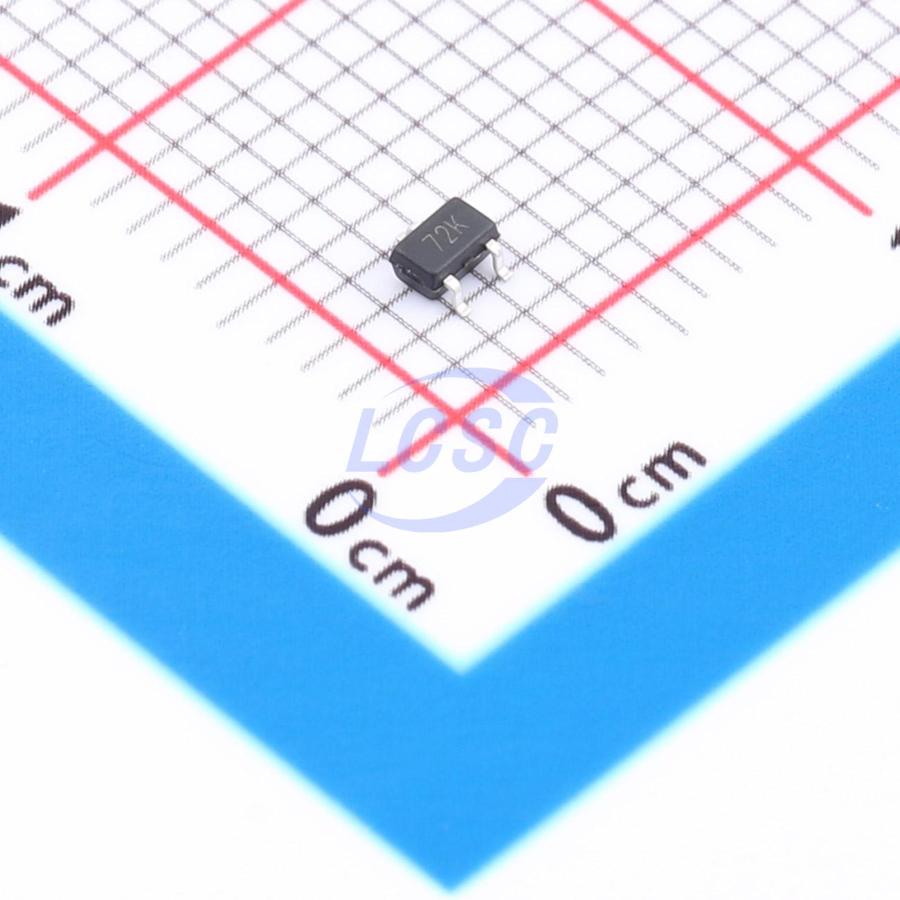

XP262N70023R-G-HXY
60V 115mA 200mW 1.3Ω@10V 1 N-channel N-Channel SOT-323 Single FETs, MOSFETs
SOT-323RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- XP262N70023R-G-HXY
- Store part #
- C54582492
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C54582492
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.12 | ₹95.60 |
| 50+ | ₹15.40 | ₹770.00 |
| 150+ | ₹13.55 | ₹2,032.50 |
| 500+ | ₹12.15 | ₹6,075.00 |
| 3,000+ | ₹9.87 | ₹29,610.00 |
| 6,000+ | ₹9.31 | ₹55,860.00 |
5 × ₹19.12
₹95.60
excl. GST
₹112.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XP262N70023R-G-HXY
₹95.60 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 115mA
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 200mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 1.3Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
XP262N70023R - G utilizes advanced trench technology to deliver excellent on-state resistance (RDS(ON)), low gate charge, and operation down to 4.5V gate voltage. The device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
- N-channel MOSFET
Key features
- Drain-Source Voltage (VDS) = 60V, Drain Current (ID) = 0.115A
- On-Resistance (RDS(ON)) < 3Ω at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HNX138BKWX#C42401220HXY MOSFET · SOT-323-3 | HXY MOSFET | SOT-323-3 | 140 | ₹5.45 · 140 in stock | View |
 | HDMN63D1LW13#C42401245HXY MOSFET · SOT-323 | HXY MOSFET | SOT-323 | 100 | ₹3.90 · 100 in stock | View |
 | HBSS138BKW115#C42401425HXY MOSFET · SOT-323 | HXY MOSFET | SOT-323 | 200 | ₹5.33 · 200 in stock | View |
 | 2N7002PW-HXY#C54582427HXY MOSFET · SOT-323 | HXY MOSFET | SOT-323 | 80 | ₹10.03 · 80 in stock | View |
 | 2N7002KPW-AQ-HXY#C54582491HXY MOSFET · SOT-323 | HXY MOSFET | SOT-323 | 2,990 | ₹5.58 · 2,990 in stock | View |
