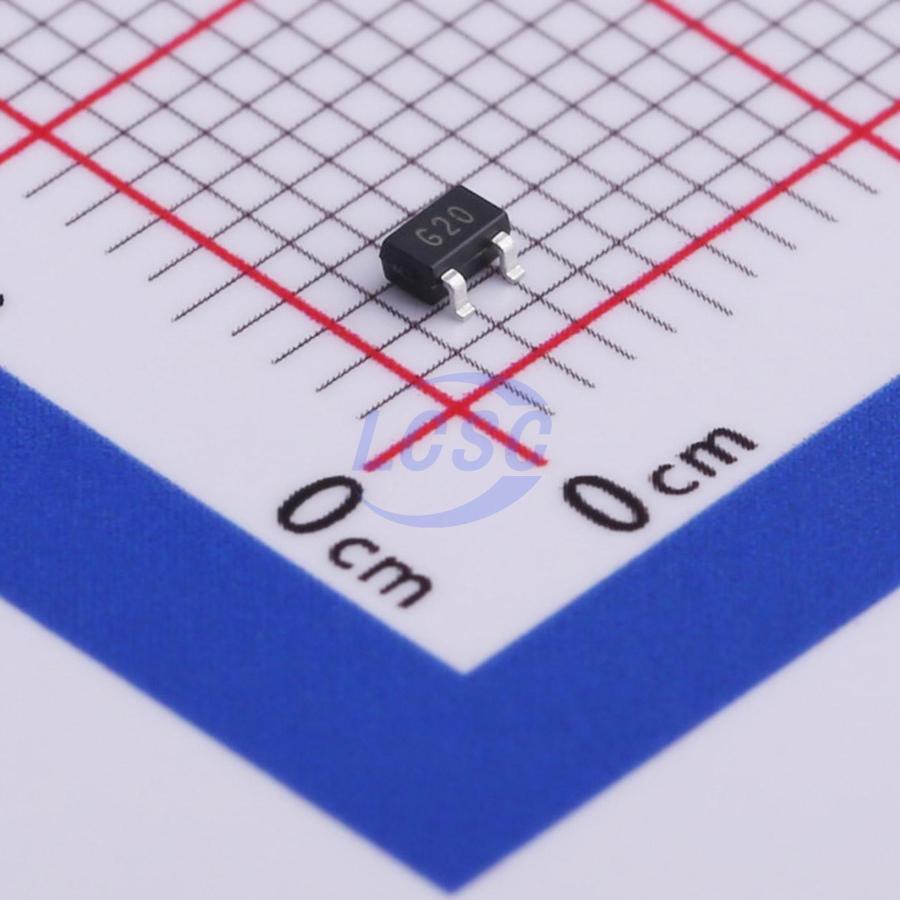

2SK1658
N-Channel 30V 0.1A 0.2W Surface Mount SOT-323
SOT-323ROHS CompliantActive
MOSFET N-CH 30V 0.1A SOT-323
- Manufacturer
- JSCJ
- Manufacturer part #
- 2SK1658
- Store part #
- C504049
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,380 in stock
#C504049
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.56 | ₹91.20 |
| 200+ | ₹3.51 | ₹702.00 |
| 600+ | ₹2.91 | ₹1,746.00 |
| 3,000+ | ₹2.57 | ₹7,710.00 |
| 9,000+ | ₹2.26 | ₹20,340.00 |
| 21,000+ | ₹2.09 | ₹43,890.00 |
20 × ₹4.56
₹91.20
excl. GST
₹107.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2SK1658
₹91.20 for 20 + GST
Specifications
- Output Capacitance(Coss)
- 10pF
- Ciss-Input Capacitance
- 15pF
- Pd - Power Dissipation
- 200mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100mA
- Reverse Transfer Capacitance (Crss)
- 1.5pF
- RDS(on)
- 10Ω@4V
- Number
- 1 N-channel
- Vgs
- ±7V
- Gate Threshold Voltage (Vgs(th))
- 900mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Applications
- Interfacing
- Switching
Key features
- Low on-resistance
- Fast switching speed
- Low voltage drive makes this device ideal for Portable equipment
- Easily designed drive circuits
- Easy to parallel
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ3144KW#C504055JSCJ · SOT-323 | JSCJ | SOT-323 | 2,900 | ₹7.82 · 2,900 in stock | View |
 | 2SK3018#C194460JSCJ · SOT-323 | JSCJ | SOT-323 | 96,680 | ₹4.14 · 96,680 in stock | View |
 | 2N7002KLW#C19269151JSCJ · SOT-323 | JSCJ | SOT-323 | On request | ₹5.78 · 0 in stock | View |
 | 2N7002KW#C504047JSCJ · SOT-323 | JSCJ | SOT-323 | 60,480 | ₹4.15 · 60,480 in stock | View |
 | 2N7002W#C190607JSCJ · SOT-323 | JSCJ | SOT-323 | 2,800 | ₹4.10 · 2,800 in stock | View |
