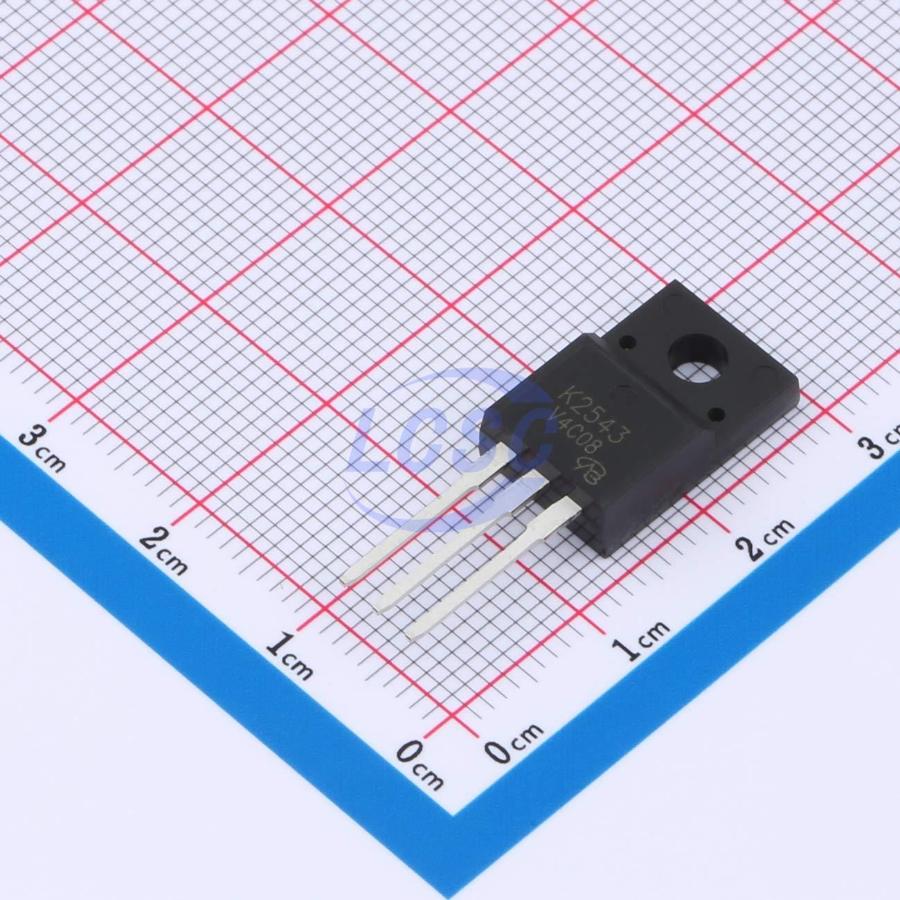

2SK2543-VB
N-Channel 650V 12A Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 12A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK2543-VB
- Store part #
- C20755286
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C20755286
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.68 | ₹146.68 |
| 10+ | ₹122.35 | ₹1,223.50 |
| 50+ | ₹109.09 | ₹5,454.50 |
| 100+ | ₹93.88 | ₹9,388.00 |
| 500+ | ₹87.15 | ₹43,575.00 |
| 1,000+ | ₹84.10 | ₹84,100.00 |
1 × ₹146.68
₹146.68
excl. GST
₹173.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SK2543-VB
₹146.68 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 300pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.6nF
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 650mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.91 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Rₒₙ×Q₉
- Low input capacitance (Cᵢₛₛ)
- Reduced switching and conduction losses
- Ultra low gate charge (Ω₉)
- Avalanche energy rated (UIS)
