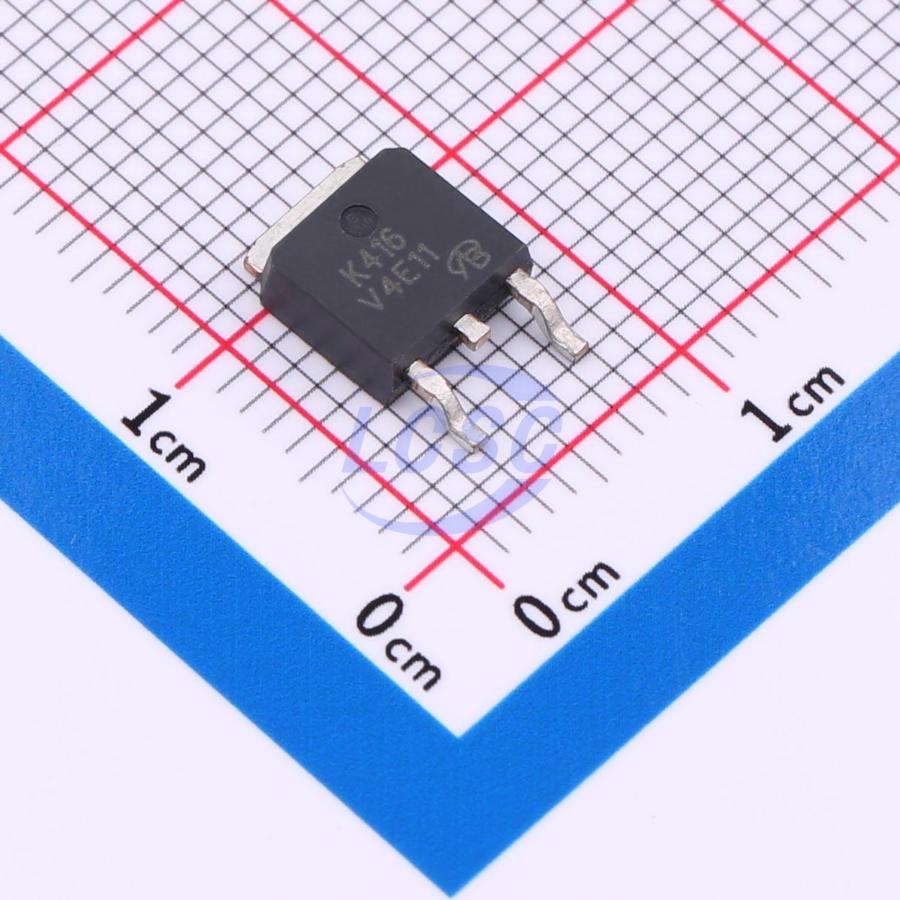

2SK416-VB
N-Channel 60V 35A 2.1W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 35A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK416-VB
- Store part #
- C22389543
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22389543
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.84 | ₹50.84 |
| 10+ | ₹39.91 | ₹399.10 |
| 30+ | ₹35.30 | ₹1,059.00 |
| 100+ | ₹29.41 | ₹2,941.00 |
| 500+ | ₹26.90 | ₹13,450.00 |
| 1,000+ | ₹25.22 | ₹25,220.00 |
1 × ₹50.84
₹50.84
excl. GST
₹59.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SK416-VB
₹50.84 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 281pF
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 2.1W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 35A
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 32mΩ@10V;37mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 46nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.49 g
Overview
Applications
- Power - Secondary Synchronous Rectification - DC/DC Converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK2414-VB#C693200VBsemi Elec · TO-252-2 | VBsemi Elec | TO-252-2 | 1 | ₹56.93 · 1 in stock | View |
 | 40N10 TO252-VB#C19626786VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹107.14 · 35 in stock | View |
 | AM30N10-50D-T1-PF-VB#C29778796VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹102.93 · 20 in stock | View |
 | FDD3690-VB#C29779380VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹102.93 · 15 in stock | View |
 | 30N10-VB#C3040291VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 26 | ₹139.99 · 26 in stock | View |
