TECH PUBLICDatasheet (PDF)

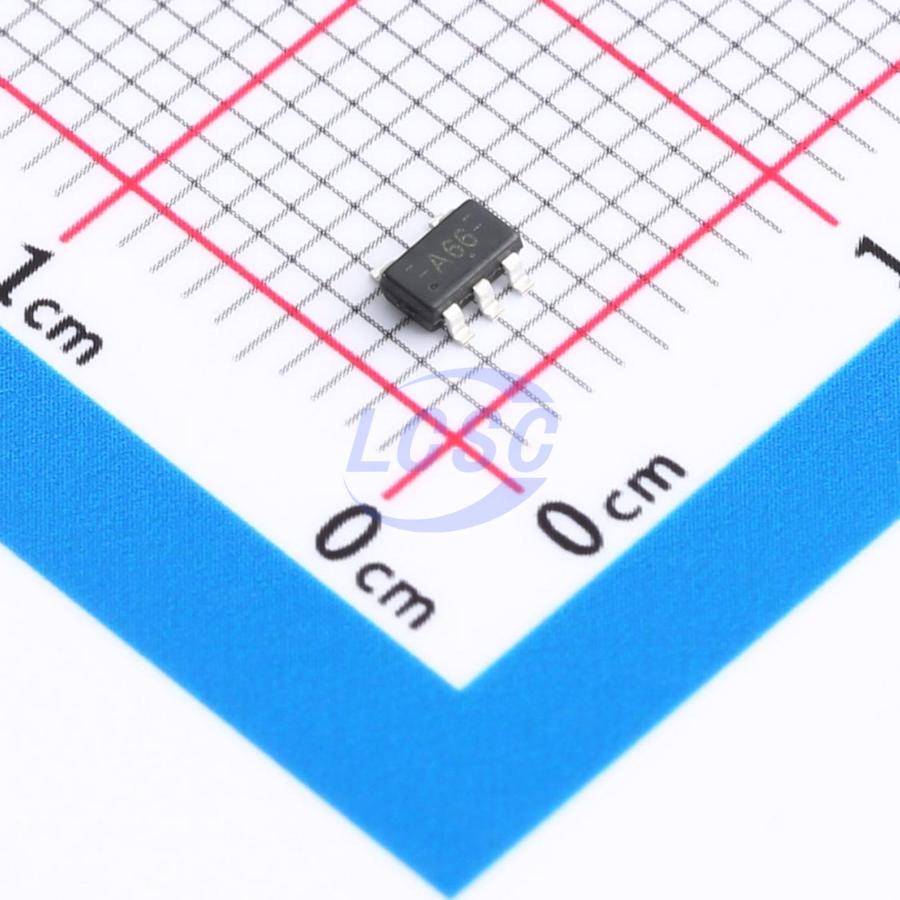

74AHC1G66GV-TP
IC SWITCH 26Ω SOT-23-5
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G66GV-TP
- Store part #
- C46472244
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,530 in stock
#C46472244
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.35 | ₹83.50 |
| 100+ | ₹6.63 | ₹663.00 |
| 300+ | ₹5.77 | ₹1,731.00 |
| 3,000+ | ₹5.12 | ₹15,360.00 |
| 6,000+ | ₹4.60 | ₹27,600.00 |
| 9,000+ | ₹4.34 | ₹39,060.00 |
10 × ₹8.35
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G66GV-TP
₹83.50 for 10 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+125℃
- Number of Channels
- 1
- Ron
- 26Ω
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 1ns
- Con
- 10pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The 74AHC1G66 is an analog switch which transmits signals from pin(Y or Z) to pin (Z or Y) with an active HIGH enable input pin (E). When pin E is LOW, the switch is turned off.
Applications
- Wireless Devices
- Audio and Video Signal Routing
- Portable Computing
- Wearable Devices
- Signal Gating, Chopping, Modulation or Demodulation (Modem)
- Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems
Key features
- Operation Voltage Range: 2.0~5.5V
- Inputs Accept Voltages to 5.5V
- Low power dissipation
- Very low ON-resistance: 26Ω (typ.) at VCC = 3.0V
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPMAX4597DBVR#C47117624TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 890 | ₹20.39 · 890 in stock | View |
 | TPTMUX1102DBVR#C47117643TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 288 | ₹56.81 · 288 in stock | View |
 | TPMAX4594DBVR#C46472241TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,120 | ₹15.76 · 3,120 in stock | View |
