NexperiaDatasheet (PDF)

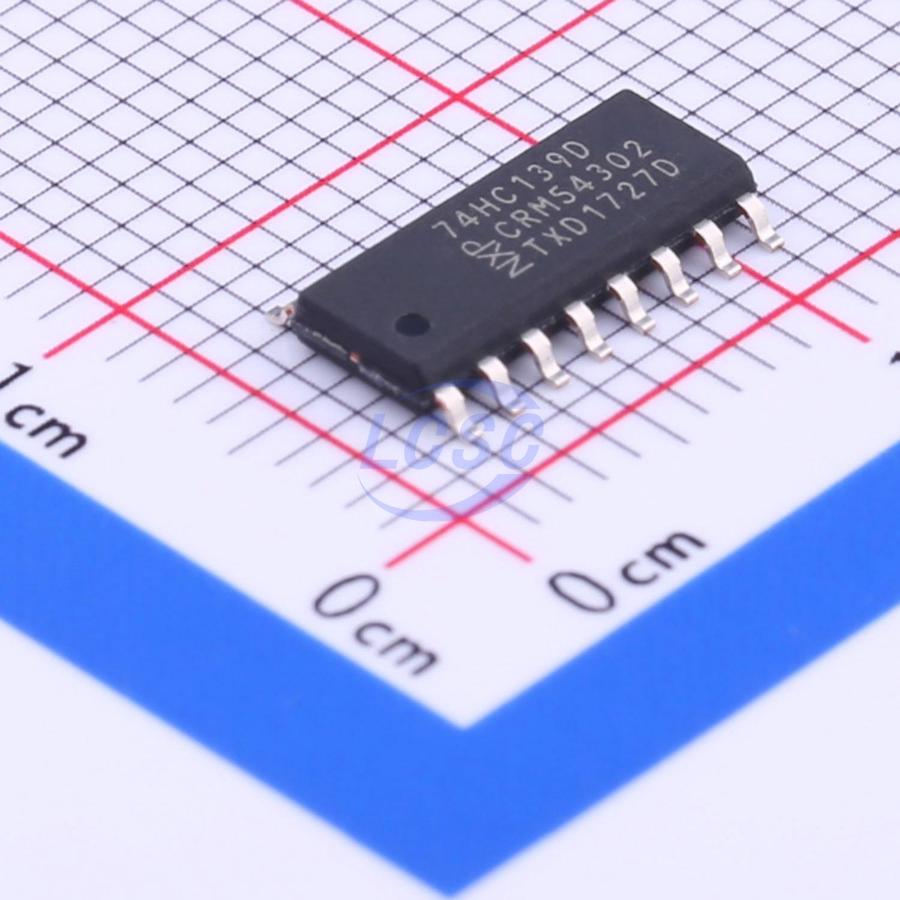

74HC139D,653
2/4 2V~6V 160uA 11ns@6.0V,50pF SOIC-16 Signal Switches, Multiplexers, Decoders RoHS
SOIC-16ROHS3 CompliantActive
Dual 2-to-4 line decoder/demultiplexer
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC139D,653
- Store part #
- C5603
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,518 in stock
#C5603
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.68 | ₹75.68 |
| 10+ | ₹60.24 | ₹602.40 |
| 30+ | ₹53.50 | ₹1,605.00 |
| 100+ | ₹45.23 | ₹4,523.00 |
| 500+ | ₹41.54 | ₹20,770.00 |
| 1,000+ | ₹39.36 | ₹39,360.00 |
1 × ₹75.68
₹75.68
excl. GST
₹89.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC139D,653
₹75.68 for 1 + GST
Specifications
- Type
- Decoder
- Series
- 74HC
- Number of Channels
- 2/4
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 160uA
- Propagation Delay
- 11ns@6.0V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.275 g
Overview
The 74HC139; 74HCT139 decodes two binary weighted address inputs (nA0, nA1) to four mutually exclusive outputs (nY0 to nY3). Each decoder features an enable input (nE). When nE is HIGH all outputs are forced HIGH. The enable input can be used as the data input for a 1-to-4 demultiplexer application. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Input levels: For 74HC139: CMOS level For 74HCT139: TTL level
- Demultiplexing capability
- 2 independent 2-to-4 decoders
- Multifunction capability
- Suitable for memory decoding, data routing or code conversion
- Complies with JEDEC standard no. 7A
- Active LOW mutually exclusive outputs
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS139ADR(LX)#C22384797lingxingic · SOP-16 | lingxingic | SOP-16 | 1,365 | ₹29.01 · 1,365 in stock | View |
 | SN74HC139DR#C132996TI · SOIC-16 | TI | SOIC-16 | 8,335 | ₹78.31 · 8,335 in stock | View |
 | MC74AC139DR2G#C903967onsemi · SOIC-16 | onsemi | SOIC-16 | On request | ₹54.45 · 0 in stock | View |
