onsemiDatasheet (PDF)

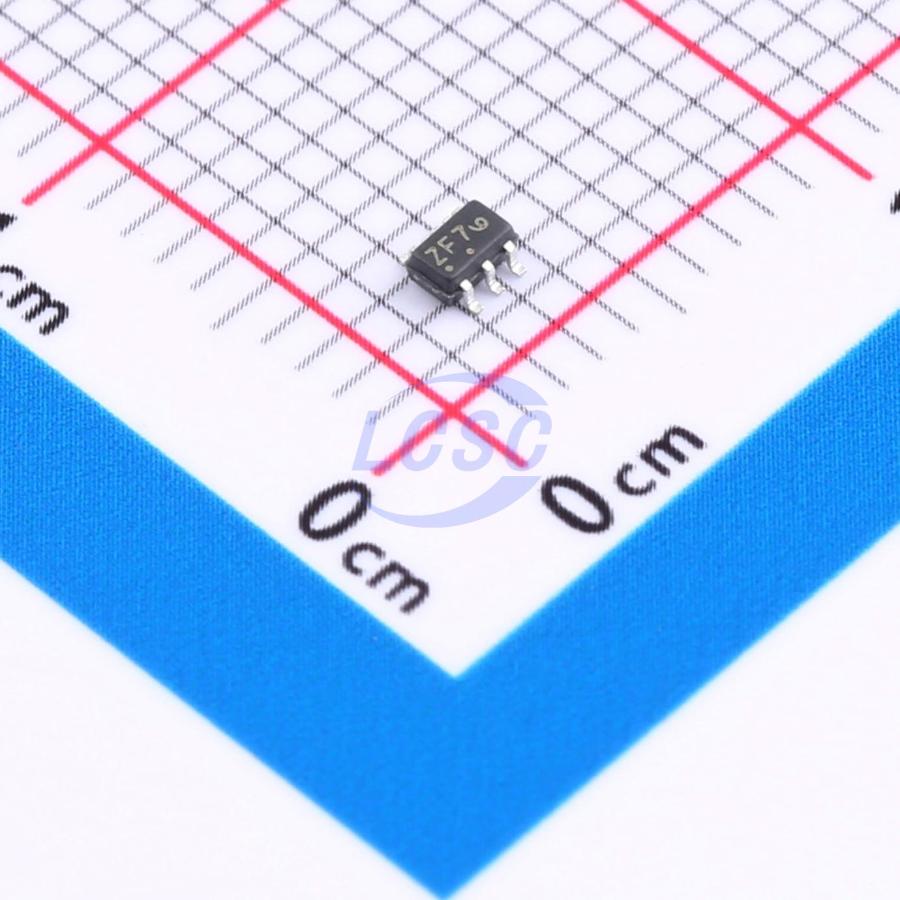

NC7SZ157P6X
2/1 1.65V~5.5V 10uA 3.5ns@5.0V,15pF SC-70-6 Signal Switches, Multiplexers, Decoders RoHS
SC-70-6ROHS3 CompliantActive
TinyLogic UHS 2-Input Non-Inverting Multiplexer
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ157P6X
- Store part #
- C77686
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,800 in stock
#C77686
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.69 | ₹76.90 |
| 100+ | ₹6.13 | ₹613.00 |
| 300+ | ₹5.33 | ₹1,599.00 |
| 3,000+ | ₹4.38 | ₹13,140.00 |
| 6,000+ | ₹3.90 | ₹23,400.00 |
| 9,000+ | ₹3.68 | ₹33,120.00 |
10 × ₹7.69
₹76.90
excl. GST
₹90.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ157P6X
₹76.90 for 10 + GST
Specifications
- Type
- Multiplexer
- Number of Channels
- 2/1
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 10uA
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 3.5ns@5.0V,15pF
- Function
- Output enable high-impedance;Level shifting;Power-off protection
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NC7SZ157 is a single, high performance, 2-to-1 CMOS non-inverting multiplexer from the UltraHigh Speed series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC operating range. The inputs and outputs are high impedance when VCC is 0V. Inputs tolerate voltages up to 5.5V independent of VCC operating range.
Key features
- Broad VCC Operating Range: 1.65V to 5.5V
- Ultra High-Speed
- Power Down High-Impedance Inputs/Outputs
- Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
- Proprietary Noise/EMI Reduction Circuitry
- Ultra-Small MicroPak™ Packages
- Space-Saving SC70 Package
