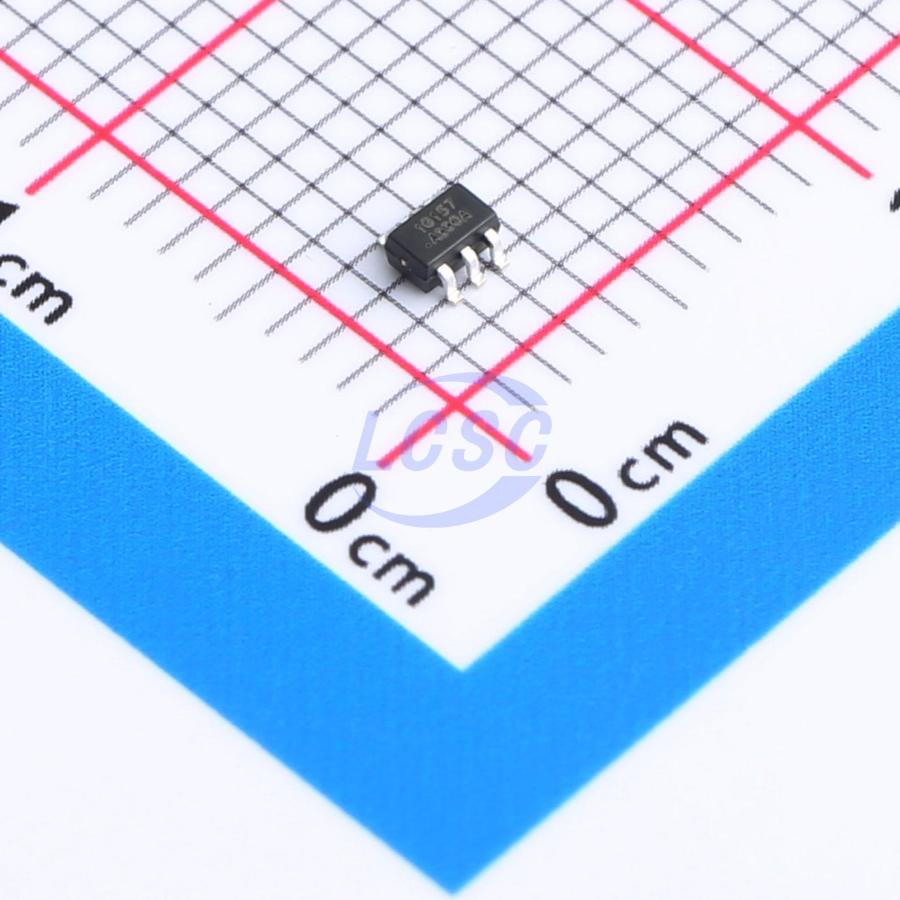

RUNIC

RS1G157XC6

2/1 1.65V~5.5V 10uA 6ns@5V,50pF SC-70-6 Signal Switches, Multiplexers, Decoders

SC-70-6RoHSActive

Single 2-Input Multiplexer

Manufacturer: RUNIC
Manufacturer part #: RS1G157XC6
Store part #: C20611889
Package / case: SC-70-6
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,975 in stock

#C20611889

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹15.66	₹78.30
50+	₹11.71	₹585.50
150+	₹9.72	₹1,458.00
500+	₹8.24	₹4,120.00

Quantity (min 5, multiples of 5)

5 × ₹15.66

₹78.30

excl. GST

₹92.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G157XC6

₹78.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Multiplexer
Number of Channels: 2/1
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Quiescent Current: 10uA
Current - Output High(IOH): 32mA
Propagation Delay: 6ns@5V,50pF
Function: Power-off protection;Hot-swap protection
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.018 g

Overview

The single 2-input multiplexer is designed for 1.65V to 5.5V VCC operation. It selects data from two data inputs (I0 and I1) under control of a common data select input (S). The state of the common data select input determines the particular register from which the data comes. The output (Y) presents the selected data in the true (non-inverted) form. It is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. This device is available in Green SOT23-6 and SOT363(SC70-6) packages. It operates over an ambient temperature range of -40°C to +125°C.

Applications

Network Switch
Telecom Infrastructure
Servers
I/O Expanders

Key features

Operating Voltage Range: 1.65V to 5.5V
Low Power Consumption: 10μA (Max)
Operating Temperature Range: -40°C to +125°C
Inputs Accept Voltage to 5.5V
High Output Drive: ±24mA at VCC = 3.0V
Ioff Supports Live Insertion, Partial-Power Down Mode, and Back-Drive Protection
Micro SIZE PACKAGES: SOT23-6, SOT363(SC70-6)
