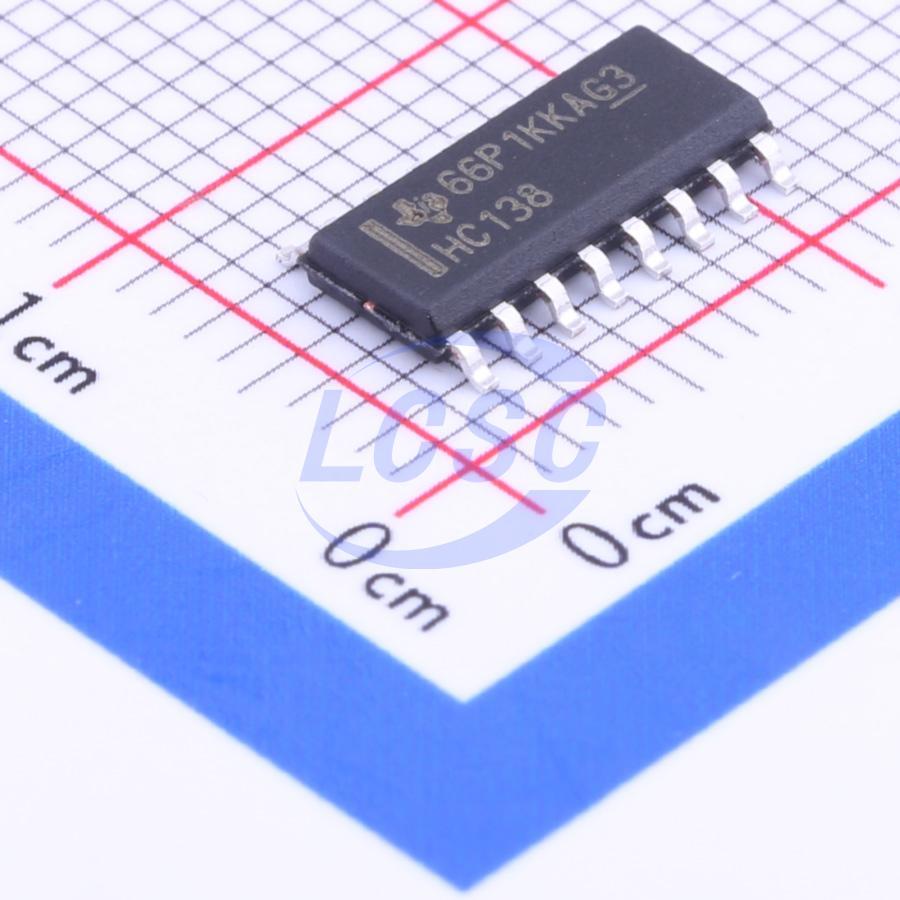

SN74HC138DR

The 'HC138 devices are designed to be used in high- performance memory- decoding or data- routing applications requiring very short propagation delay times. In high- performance memory systems, these decoders can be used to minimize the effects of system decoding. When employed with high- speed memories utilizing a fast enable circuit, the delay times of these decoders and the enable time of the memory are usually less than the typical access time of the memory. This means that the effective system delay introduced by the decoders is negligible. The conditions at the binary- select inputs at the three enable inputs select one of eight output lines. Two active- low and one active- high enable inputs reduce the need for external gates or inverters when expanding. A 24- line decoder can be implemented without external inverters, and a 32- line decoder requires only one inverter. An enable input can be used as a data input for demultiplexing applications.

Applications

• High-performance memory decoding
• Data routing systems
• High-speed data transfer systems
• Demultiplexing applications
• Multi-line expansion decoding applications

Key features

• Wide Operating Voltage Range of 2 V to 6 V
• Outputs Can Drive Up To 10 LSTTL Loads
• Low Power Consumption, 80- μA Max Icc
• Typical tpₒ = 15 ns
• ±4 mA Output Drive at 5 V
• Low Input Current of 1 μA Max
• Incorporate Three Enable Inputs to Simplify Cascading and/or Data Reception
