JSMSEMI

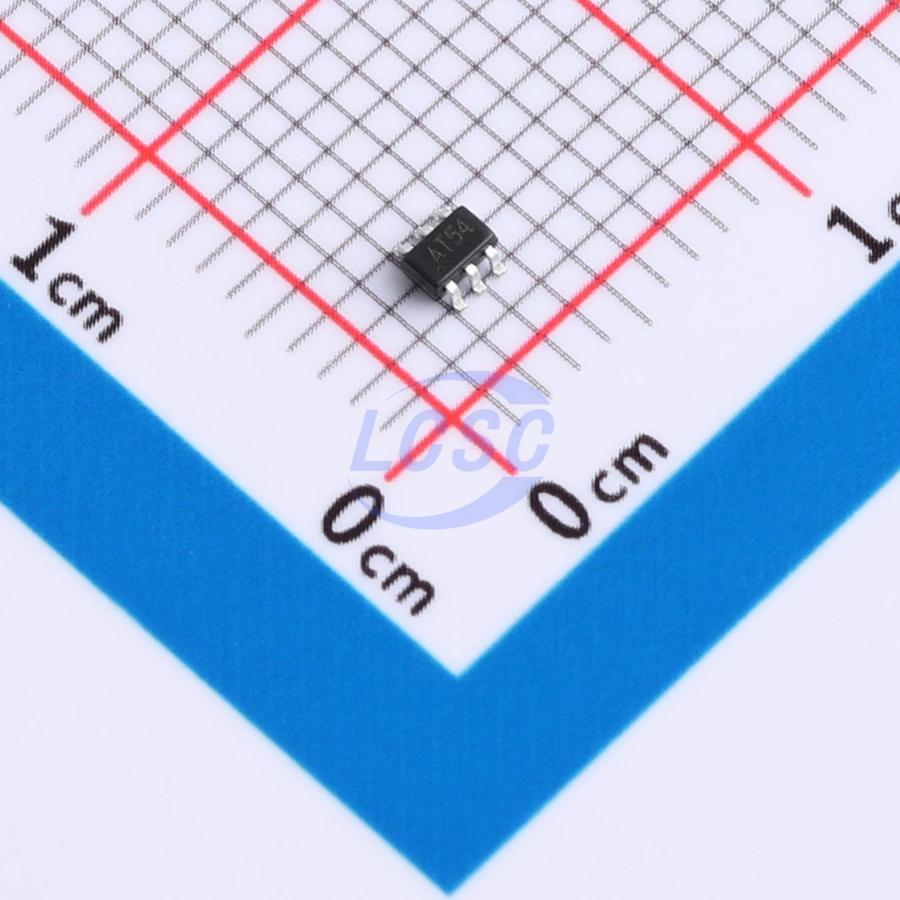

74LVC1G157GW-JSM

2/1 1.65V~5.5V 4uA 13.5ns@5.5V,50pF Level shifting SOT-363 Signal Switches, Multiplexers, Decoders RoHS

SOT-363ROHS CompliantActive

Single 2-input Multiplexer

Manufacturer: JSMSEMI
Manufacturer part #: 74LVC1G157GW-JSM
Store part #: C49006656
Package / case: SOT-363
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,570 in stock

#C49006656

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹8.85	₹88.50
100+	₹6.97	₹697.00
300+	₹6.03	₹1,809.00
3,000+	₹5.45	₹16,350.00
6,000+	₹4.88	₹29,280.00
9,000+	₹4.60	₹41,400.00

Quantity (min 10, multiples of 10)

10 × ₹8.85

₹88.50

excl. GST

₹104.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G157GW-JSM

₹88.50 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Multiplexer
Series: 74LVC
Number of Channels: 2/1
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Quiescent Current: 4uA
Current - Output High(IOH): 24mA
Propagation Delay: 13.5ns@5.5V,50pF
Function: Level shifting
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

The 74LVC1G157GW-JSM is a single 2-input multiplexer that selects data from two data inputs (I0 and I1) under the control of a common data select input (S). The state of the common data select input determines which specific register the data comes from. The output (Y) presents the selected data in true (non-inverting) form. The inputs can be driven by 3.3V or 5V devices, allowing this device to be used as a level translator in mixed 3.3V and 5V applications.
