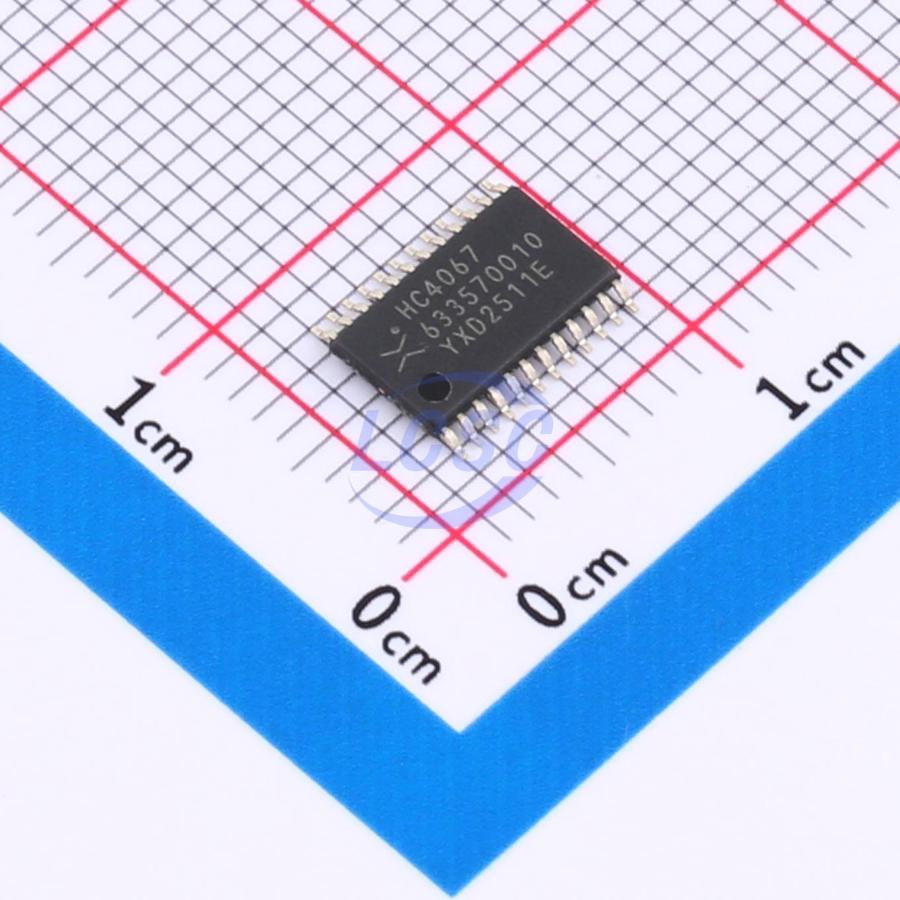

74HC4067PW,118

The 74HC4067; 74HCT4067 is a single-pole 16-throw analog switch (SP16T) suitable for use in analog or digital 16:1 multiplexer/demultiplexer applications. The switch features four digital select inputs (S0, S1, S2 and S3), sixteen independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

• Analog multiplexing and demultiplexing
• Digital multiplexing and demultiplexing
• Signal gating

Key features

• Wide supply voltage range from 2.0 V to 10.0 V
• Input levels S0, S1, S2, S3 and E inputs: For 74HC4067: CMOS level; For 74HCT4067: TTL level
• CMOS low power dissipation
• High noise immunity
• Low ON resistance: 80 Ω (typical) at VCC = 4.5 V; 70 Ω (typical) at VCC = 6.0 V; 60 Ω (typical) at VCC = 9.0 V
• Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V), JESD7A (2.0 V to 6.0 V)
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
• ESD protection: HBM JESD22-A114F exceeds 2000 V; MM JESD22-A115-A exceeds 200 V; CDM JESD22-C101E exceeds 1000 V
• Multiple package options
• Specified from -40 °C to +85 °C and -40 °C to +125 °C
• Typical ‘break before make’ built-in
