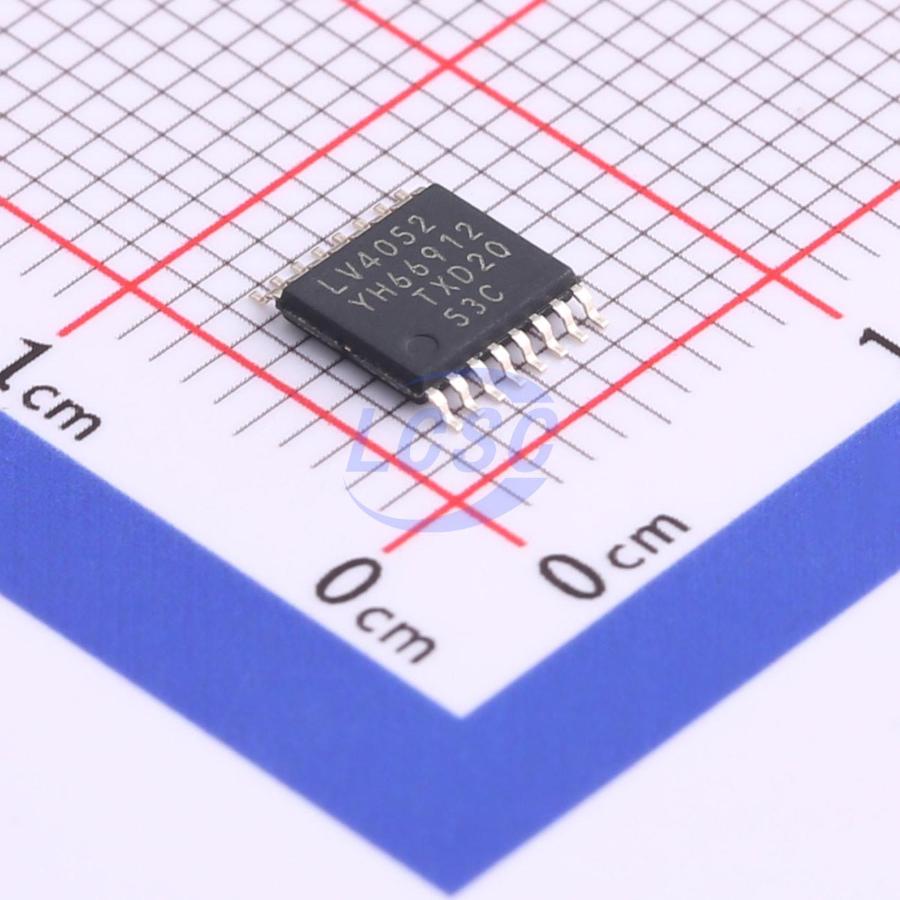

74LV4052PW,118

The 74LV4052 is a dual single-pole quad-throw analog switch suitable for use in 4:1 multiplexer/ demultiplexer applications. Each switch features four independent inputs/outputs (nY0, nY1, nY2 and nY3) and a common input/output (nZ). A digital enable input (E) and two digital select inputs (S0, S1) are common to both switches. When E is HIGH, the switches are turned off. Digital inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess VCC.

Applications

• 4:1 multiplexer/demultiplexer applications

Key features

• Wide supply voltage range from 1.0 to 6.0 V
• CMOS low power dissipation
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
• Optimized for low-voltage applications: 1.0 V to 6.0 V
• Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V
• Low ON resistance:
• 145 Ω (typical) at VCC - VEE = 2.0 V
• 90 Ω (typical) at VCC - VEE = 3.0 V
• 60 Ω (typical) at VCC - VEE = 4.5 V
• Logic level translation:
• To enable 2 V logic to communicate with ± 3 V analog signals
• Typical ‘break before make’ built in
• Complies with JEDEC standards: JESD8 - 7 (1.65 V to 1.95 V), JESD8 - 5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V
• CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
• Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
