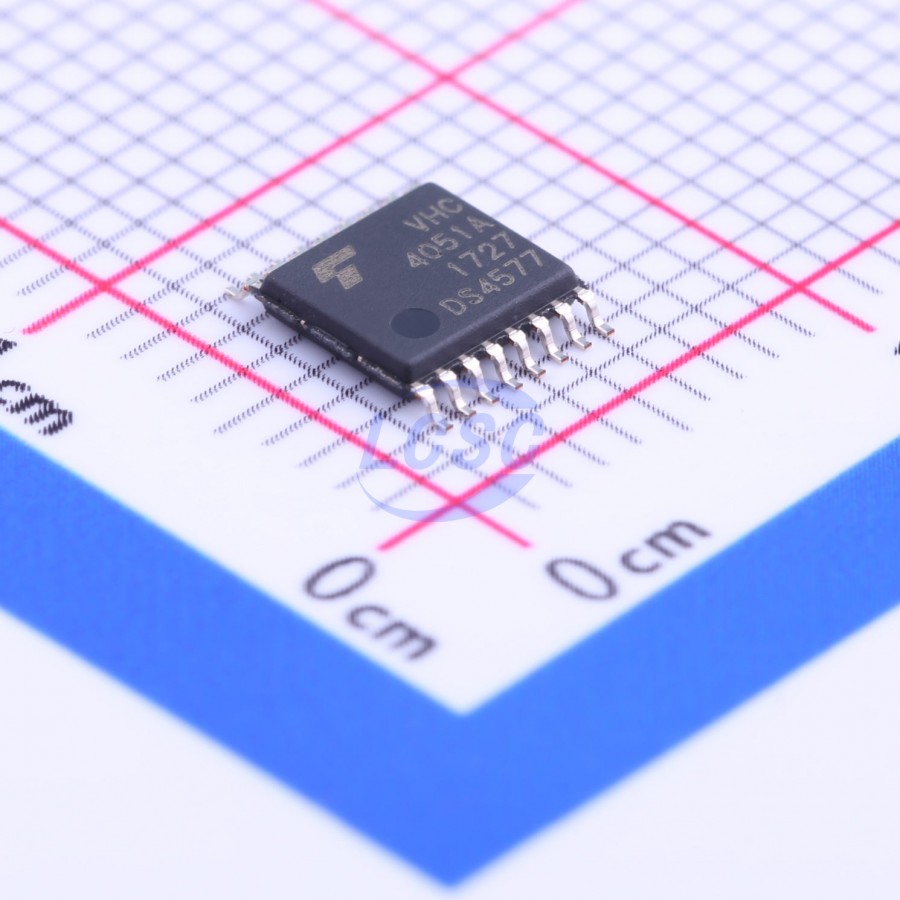

74VHC4051AFT

74VHC4051AFT: 8-Channel Analog Multiplexer/Demultiplexer 74VHC4052AFT: Dual 4-Channel Analog Multiplexer/Demultiplexer 74VHC4053AFT: Triple 2-Channel Analog Multiplexer/Demultiplexer The 74VHC4051AFT, 74VHC4052AFT and 74VHC4053AFT are high-speed, low-voltage drive analog multiplexer/demultiplexers using silicon gate CMOS technology. In 3 V and 5V systems these can achieve highspeed operation with the low power dissipation that is a feature of CMOS. The 74VHC4051AFT, 74VHC4052AFT and 74VHC4053AFT offer analog/digital signal selection as well as mixed signals. The 74VHC4051AFT has an 8-channel configuration, the 74VHC4052AFT has an 4-channel ×2 configuration, and the 74VHC4053AFT has a 2-channel ×3 configuration. The switches for each channel are turned ON by the control pin digital signals. All control inputs are equipped with a newly developed input protection circuit that avoids the need for a diode on the plus side (forward side from the input to the VCC). As a result, for example, 5.5 V signals can be permitted on the inputs even when the power supply voltage to the circuits is off. As a result of this input power protection, the 74VHC4051AFT, 74VHC4052AFT and 74VHC4053AFT can be used in a variety of applications, including in the system which has two power supplies, and in battery backup circuits.

Key features

• AEC-Q100 (Rev. H)
• Wide operating temperature range: Topr = -40 to 125 °C
• Low ON-resistance: RON = 45 Ω (typ.) (VCC = 3.0 V), RON = 24 Ω (typ.) (VCC = 4.5 V)
• Low power dissipation: ICC = 2.0 μA (max) (Ta = 25 °C)
• High noise immunity: VIL = 0.8 V (max) VCC = 3.0 V, VIH = 2.0 V (min) VCC = 3.0 V
• Power down protection is provided on all control inputs.
