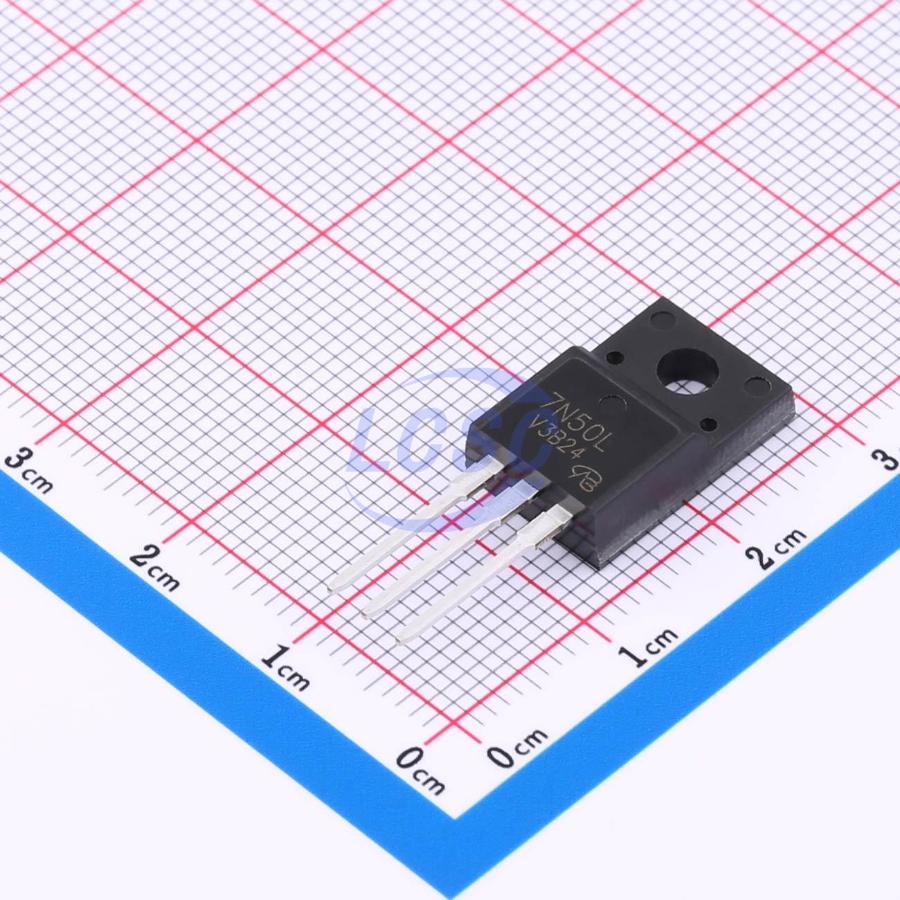

7N50L-TF1-T-VB
N-Channel 650V 12A Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 12A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 7N50L-TF1-T-VB
- Store part #
- C18794917
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C18794917
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.45 | ₹143.45 |
| 10+ | ₹119.65 | ₹1,196.50 |
| 50+ | ₹106.69 | ₹5,334.50 |
| 100+ | ₹91.82 | ₹9,182.00 |
| 500+ | ₹85.44 | ₹42,720.00 |
| 1,000+ | ₹82.46 | ₹82,460.00 |
1 × ₹143.45
₹143.45
excl. GST
₹169.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
7N50L-TF1-T-VB
₹143.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 300pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.6nF
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 10Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.755 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Rₒₙ×Q₉
- Low input capacitance (Cᵢₛₛ)
- Reduced switching and conduction losses
- Ultra low gate charge (Ω₉)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 6R600E6 TO220F-VB#C19190253VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 9 | ₹141.79 · 9 in stock | View |
 | FK10KM-9-VB#C19626820VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 40 | ₹129.15 · 40 in stock | View |
 | TK11A65D-VB#C19632059VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 72 | ₹141.79 · 72 in stock | View |
 | RU6H10P-VB#C19632241VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹135.91 · 20 in stock | View |
 | TSF10N60M-VB#C19632263VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹135.91 · 20 in stock | View |
