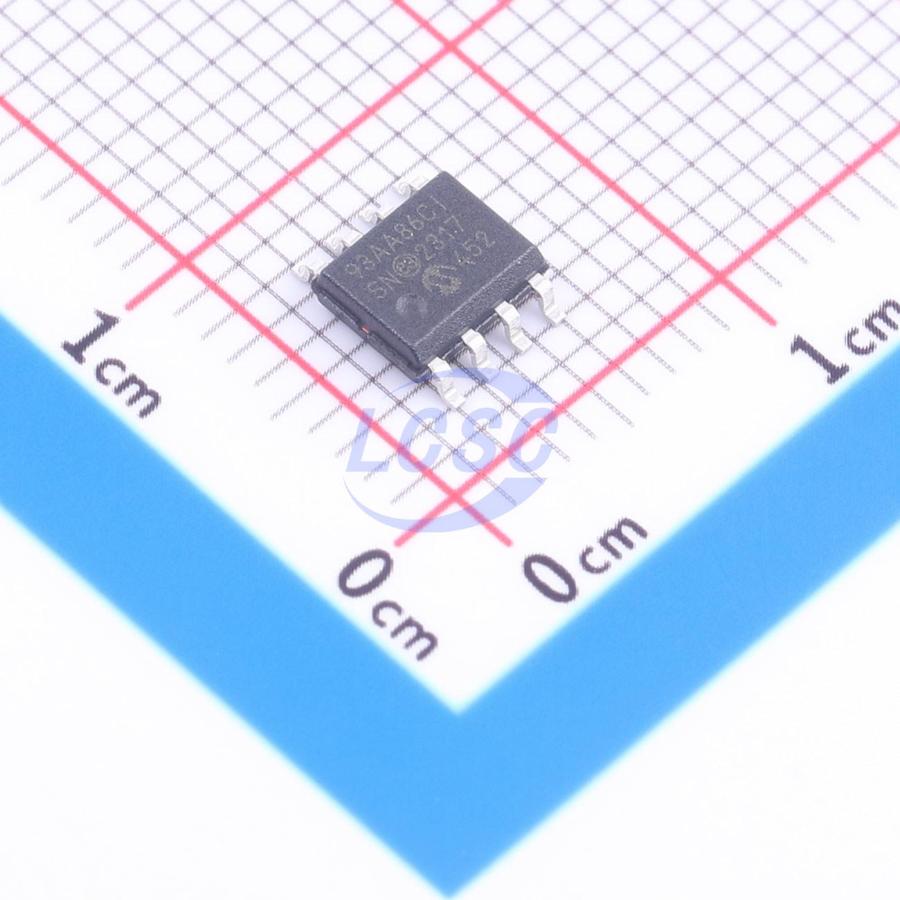

93AA86CT-I/SN
16Kbit 3MHz SPI SOIC-8 Memory RoHS
16-Kbit Microwire Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C615862
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.04 | ₹150.04 |
| 10+ | ₹146.79 | ₹1,467.90 |
| 30+ | ₹144.41 | ₹4,332.30 |
| 100+ | ₹142.24 | ₹14,224.00 |
1 × ₹150.04
₹150.04
excl. GST
₹177.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
93AA86CT-I/SN
₹150.04 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Power-down/Power-up protection circuit
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 3MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.65 g
Overview
The 93XX86A/B/C devices are 16-Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93XX86C are dependent upon external logic levels driving the ORG pin to set word size. The 93XX86A devices provide dedicated 8-bit memory organization, while the 93XX86B devices provide dedicated 16-bit memory organization. A Program Enable (PE) pin allows the user to write-protect the entire memory array. Advanced CMOS technology makes these devices ideal for low-power, nonvolatile memory applications.
Key features
- Low-Power CMOS Technology
- ORG Pin to Select Word Size for ‘86C' Version: 2048x8-bit Organization 'A' Devices (no ORG), 1024x16-bit Organization 'B' Devices (no ORG)
- Program Enable Pin to Write-Protect the Entire Array (86C' version only)
- Self-timed Erase/Write Cycles (including Auto-Erase)
- Automatic Erase All (ERAL) before Write All (WRAL)
- Power-On/Off Data Protection Circuitry
- Industry Standard Three-Wire Serial I/O
- Device Status Signal (Ready/Busy)
- Sequential Read Function
- High Reliability: Endurance: 1,000,000 erase/write cycles, Data Retention: >200 years, ESD protection: >4000V
- RoHS Compliant
- Temperature Ranges Supported: Industrial (I): -40℃ to +85℃, Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CAT93C86VI-GT3#C238493onsemi · SOIC-8 | onsemi | SOIC-8 | 5 | ₹63.45 · 5 in stock | View |
| BR93G86FJ-3AGTE2#C2061986ROHM · SOIC-8 | ROHM | SOIC-8 | 30 | ₹53.67 · 30 in stock | View | |
 | CAT93C86BVI-GT3#C890475onsemi · SOIC-8 | onsemi | SOIC-8 | 69 | ₹81.99 · 69 in stock | View |
 | 93AA86C-I/SN#C150805MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | On request | ₹94.45 · 0 in stock | View |
| 93AA86AT-I/SN#C2063097MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | On request | ₹74.90 · 0 in stock | View | |
