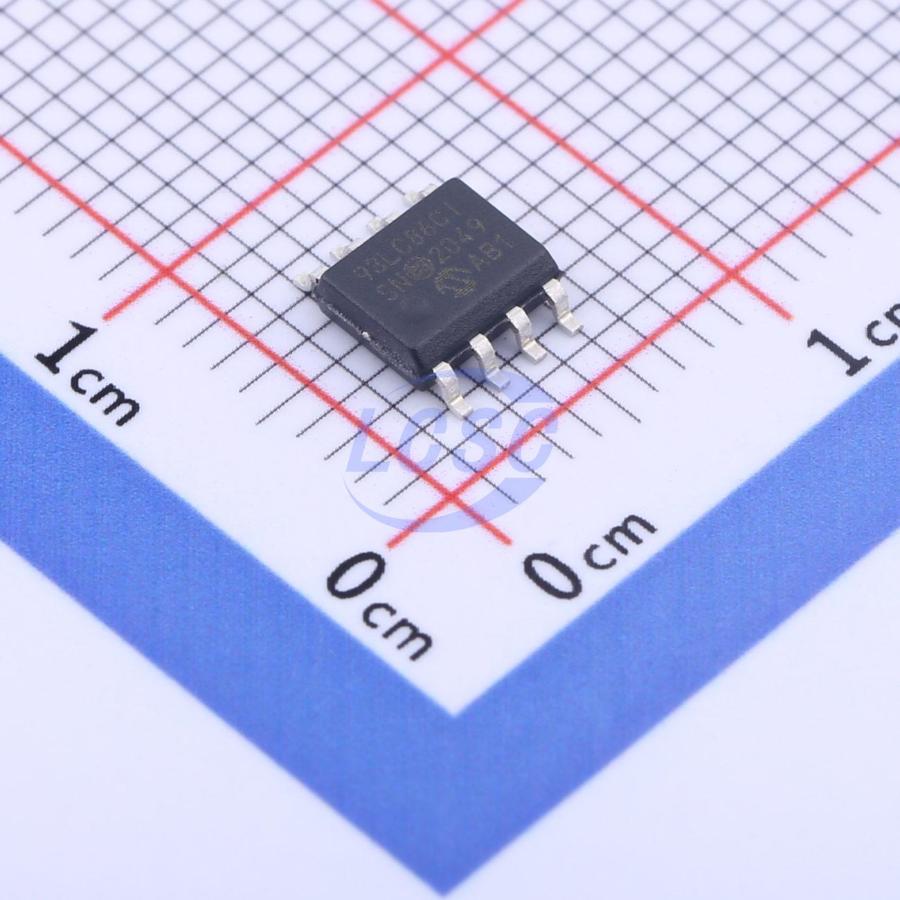

93LC86CT-I/SN
16Kbit 3MHz SPI SOIC-8 Memory RoHS
16K Microwire Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,215 in stock
#C2061401
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.57 | ₹92.57 |
| 10+ | ₹74.33 | ₹743.30 |
| 30+ | ₹65.41 | ₹1,962.30 |
| 100+ | ₹56.28 | ₹5,628.00 |
| 500+ | ₹51.07 | ₹25,535.00 |
| 1,000+ | ₹48.25 | ₹48,250.00 |
1 × ₹92.57
₹92.57
excl. GST
₹109.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
93LC86CT-I/SN
₹92.57 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Power-down/Power-up protection circuit
- Memory Size
- 16Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 3MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
The 93XX86A/B/C devices are 16K bit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93XX86C are dependent upon external logic levels driving the ORG pin to set word size. The 93XX86A devices provide dedicated 8-bit memory organization, while the 93XX86B devices provide dedicated 16-bit memory organization. A Program Enable (PE) pin allows the user to write-protect the entire memory array. Advanced CMOS technology makes these devices ideal for low-power, nonvolatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN/TDFN and 8-lead TSSOP. All packages are Pb-free (Matte Tin) finish.
Key features
- Low-Power CMOS Technology
- ORG Pin to Select Word Size for ‘86C' Version: 2048 x 8-bit Organization ‘A' Devices (no ORG), 1024 x 16-bit Organization ‘B' Devices (no ORG)
- Program Enable Pin to Write-Protect the Entire Array (86C' version only)
- Self-timed Erase/Write Cycles (including Auto-Erase)
- Automatic Erase All (ERAL) before Write All (WRAL)
- Power-On/Off Data Protection Circuitry
- Industry Standard 3-Wire Serial I/O
- Device Status Signal (Ready/Busy)
- Sequential Read Function
- 1,000,000 E/W Cycles
- Data Retention > 200 Years
- Pb-free and RoHS Compliant
- Temperature Ranges Supported: Industrial (I) -40℃ to +85℃, Automotive (E) -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 93LC86B-I/SN#C1350246MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1 | ₹101.75 · 1 in stock | View |
 | 93LC86BT-I/SN#C2061392MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 9 | ₹139.11 · 9 in stock | View |
| 93LC86C-E/SN#C1350227MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1 | ₹139.75 · 1 in stock | View | |
 | 93LC86A-I/SN#C1350623MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 100 | ₹274.67 · 100 in stock | View |
 | 93LC86-I/SN#C122540MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 36 | ₹332.47 · 36 in stock | View |
