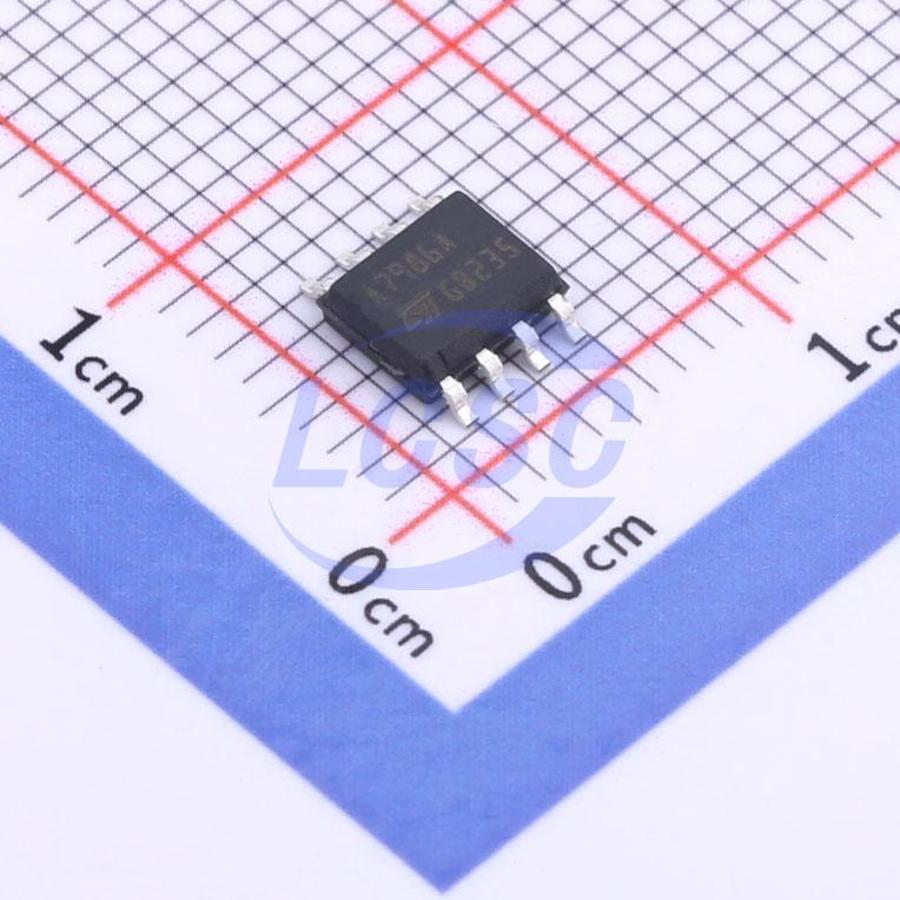

A7986A
250kHz Step-down type Adjustable 3A 600mV~38V HSOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
HSOP-8-EPROHS3 CompliantDiscontinued
3A step-down switching voltage regulator for automotive applications
- Manufacturer
- ST
- Manufacturer part #
- A7986A
- Store part #
- C1355504
- Package / case
- HSOP-8-EP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C1355504
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹511.37 | ₹511.37 |
| 10+ | ₹433.22 | ₹4,332.20 |
| 30+ | ₹386.85 | ₹11,605.50 |
| 100+ | ₹340.05 | ₹34,005.00 |
| 500+ | ₹318.37 | ₹1,59,185.00 |
| 1,000+ | ₹308.71 | ₹3,08,710.00 |
1 × ₹511.37
₹511.37
excl. GST
₹603.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
A7986A
₹511.37 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 250kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Frequency synchronization;External compensation;Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~38V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Output Voltage
- 600mV~38V
- Quiescent Current
- 2.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The A7986A is a step-down switching regulator with a 3.7 A (min.) current limited embedded power MOSFET, so it is able to deliver up to 3 A current to the load depending on the application conditions. The input voltage can range from 4.5 V to 38 V; while the output voltage can be set starting from 0.6 V to VIN. Requiring a minimum set of external components, the device includes an internal 250 kHz switching frequency oscillator that can be externally adjusted up to 1 MHz. The HSOP8 package with exposed pad allows the reduction of Rth(JA) down to 40 °C/W.
Applications
- Dedicated to automotive applications
- Automotive LED driving
Key features
- AEC-Q100 qualified
- 3 A DC output current
- 4.5 V to 38 V input voltage
- Output voltage adjustable from 0.6 V
- 250 kHz switching frequency, programmable up to 1 MHz
- Internal soft-start and enable
- Low dropout operation: 100% duty cycle
- Voltage feed-forward
- Zero load current operation
- Overcurrent and thermal protection
- HSOP8 package
