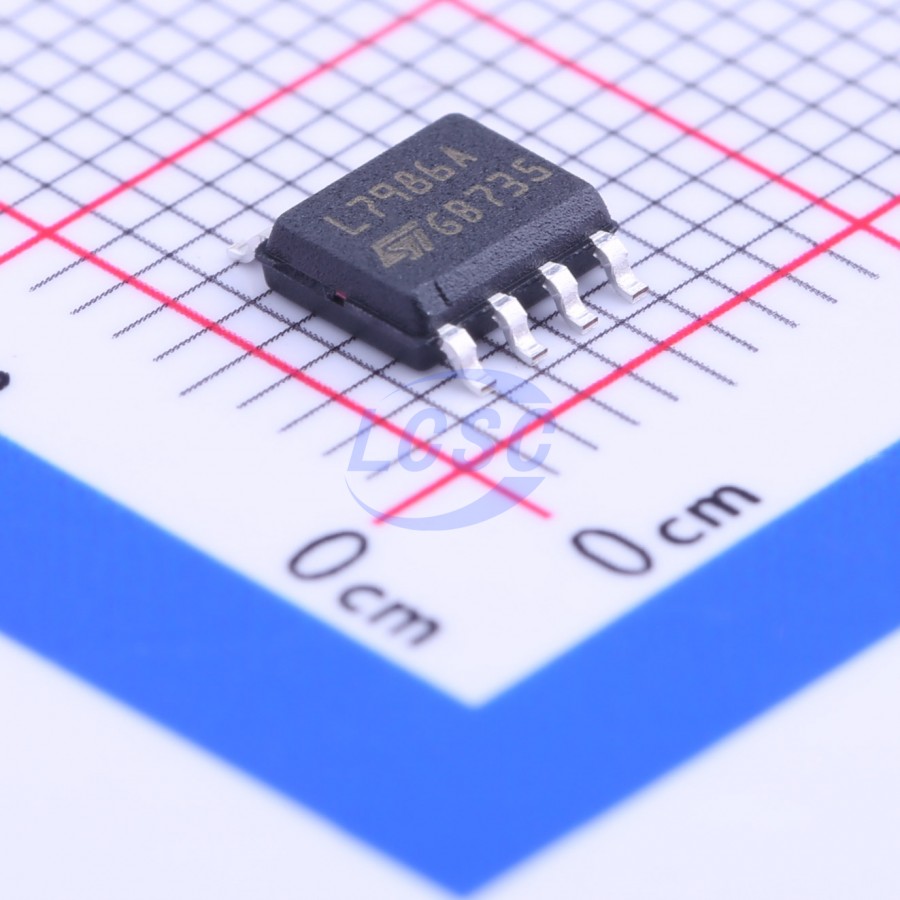

L7986ATR
1MHz Step-down type Adjustable 600mV~38V 3A SOIC-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8-EPROHS3 CompliantActive
3 A step-down switching regulator
- Manufacturer
- ST
- Manufacturer part #
- L7986ATR
- Store part #
- C157370
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,798 in stock
#C157370
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹324.98 | ₹324.98 |
| 10+ | ₹275.40 | ₹2,754.00 |
| 30+ | ₹244.50 | ₹7,335.00 |
| 100+ | ₹212.74 | ₹21,274.00 |
| 500+ | ₹181.86 | ₹90,930.00 |
| 1,000+ | ₹175.55 | ₹1,75,550.00 |
1 × ₹324.98
₹324.98
excl. GST
₹383.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L7986ATR
₹324.98 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Frequency synchronization;External compensation;Overcurrent Protection;Cycle-by-cycle current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~38V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~38V
- Output Current
- 3A
- Quiescent Current
- 2.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.113 g
Overview
The L7986/A is a step-down switching regulator with a 3.7 A (minimum) current limited embedded power MOSFET, so it is able to deliver up to 3 A current to the load depending on the application conditions. The input voltage can range from 4.5 V to 38 V, while the output voltage can be set starting from 0.6 V to VIN. Requiring a minimum set of external components, the device includes an internal 250 kHz switching frequency oscillator that can be externally adjusted up to 1 MHz. The QFN and the HSOP packages with exposed pad allow reducing the RthJA down to 60 °C/W and 40 °C/W respectively.
Applications
- Consumer: STB, DVD, DVD recorder, car audio, LCD TV and monitors
- Industrial: PLD, PLA, FPGA, chargers
- Networking: XDSL, modems, DC - DC modules
- Computer: optical storage, hard disk drive, printers, audio/graphic cards
- LED driving
Key features
- 3 A DC output current
- 4.5 V to 38 V input voltage
- Output voltage adjustable from 0.6 V
- 250 kHz switching frequency, programmable up to 1 MHz
- Internal soft-start and enable
- Low dropout operation: 100% duty cycle
- Voltage feed-forward
- Zero load current operation
- Overcurrent and thermal protection
- VFQFPN 3×3 - 10L and HSOP8 package
