ADIDatasheet (PDF)

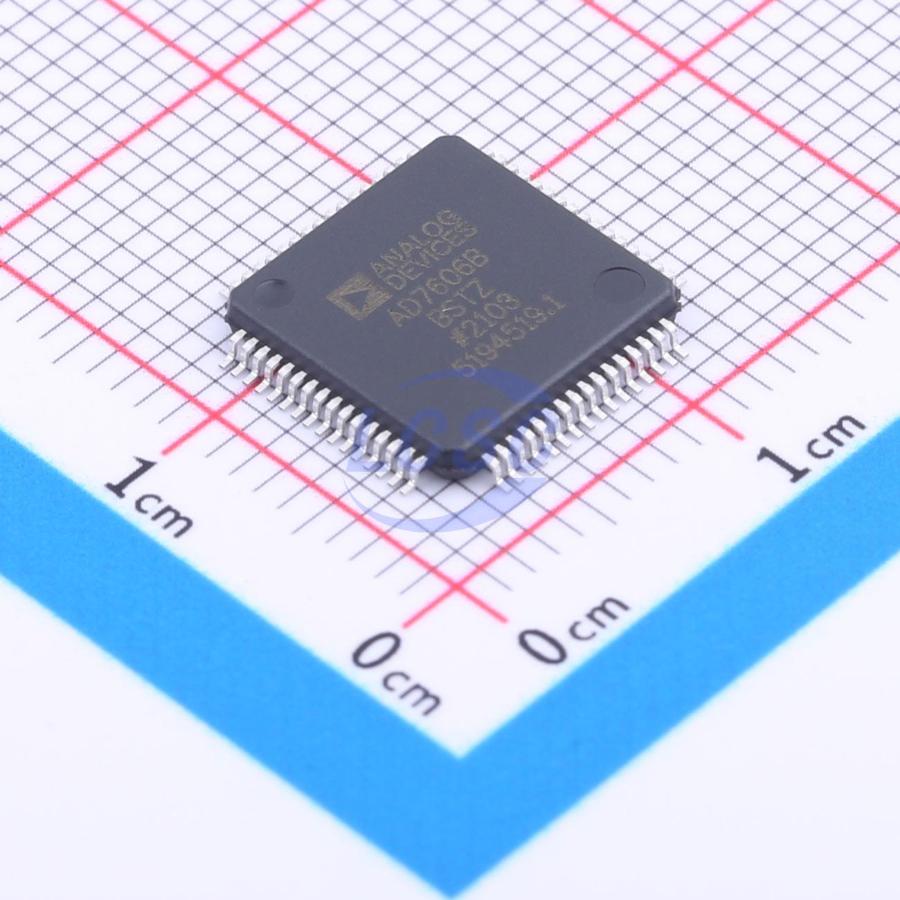

AD7606BBSTZ-RL
8 4.75V~5.25V LQFP-64(10x10) ADCs/DACs - Special Purpose RoHS
LQFP-64(10x10)ROHS3 CompliantActive
8-Channel 16-Bit, 800 kSPS Bipolar Input Simultaneous Sampling ADC
- Manufacturer
- ADI
- Manufacturer part #
- AD7606BBSTZ-RL
- Store part #
- C651284
- Package / case
- LQFP-64(10x10)
- Category
- ADCs/DACs - Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,648 in stock
#C651284
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3,121.91 | ₹3,121.91 |
| 10+ | ₹2,975.73 | ₹29,757.30 |
| 30+ | ₹2,722.54 | ₹81,676.20 |
| 100+ | ₹2,501.53 | ₹2,50,153.00 |
1 × ₹3,121.91
₹3,121.91
excl. GST
₹3,683.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
AD7606BBSTZ-RL
₹3,121.91 for 1 + GST
Specifications
- Features
- Programmable gain;Bipolar input;Digital filtering;On-chip calibration;Power-down mode;Built-in reference source
- Number of Channels
- 8
- Operating Temperature
- -40℃~+125℃
- Interface
- Parallel port;SPI
- DNL (LSB)
- 0.5LSB
- Voltage - Supply
- 4.75V~5.25V
- Quiescent Current
- 0.5uA
- ADC architecture
- SAR
- Integral non - linearity
- 2.5LSB
- Resolution (Bits)
- 16;800kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
Applications
- Power line monitoring
- Protection relays
- Multiphase motor control
- Instrumentation and control systems
- Data acquisition systems
Key features
- All channels: 16-bit, 800 kSPS ADC
- Input buffer with 5 MΩ analog input impedance (RIN)
- Single 5 V analog supply and 1.71 V ~ 3.6 V VDRIVE supply
- Per-channel selectable analog input range
- Single-ended, bipolar: ±10 V, ±5 V, and ±2.5 V
- Flexible digital filter with oversampling ratio up to 256
- Operating temperature range: -40°C ~ +125°C
- ±21 V input clamp protection and 8 kV ESD protection
- Pin-compatible with AD7606
- Typical positive/negative full-scale error drift: 1 ppm/°C
- Calibration and diagnostic functions in software mode
- Open-circuit code error ≤22 LSB (typical) (RPD = 10 kΩ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AD7606BBSTZ#C443885ADI · LQFP-64(10x10) | ADI | LQFP-64(10x10) | 44 | ₹3,159.58 · 44 in stock | View |
 | HT7606BRQZ#C47326419HTCSEMI · LQFP-64(10x10) | HTCSEMI | LQFP-64(10x10) | 28 | ₹1,243.86 · 28 in stock | View |
