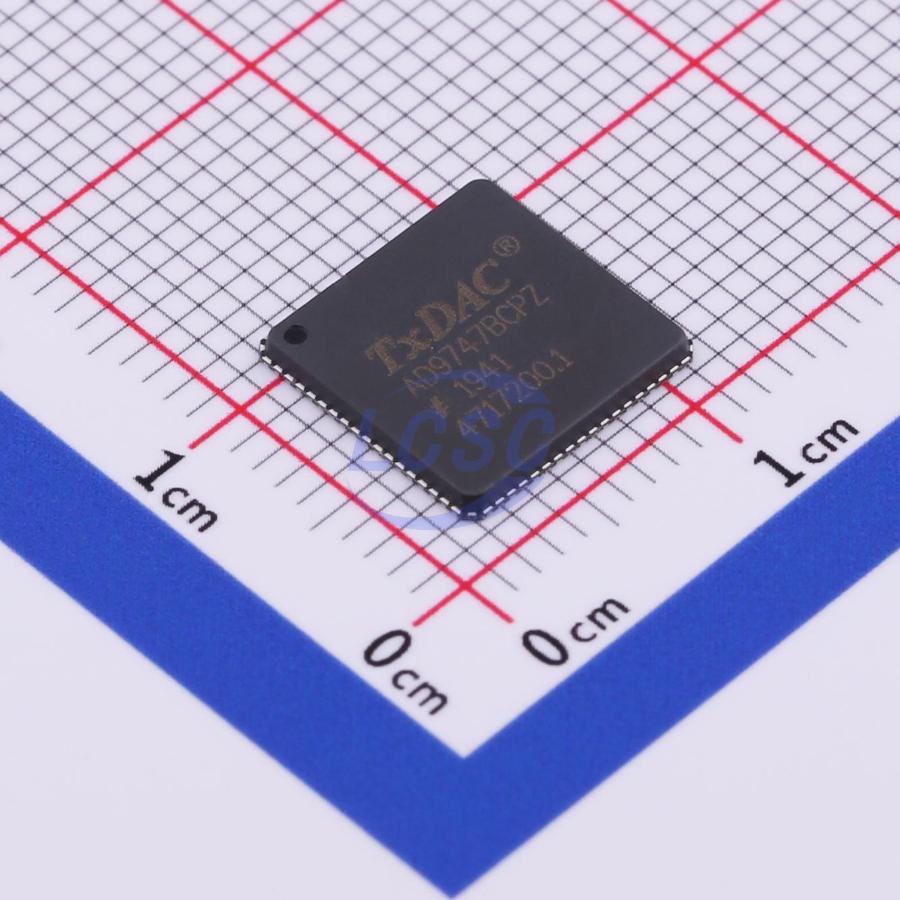

AD9747BCPZRL

The AD9743/AD9745/AD9746/AD9747 are pin-compatible, high dynamic range, dual DACs with 10- /12- / 14- /16-bit resolutions and sample rates of up to 250 MSPS. The devices include specific features for direct conversion transmit applications, including gain and offset compensation, and they interface seamlessly with analog quadrature modulators, such as the ADL5370. A proprietary, dynamic output architecture permits synthesis of analog outputs even above Nyquist by shifting energy away from the fundamental and into the image frequency. A serial peripheral interface (SPI) port provides full programmability. In addition, some pin-programmable features are offered for those applications without a controller.

Applications

• Wireless infrastructure
• W-CDMA, CDMA2000, TD-SCDMA, WiMAX
• Wideband communications: LMDS/MMDS, point-to-point
• Instrumentation
• Radio frequency (RF) signal generators, arbitrary waveform generators

Key features

• High dynamic range, dual digital-to-analog converters (DACs)
• Low noise and intermodulation distortion
• Single carrier W-CDMA ACLR = 80 dBc at 61.44 MHz intermediate frequency (IF)
• Innovative switching output stage permits useable outputs beyond Nyquist frequency
• LVCMOS inputs with dual-port or optional interleaved single-port operation
• Differential analog current outputs are programmable from 8.6 mA to 31.7 mA full-scale
• Auxiliary 10-bit current DACs with source/sink capability for external offset nulling
• Internal 1.2 V precision reference voltage source
• Operates from 1.8 V and 3.3 V supplies
• 315 mW power dissipation
• Small footprint, RoHS-compliant, 72-lead LFCSP
