ADIDatasheet (PDF)

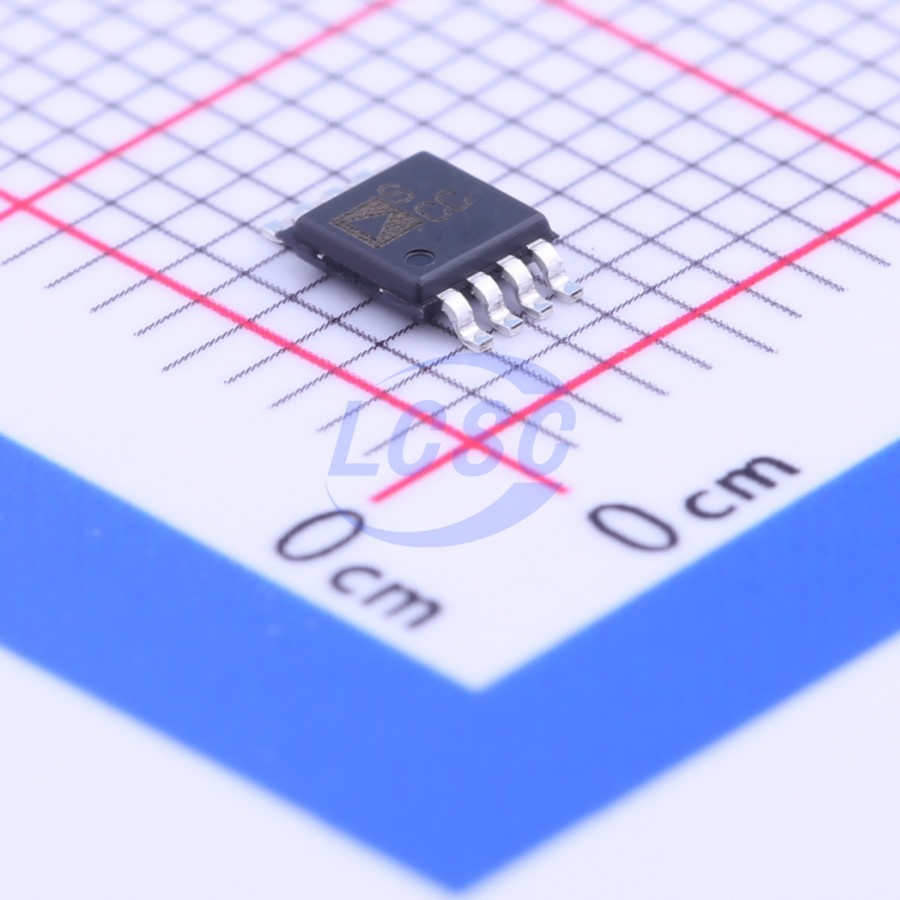

ADG619BRMZ-REEL7
6.5Ω 1 MSOP-8 Analog Switches, Multiplexers, Demultiplexers RoHS
MSOP-8ROHS3 CompliantActive
CMOS, ±5 V/+5 V, DEVICES 4 Q, Single SPDT Switches ADG619/ADG620
- Manufacturer
- ADI
- Manufacturer part #
- ADG619BRMZ-REEL7
- Store part #
- C141957
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,004 in stock
#C141957
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹835.13 | ₹835.13 |
| 10+ | ₹730.00 | ₹7,300.00 |
| 30+ | ₹667.32 | ₹20,019.60 |
| 100+ | ₹564.82 | ₹56,482.00 |
| 500+ | ₹535.64 | ₹2,67,820.00 |
| 1,000+ | ₹522.59 | ₹5,22,590.00 |
1 × ₹835.13
₹835.13
excl. GST
₹985.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ADG619BRMZ-REEL7
₹835.13 for 1 + GST
Specifications
- Features
- Bidirectional analog channel;Glitch-free switching
- Operating Temperature
- -40℃~+85℃
- Ron
- 6.5Ω
- Voltage - Supply
- 2.7V~5.5V;-5.5V~-2.7V
- Number of Channels
- 1
- Con
- 95pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
The ADG619/ADG620 are monolithic, CMOS single-pole double-throw (SPDT) switches. Each switch conducts equally well in both directions when the device is on. The ADG619/ADG620 offer a low on resistance of 4 Ω, which is matched to within 0.7 Ω between channels. These switches also provide low power dissipation, yet result in high switching speeds. The ADG619 exhibits break-before-make switching action, thus preventing momentary shorting when switching channels. The ADG620 exhibits make-before-break action. The ADG619/ADG620 are available in an 8-lead SOT-23 and an 8-lead MSOP.
Applications
- Automatic test equipment
- Power routing
- Communication systems
- Data acquisition systems
- Sample-and-hold systems
- Relay replacement
- Battery-powered systems
Key features
- 6.5 Ω (maximum) on resistance
- 0.8 Ω (maximum) on-resistance flatness
- 2.7 V to 5.5 V single supply
- ±2.7 V to ±5.5 V dual supply
- Rail-to-rail operation
- 8-lead SOT-23, 8-lead MSOP
- Typical power consumption (<0.1 μW)
- TTL-/CMOS-compatible inputs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADG619BRMZ-REEL#C578047ADI · MSOP-8 | ADI | MSOP-8 | 8 | ₹766.35 · 8 in stock | View |
 | ADG619BRMZ#C147944ADI · MSOP-8 | ADI | MSOP-8 | On request | ₹295.00 · 0 in stock | View |
