Wuxi I-core Elec

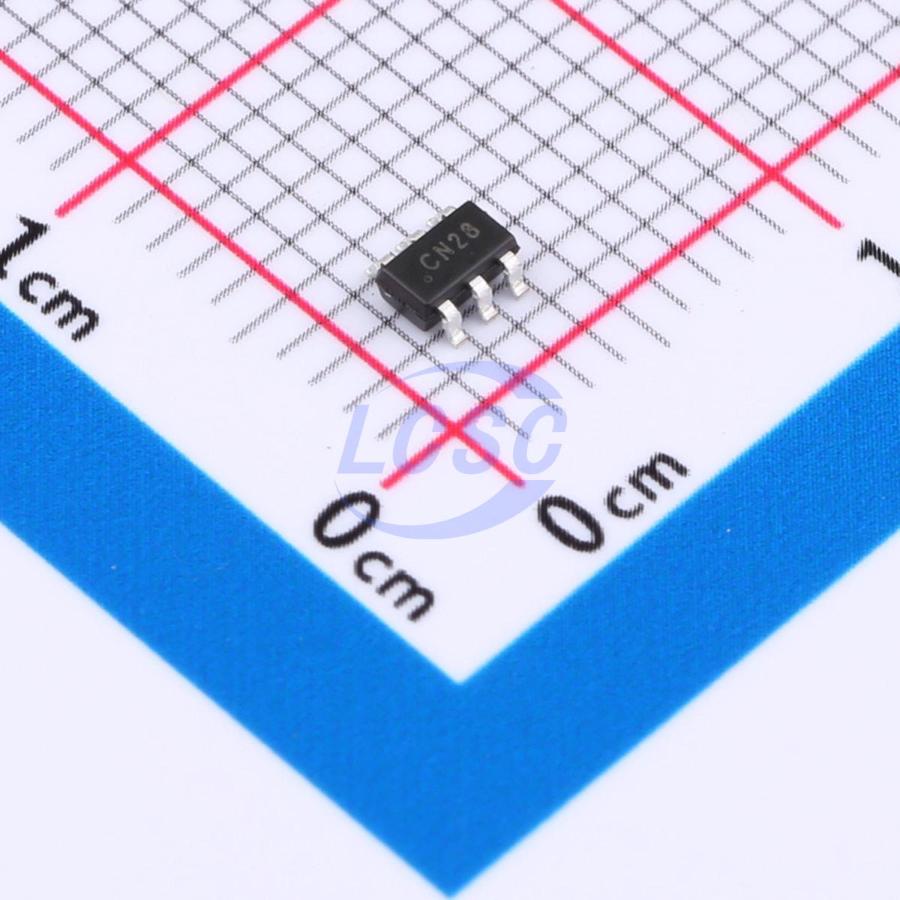

AIP74LVC1G3157GB236G.TR

6Ω 1 1.65V~5.5V SOT-23-6 Analog Switches, Multiplexers, Demultiplexers

SOT-23-6RoHSActive

2-channel Analog Multiplexer/Demultiplexer

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP74LVC1G3157GB236G.TR
Store part #: C5358062
Package / case: SOT-23-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,180 in stock

#C5358062

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹13.12	₹131.20
100+	₹10.15	₹1,015.00
300+	₹8.65	₹2,595.00
3,000+	₹7.54	₹22,620.00
6,000+	₹6.65	₹39,900.00
9,000+	₹6.20	₹55,800.00

Quantity (min 10, multiples of 10)

10 × ₹13.12

₹131.20

excl. GST

₹154.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AIP74LVC1G3157GB236G.TR

₹131.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel;Glitch-free switching
Operating Temperature: -40℃~+105℃
Ron: 6Ω
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 600ps
Con: 18pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.06 g

Overview

The AiP74LVC1G3157 provides one analog multiplexer/demultiplexer with one digital select input (S), two independent inputs/outputs (Y0, Y1) and a common input/output (Z). Schmitt trigger action at the select input makes the circuit tolerant of slower input rise and fall times across the entire VCC range from 1.65V to 5.5V.

Key features

Wide supply voltage range from 1.65V to 5.5V
Very low ON resistance: 7.5Ω (typical) at VCC = 2.7V; 6.5Ω (typical) at VCC = 3.3V; 6Ω (typical) at VCC = 5V
Switch current capability of 32mA
Break-before-make switching
CMOS low power consumption
TTL interface compatibility at 3.3V
Control input accepts voltages up to 5.5V
Specified from -40°C to +105°C
Packaging information: SOT-23-6/SOT-363
