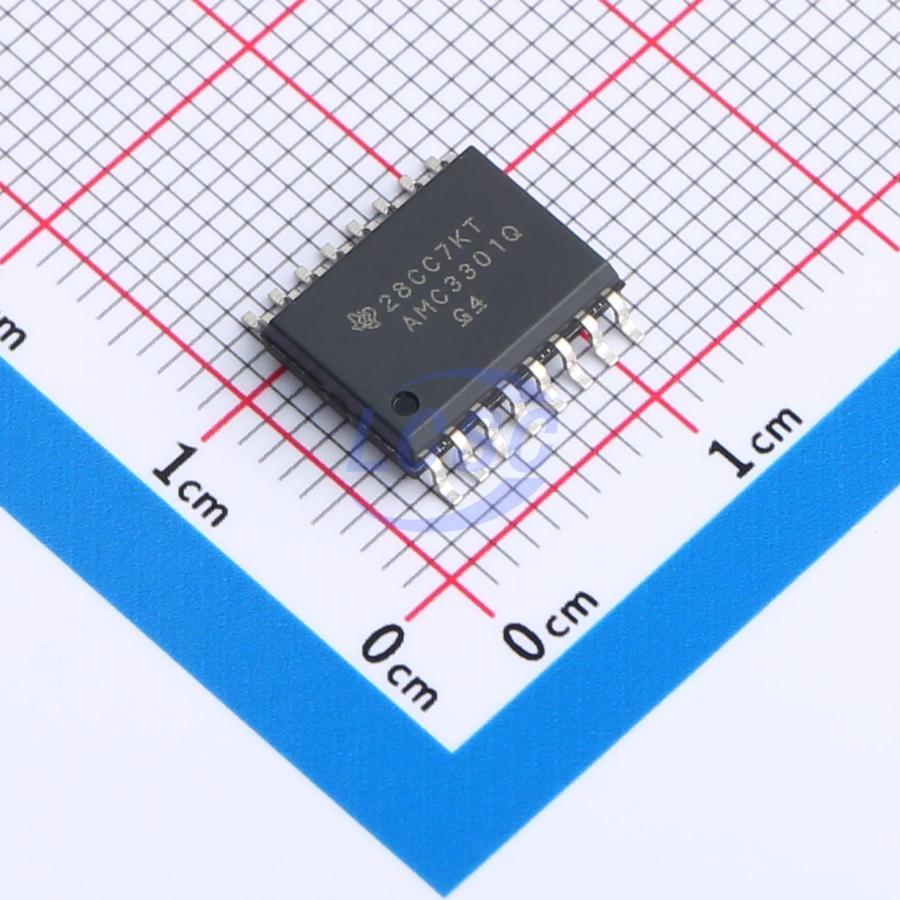

AMC3301QDWERQ1

8.2 334kHz 150uV 24uA SOIC-16-300mil Special Purpose Amplifiers

SOIC-16-300milActive

Precision, +250mV input, enhanced isolation amplifier with integrated DC/DC converter

Manufacturer: TI
Manufacturer part #: AMC3301QDWERQ1
Store part #: C2864548
Package / case: SOIC-16-300mil
Category: Special Purpose Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,360 in stock

#C2864548

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹493.92	₹493.92
10+	₹439.71	₹4,397.10
30+	₹412.17	₹12,365.10
100+	₹375.31	₹37,531.00
500+	₹361.87	₹1,80,935.00
1,000+	₹356.23	₹3,56,230.00

Quantity (min 1)

1 × ₹493.92

₹493.92

excl. GST

₹582.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

AMC3301QDWERQ1

₹493.92 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Type: Differential
Gain: 8.2
Common Mode Rejection Ratio(CMRR): -97dB
-3dB Bandwidth: 334kHz
Vos - Input Offset Voltage: 150uV
Ib - Input Bias Current: 24uA
CMTI(kV/us): 85kV/us
Isolation Voltage(Vrms): 4250
Features: Integrated isolated power supply;Single power supply isolation;Isolated ΔΣ (Sigma-Delta) modulator;Full-differential topology;Fault detection
Differential Input Voltage: ±250mV
Operating Temperature: -40℃~+125℃

Packaging & compliance

Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.504 g

Overview

The AMC3301-Q1 is a precision isolated amplifier optimized for shunt-based current measurement. This fully integrated isolated DC/DC converter enables single-supply operation on the low side of the device, making it a unique solution for space-constrained applications. The enhanced capacitive isolation barrier is certified to VDE V 0884-11 and UL1577 and supports an operating voltage of up to 1.2 kVRMS. This isolation barrier can separate devices operating at different common-mode voltage levels in the system and protect devices with lower voltages from high-voltage surges. The input of the AMC3301-Q1 is optimized for direct connection to low-impedance shunt resistors or other low-impedance voltage sources with low signal levels. Excellent DC accuracy and low temperature drift support accurate current measurement over a temperature range of -40°C to +125°C. The integrated DC/DC converter fault detection and diagnostic output pins of the AMC3301-Q1 simplify system-level design and diagnostics.

Applications

Shunt-based isolated current sensing for:
HEV/EV charging stations
HEV/EV on-board chargers (OBC)
HEV/EV DC/DC converters
HEV/EV traction inverters

Key features

AEC-Q100 qualified for automotive applications: Temperature Grade 1: –40°C to 125°C, TA
3.3V or 5V single supply with integrated DC/DC converter
±250mV input voltage range, optimized for current measurement using shunt resistors
Fixed gain: 8.2
Low DC error:
Offset voltage: ±150μV (maximum)
Temperature drift: ±1µV/°C (maximum)
Gain error: ±0.2% (maximum)
Gain error drift: ±40ppm/°C (maximum)
Nonlinearity: ±0.04% (maximum)
High CMTI: 85kV/µs (minimum)
System-level diagnostic features
CISPR-11 and CISPR-25 EMI compliant
Safety-related certifications:
6000VPK reinforced isolation per DIN VDE V 0884-11
4250VRMS isolation for 1 minute per UL1577
