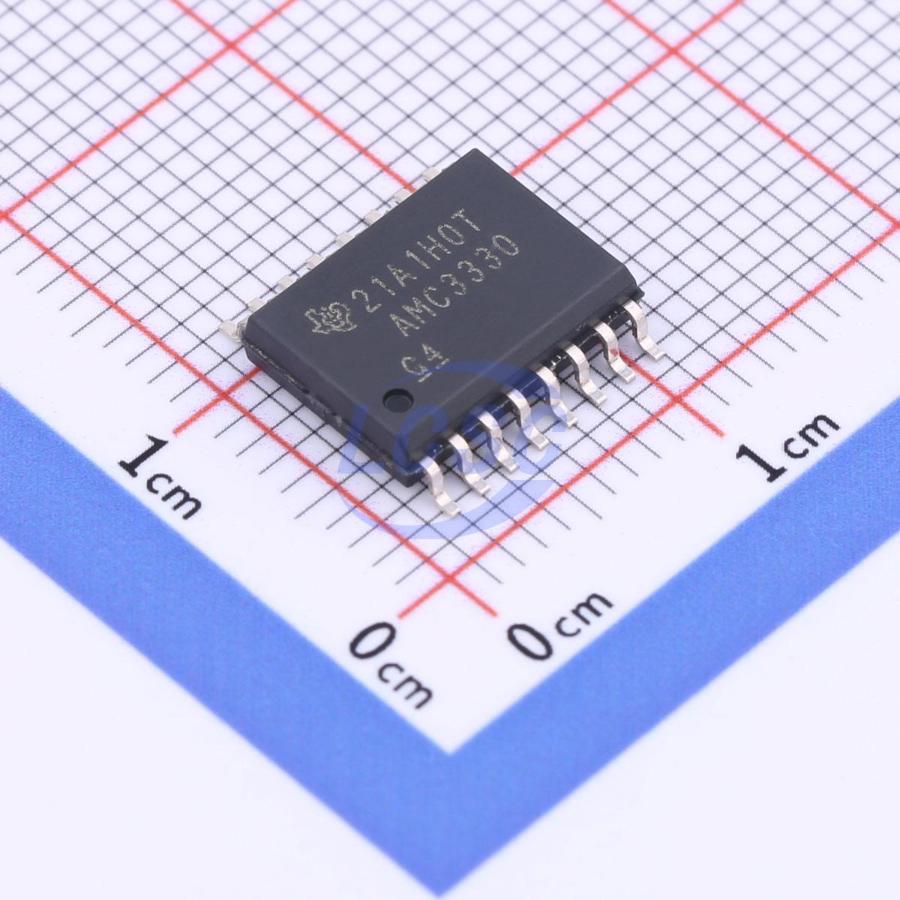

AMC3330DWER

2 375kHz 50uV 2.5nA SOIC-16 Special Purpose Amplifiers RoHS

SOIC-16ROHS3 CompliantActive

Precision, ±1V input, enhanced isolation amplifier with integrated DC/DC converter

Manufacturer: TI
Manufacturer part #: AMC3330DWER
Store part #: C2999368
Package / case: SOIC-16
Category: Special Purpose Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,936 in stock

#C2999368

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹715.00	₹715.00
10+	₹615.38	₹6,153.80
30+	₹556.43	₹16,692.90
100+	₹496.61	₹49,661.00
500+	₹468.99	₹2,34,495.00
1,000+	₹456.59	₹4,56,590.00

Quantity (min 1)

1 × ₹715.00

₹715.00

excl. GST

₹843.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

AMC3330DWER

₹715.00 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Type: Differential
Gain: 2
Common Mode Rejection Ratio(CMRR): -100dB
-3dB Bandwidth: 375kHz
Vos - Input Offset Voltage: 50uV
Ib - Input Bias Current: 2.5nA
CMTI(kV/us): 85kV/us
Isolation Voltage(Vrms): 4250
Differential Input Voltage: ±1.25V
Features: Integrated isolated power supply;Single power supply isolation;Isolated ΔΣ (Sigma-Delta) modulator;Full-differential topology;Fault detection
Operating Temperature: -40℃~+125℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.67 g

Overview

The AMC3330 is a precision isolated amplifier with a fully integrated isolated DC/DC converter, enabling single-supply operation on the low side of the device. This enhanced capacitive isolation layer is certified to VDE V 0884-11 and UL1577 standards, separating different parts of the system operating at different common-mode voltage levels and protecting the low-voltage domain from damage. The input of the AMC3330 is optimized for direct connection to high-impedance voltage signal sources (such as resistor divider networks) to sense high-voltage signals. The integrated isolated DC/DC converter can measure non-grounded signals, making the device a unique solution for noisy and space-constrained applications. The device offers excellent performance, supporting accurate voltage monitoring and control. The integrated DC/DC converter fault detection and diagnostic output pins of the AMC3330 simplify system-level design and diagnostics. The AMC3330 is rated for an operating temperature range of -40°C to +125°C.
