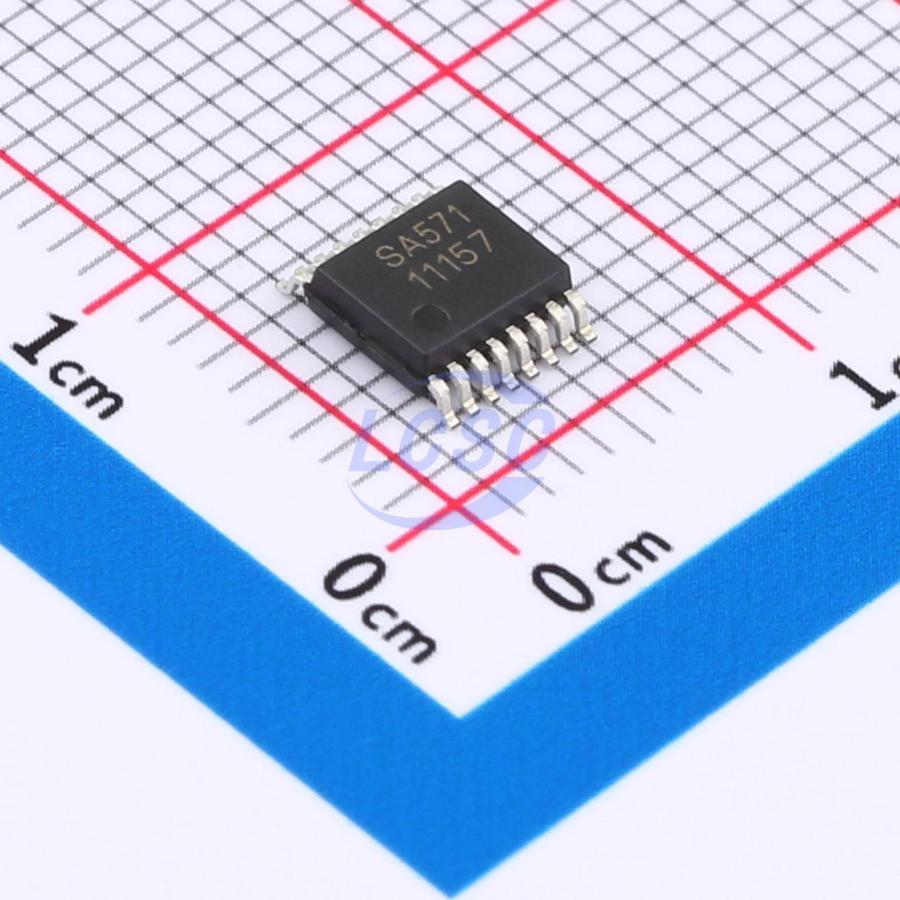

SA571TS16ARDQ
TSSOP-16 Special Purpose Amplifiers
- Manufacturer
- GR
- Manufacturer part #
- SA571TS16ARDQ
- Store part #
- C42445176
- Package / case
- TSSOP-16
- Category
- Special Purpose Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,536 in stock
#C42445176
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹252.89 | ₹252.89 |
| 10+ | ₹231.64 | ₹2,316.40 |
| 30+ | ₹218.26 | ₹6,547.80 |
| 100+ | ₹204.65 | ₹20,465.00 |
| 500+ | ₹198.49 | ₹99,245.00 |
| 1,000+ | ₹195.72 | ₹1,95,720.00 |
1 × ₹252.89
₹252.89
excl. GST
₹298.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SA571TS16ARDQ
₹252.89 for 1 + GST
Specifications
- Single Supply
- 6V~18V
- Quiescent Current
- 4200000nA
- Features
- Automatic gain control;On-chip temperature compensation
- Slew Rate
- 5V/us
- Operating Temperature
- -40℃~+85℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.176 g
Overview
The SA571 is a versatile low cost dual gain control circuit in which either channel may be used as a dynamic range compressor or expandor. Each channel has a full-wave rectifier to detect the average value of the signal, a linerarized temperature-compensated variable gain cell, and an operational amplifier. The SA571 is well suited for use in cellular radio and radio communications systems, modems, telephone, and satellite broadcast/receive audio systems.
Applications
- cellular radio and radio communications systems
- modems
- telephone
- satellite broadcast/receive audio systems
Key features
- Complete Compressor and Expandor in one IChip
- Temperature Compensated
- Greater than 110 dB Dynamic Range
- Operates Down to 6.0 VDC
- System Levels Adjustable with External Components
- Distortion may be Trimmed Out
- Dynamic Noise Reduction Systems
- Voltage Controlled Amplifier
