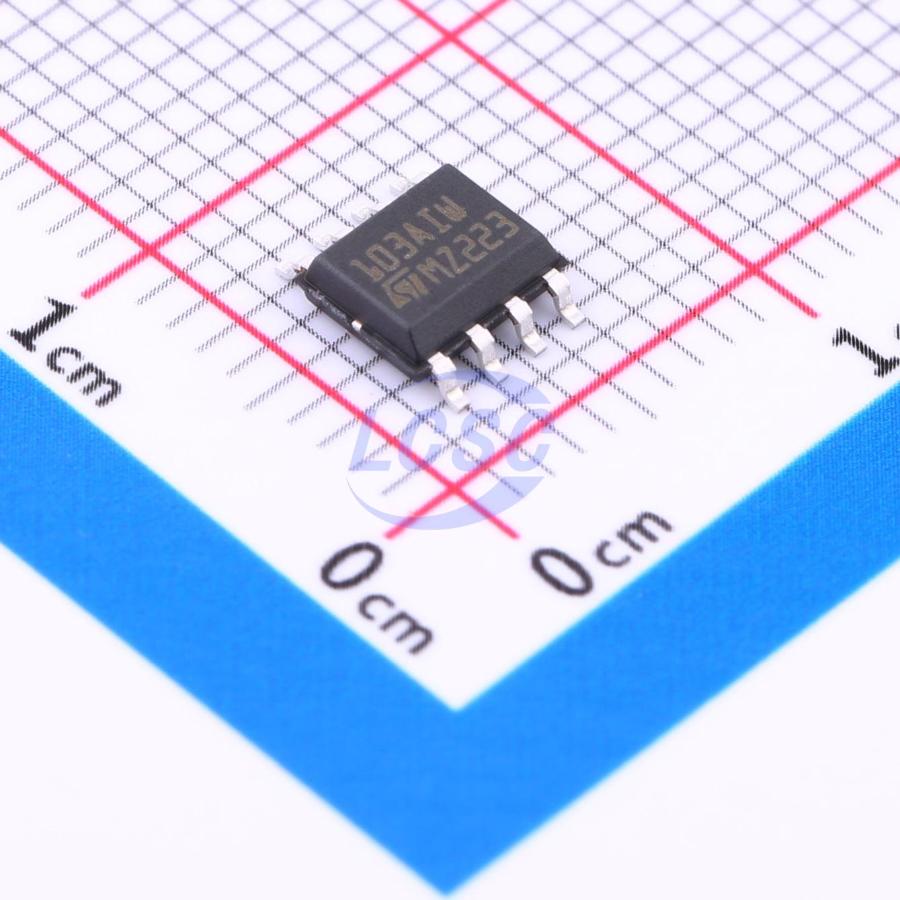

TSM103WAIDT
2mV 150nA 2 SOIC-8 Special Purpose Amplifiers RoHS
SOIC-8ROHS3 CompliantActive
Dual Operational Amplifier and Voltage Reference
- Manufacturer
- ST
- Manufacturer part #
- TSM103WAIDT
- Store part #
- C77580
- Package / case
- SOIC-8
- Category
- Special Purpose Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,535 in stock
#C77580
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.10 | ₹210.50 |
| 50+ | ₹33.19 | ₹1,659.50 |
| 150+ | ₹29.38 | ₹4,407.00 |
| 500+ | ₹24.62 | ₹12,310.00 |
| 2,500+ | ₹22.50 | ₹56,250.00 |
| 5,000+ | ₹21.23 | ₹1,06,150.00 |
5 × ₹42.10
₹210.50
excl. GST
₹248.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TSM103WAIDT
₹210.50 for 5 + GST
Specifications
- Quiescent Current
- 1.2mA
- Input Voltage Noise Density
- 50nV/√Hz@1kHz
- Dual Supply
- 1.5V~16V;-16V~-1.5V
- Single Supply
- 3V~32V
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Gain Bandwidth Product
- 900kHz
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 150nA
- Input Offset Current(Ios)
- 75nA
- Output Current
- 40mA
- Features
- ESD protection
- Number of Channels
- 2
- Slew Rate
- 400V/ms
- Operating Temperature
- -40℃~+105℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The TSM103W is a monolithic IC that includes one independent op-amp and another op-amp for which the non-inverting input is wired to a 2.5V fixed Voltage Reference. This device offers both space and cost savings in many applications such as power supply management or data acquisition systems.
Applications
- power supply management
- data acquisition systems
Key features
- LOW INPUT OFFSET VOLTAGE: 0.5mV typ.
- LOW SUPPLY CURRENT: 350μA/op (Vcc = 5V)
- MEDIUM BANDWIDTH (unity gain): 0.9MHz
- LARGE OUTPUT VOLTAGE SWING: 0V to (Vcc - 1.5V)
- INPUT COMMON MODE VOLTAGE RANGE INCLUDES GROUND
- WIDE POWER SUPPLY RANGE: 3 to 32V, ±1.5 to ±16V
- 1.5KV ESD PROTECTION
- FIXED OUTPUT VOLTAGE REFERENCE 2.5V
- ±0.4% OR ±0.7% VOLTAGE PRECISION
- SINK CURRENT CAPABILITY: 1 to 100mA
- TYPICAL OUTPUT IMPEDANCE: 0.2Ω
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UPC842G2-E1-A#C22412104RENESAS · SOP-8 | RENESAS | SOP-8 | 42 | ₹300.60 · 42 in stock | View |
 | UM603AG-1#C7509622UTC · SOP-8 | UTC | SOP-8 | 5 | ₹18.68 · 5 in stock | View |
 | LM358AMX(TP)#C53340818TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,510 | ₹10.76 · 3,510 in stock | View |
 | LM358DR2G(TP)#C53340819TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,580 | ₹10.50 · 3,580 in stock | View |
 | LM358DT(TP)#C53340820TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,250 | ₹10.50 · 3,250 in stock | View |
