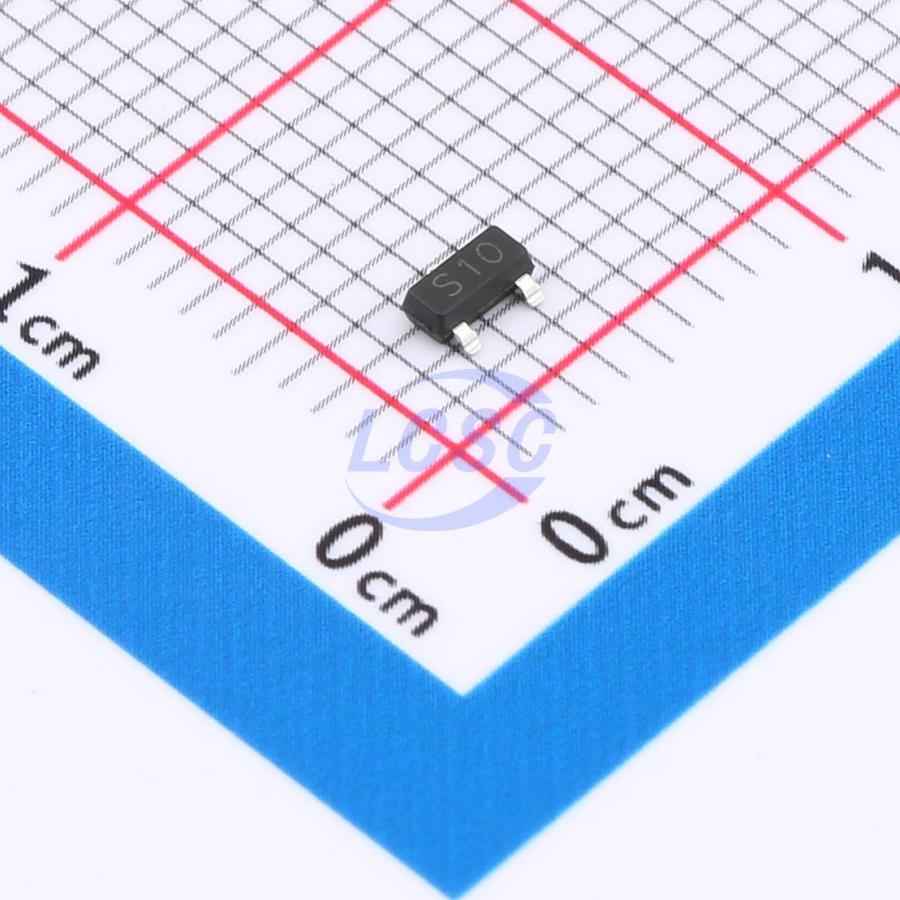

AO2310
60V 3A Surface Mount SOT-23
SOT-23ROHS CompliantActive
MOSFET 60V 3A SOT-23
- Manufacturer
- JSMSEMI
- Manufacturer part #
- AO2310
- Store part #
- C49046451
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C49046451
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.05 | ₹81.00 |
| 200+ | ₹3.15 | ₹630.00 |
| 600+ | ₹2.65 | ₹1,590.00 |
| 3,000+ | ₹2.39 | ₹7,170.00 |
| 9,000+ | ₹2.13 | ₹19,170.00 |
| 21,000+ | ₹1.98 | ₹41,580.00 |
20 × ₹4.05
₹81.00
excl. GST
₹95.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO2310
₹81.00 for 20 + GST
Specifications
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 3A
- Output Capacitance(Coss)
- 90pF
- Ciss-Input Capacitance
- 330pF
- Pd - Power Dissipation
- 1.2W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 86mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.035 g
Overview
- Trench power medium-voltage MOSFET technology - Superior thermal dissipation package - High-density cell design for low R<sub>DS(ON)</sub>
Applications
- DC-DC Converter - Power Management Function
Key features
- N-Channel P-Channel
- VDS (V) = 60V - 60V
- ID = 5.0A (VGS = 10V) - 3.8A (VGS = -10V)
- RDS(ON) < 33mΩ (VGS = 10V) < 75mΩ (VGS = -10V)
- RDS(ON) < 42mΩ (VGS = 4.5V) < 85mΩ (VGS = -4.5V)
- SOIC - 8
- 100% Rg tested
