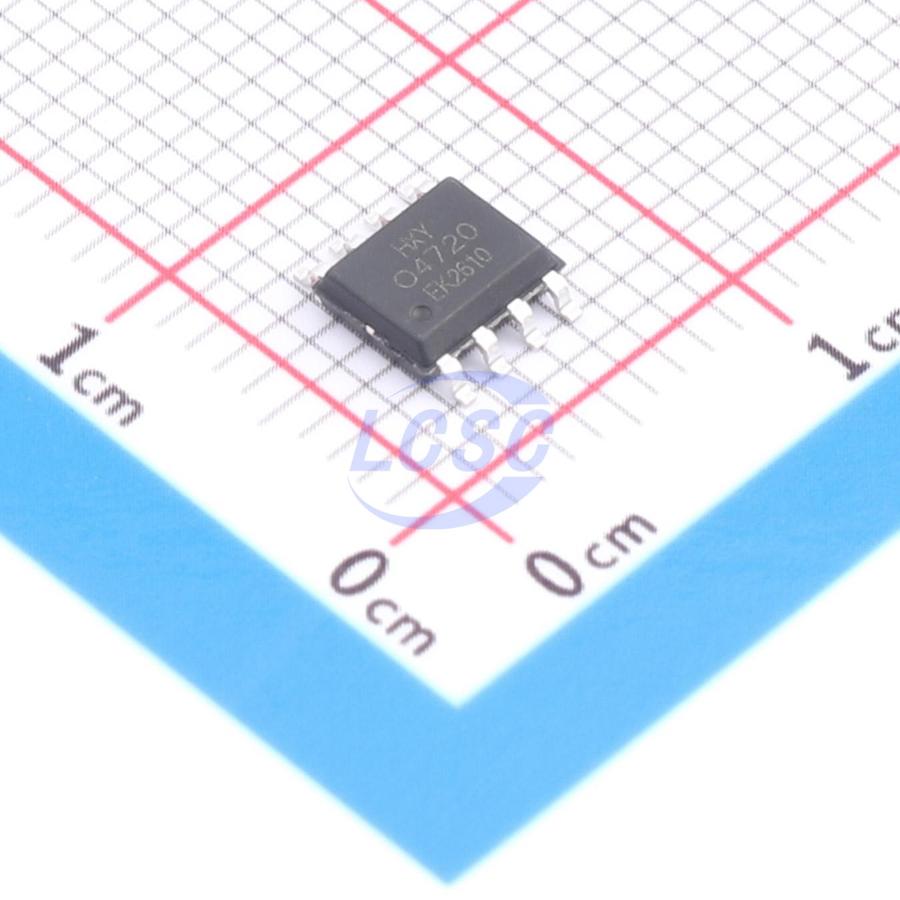

HXY MOSFETDatasheet (PDF)
AO4720
30V 10A 2.2W 9mΩ@10V 1 N-channel N-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AO4720
- Store part #
- C54582830
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C54582830
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.38 | ₹201.90 |
| 50+ | ₹32.35 | ₹1,617.50 |
| 150+ | ₹28.89 | ₹4,333.50 |
| 500+ | ₹24.59 | ₹12,295.00 |
| 3,000+ | ₹20.29 | ₹60,870.00 |
| 6,000+ | ₹19.14 | ₹1,14,840.00 |
5 × ₹40.38
₹201.90
excl. GST
₹238.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO4720
₹201.90 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 110pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 580pF
- Pd - Power Dissipation
- 2.2W
- Reverse Transfer Capacitance (Crss)
- 94pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.142 g
Overview
The AO4720 utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage (VDS) = 30V, drain current (ID) = 10A
- On-resistance (RDS(ON)) < 12mΩ at gate-source voltage (VGS) = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOSP36326C#C54582795HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 40 | ₹26.17 · 40 in stock | View |
 | SI4894BDY-T1-E3-HXY#C54582801HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 48 | ₹134.80 · 48 in stock | View |
 | SI4894BDY-T1-GE3-HXY#C54582802HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 48 | ₹77.74 · 48 in stock | View |
 | NTMS4917NR2G-HXY#C54582806HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 40 | ₹40.35 · 40 in stock | View |
 | AO4566#C54582809HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 40 | ₹40.35 · 40 in stock | View |
