VBsemi ElecDatasheet (PDF)

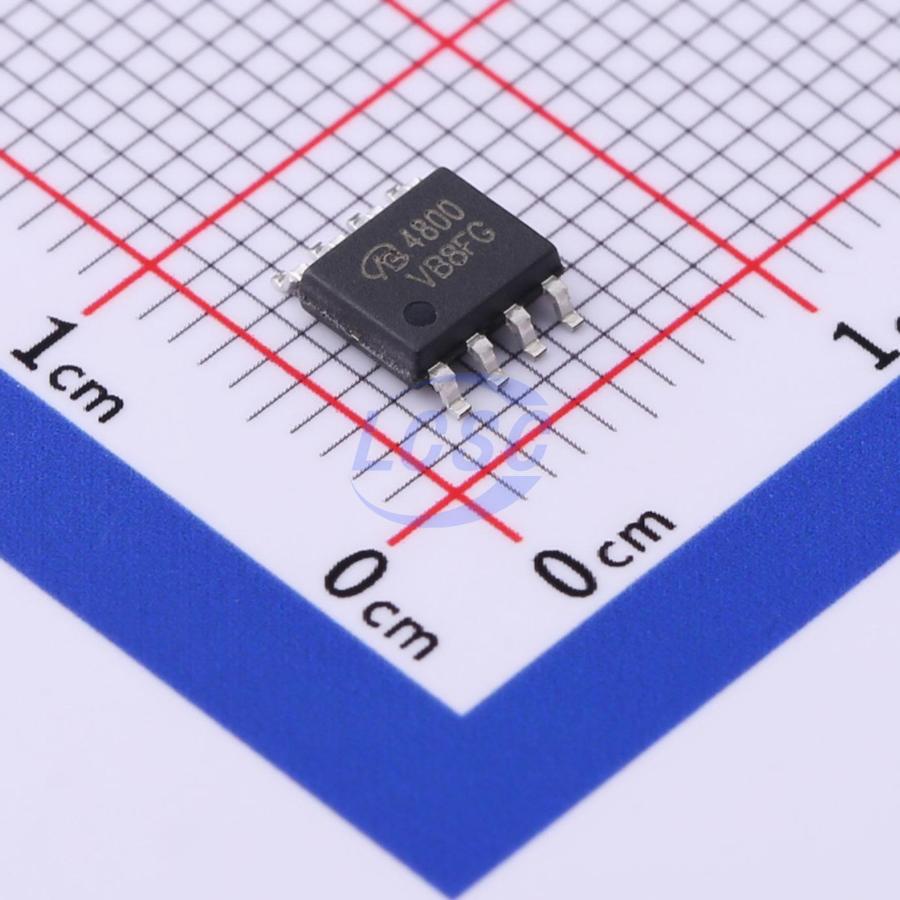

AO4800-VB
N-Channel Array 30V 6.8A 2.7W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH ARR 30V 6.8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AO4800-VB
- Store part #
- C709891
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,780 in stock
#C709891
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.23 | ₹236.15 |
| 50+ | ₹37.47 | ₹1,873.50 |
| 150+ | ₹33.29 | ₹4,993.50 |
| 500+ | ₹28.06 | ₹14,030.00 |
| 2,500+ | ₹23.88 | ₹59,700.00 |
| 4,000+ | ₹22.49 | ₹89,960.00 |
5 × ₹47.23
₹236.15
excl. GST
₹278.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AO4800-VB
₹236.15 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 117pF
- Current - Continuous Drain(Id)
- 6.8A
- Ciss-Input Capacitance
- 586pF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@10V;26mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 15nC@10V;3.7nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V;2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.219 g
Overview
Applications
- Set-top box
- Low-current DC/DC converter
Key features
- Compliant with halogen-free requirements per IEC 61249-2-21
- Trench power MOSFET
- 100% tested for single-pulse avalanche energy (UIS)
- 100% tested for gate resistance (Rg)
- Compliant with RoHS Directive 2002/95/EC
