VBsemi ElecDatasheet (PDF)

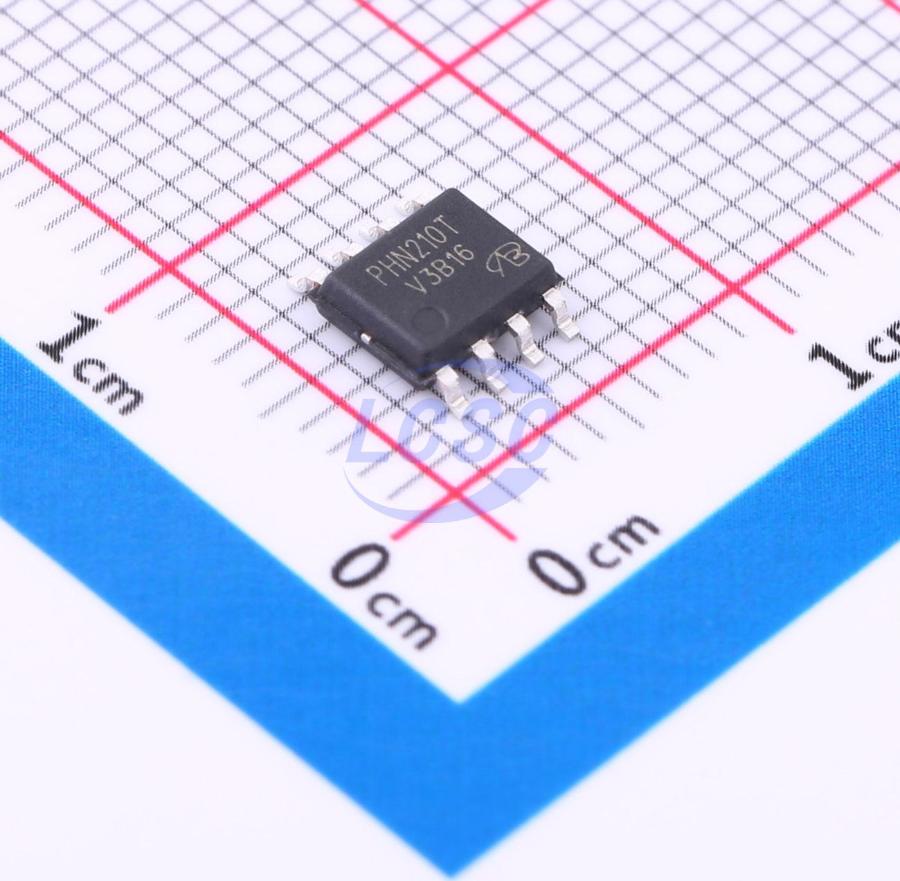

PHN210T-VB
N-Channel 30V 6.8A 2.7W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 6.8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PHN210T-VB
- Store part #
- C2680901
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C2680901
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.98 | ₹224.90 |
| 50+ | ₹35.56 | ₹1,778.00 |
| 150+ | ₹31.51 | ₹4,726.50 |
| 500+ | ₹26.47 | ₹13,235.00 |
| 2,500+ | ₹24.24 | ₹60,600.00 |
| 4,000+ | ₹22.89 | ₹91,560.00 |
5 × ₹44.98
₹224.90
excl. GST
₹265.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PHN210T-VB
₹224.90 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 117pF
- Current - Continuous Drain(Id)
- 6.8A
- Ciss-Input Capacitance
- 586pF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@10V;26mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V;2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.182 g
Overview
Applications
- Set-top box
- Low-current DC/DC
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% UIS tested
- 100% Rg tested
- Compliant with RoHS Directive 2002/95/EC
