VBsemi ElecDatasheet (PDF)

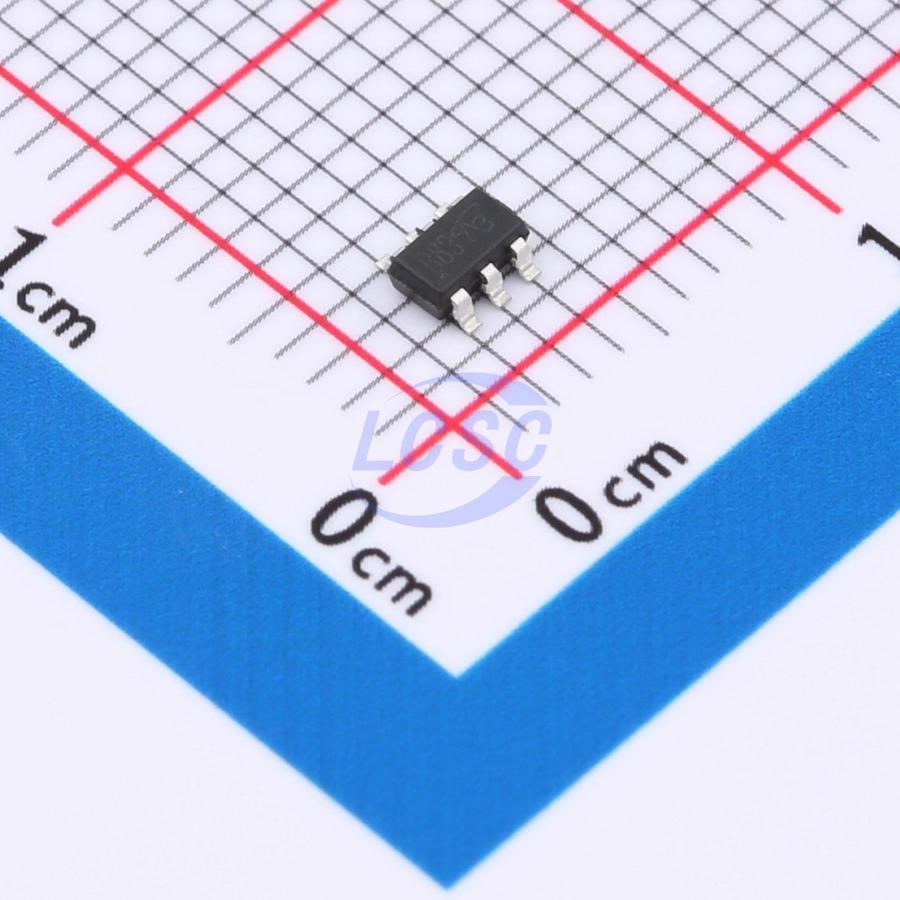

AO6409A-VB
P-Channel 30V 4.8A 3W Surface Mount TSOP-6
TSOP-6RoHSActive
MOSFET P-CH 30V 4.8A TSOP-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AO6409A-VB
- Store part #
- C20755339
- Package / case
- TSOP-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C20755339
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.37 | ₹181.85 |
| 50+ | ₹29.90 | ₹1,495.00 |
| 150+ | ₹27.12 | ₹4,068.00 |
| 500+ | ₹23.67 | ₹11,835.00 |
| 3,000+ | ₹16.99 | ₹50,970.00 |
| 6,000+ | ₹16.06 | ₹96,360.00 |
5 × ₹36.37
₹181.85
excl. GST
₹214.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO6409A-VB
₹181.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 4.8A
- Ciss-Input Capacitance
- 450pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 63pF
- RDS(on)
- 49mΩ@10V;54mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Applications
- Load Switch
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
