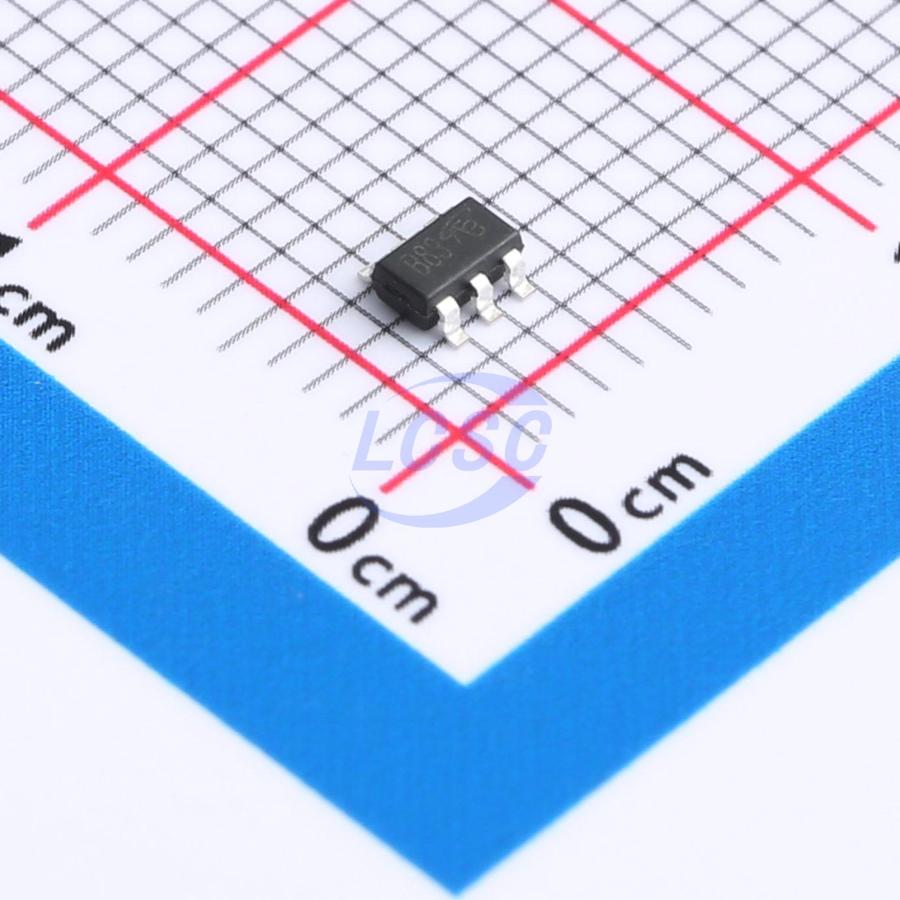

SI3469DV-T1-E3-VB
P-Channel 30V 4.8A 3W Surface Mount TSOP-6
TSOP-6RoHSActive
MOSFET P-CH 30V 4.8A TSOP-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI3469DV-T1-E3-VB
- Store part #
- C20626319
- Package / case
- TSOP-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C20626319
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.09 | ₹145.45 |
| 50+ | ₹22.83 | ₹1,141.50 |
| 150+ | ₹20.16 | ₹3,024.00 |
| 500+ | ₹16.83 | ₹8,415.00 |
| 3,000+ | ₹15.33 | ₹45,990.00 |
| 6,000+ | ₹14.45 | ₹86,700.00 |
5 × ₹29.09
₹145.45
excl. GST
₹171.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI3469DV-T1-E3-VB
₹145.45 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 4.8A
- Ciss-Input Capacitance
- 450pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 63pF
- RDS(on)
- 49mΩ@10V;54mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Applications
- Load Switch
Key features
- Halogen-free product compliant with IEC 61249-2-21
- Trench power MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO6405-VB#C19190221VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 10 | ₹22.25 · 10 in stock | View |
 | UPA1919TE-VB#C20754976VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 30 | ₹29.09 · 30 in stock | View |
 | UPA1914TE-VB#C20755128VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 45 | ₹29.09 · 45 in stock | View |
 | AO6409A-VB#C20755339VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 20 | ₹36.37 · 20 in stock | View |
 | SI3433CDV-T1-GE3-VB#C18212519VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 80 | ₹30.64 · 80 in stock | View |
