VBsemi ElecDatasheet (PDF)

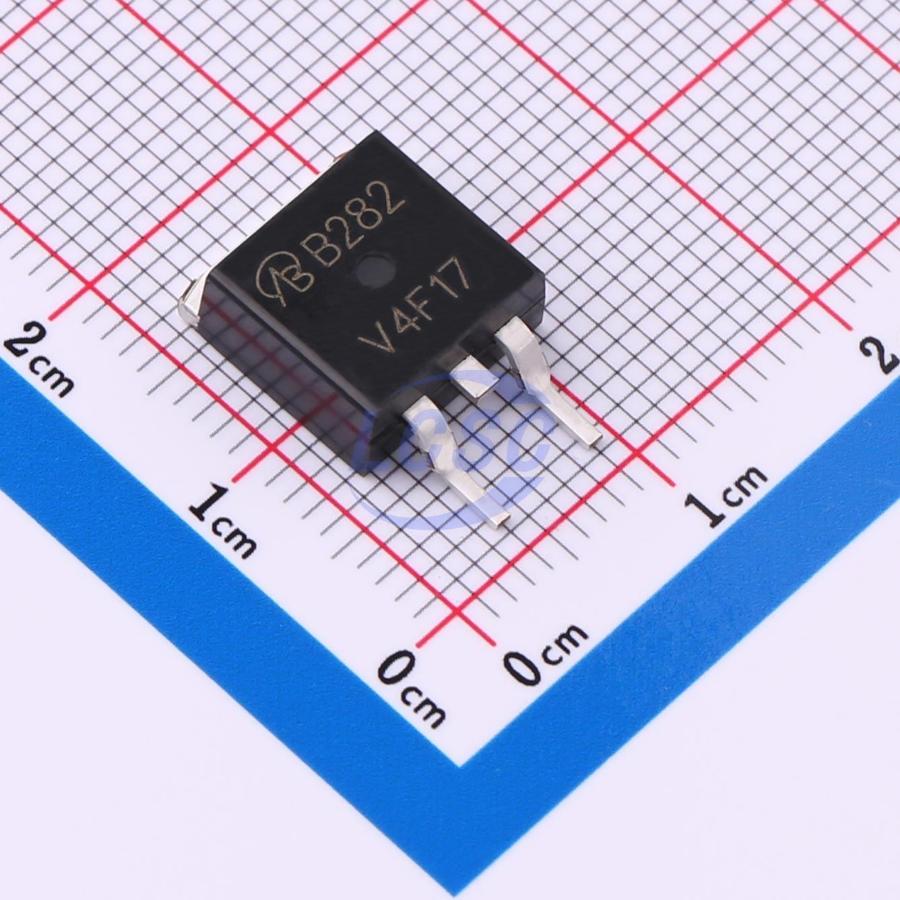

AOB282L-VB
N-Channel 80V 215A 375W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 80V 215A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOB282L-VB
- Store part #
- C29779251
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779251
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.51 | ₹173.51 |
| 10+ | ₹143.47 | ₹1,434.70 |
| 50+ | ₹127.09 | ₹6,354.50 |
| 100+ | ₹108.39 | ₹10,839.00 |
| 500+ | ₹100.20 | ₹50,100.00 |
| 1,000+ | ₹96.42 | ₹96,420.00 |
1 × ₹173.51
₹173.51
excl. GST
₹204.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOB282L-VB
₹173.51 for 1 + GST
Specifications
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 3.25nF
- Current - Continuous Drain(Id)
- 215A
- Ciss-Input Capacitance
- 7.91nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 348pF
- RDS(on)
- 5mΩ@10V;9.5mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 94nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.51 g
Overview
Applications
- Power Supply
- Secondary Synchronous Rectification
- DC/DC Converter
- Power Tools
- Motor Drive Switch
- DC/AC Inverter
- Battery Management
Key features
- Trench power MOSFET
- Maximum junction temperature 175 °C
- Ultra-low gate-drain charge (Qgd) reduces power loss during Miller plateau voltage (Vplateau) crossing
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STH260N6F6-2-VB#C19626745VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹181.07 · 10 in stock | View |
 | BUK964R7-80E-VB#C19632193VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹208.99 · 50 in stock | View |
 | IRF2907ZSTRLPBF-VB#C20626260VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹237.73 · 50 in stock | View |
 | IRFS3307-VB#C22389418VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹173.51 · 5 in stock | View |
 | VBZL120N08#C700686VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹205.73 · 50 in stock | View |
