VBsemi ElecDatasheet (PDF)

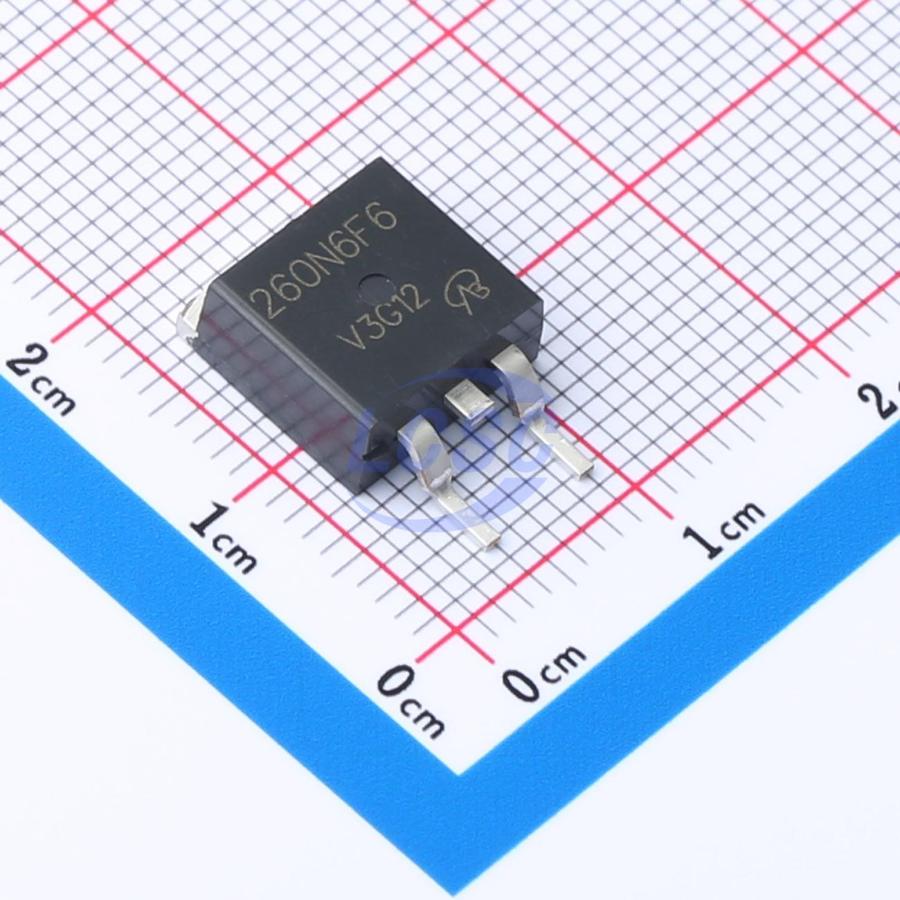

STH260N6F6-2-VB
N-Channel 80V 215A 375W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 80V 215A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STH260N6F6-2-VB
- Store part #
- C19626745
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C19626745
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.07 | ₹181.07 |
| 10+ | ₹151.03 | ₹1,510.30 |
| 50+ | ₹134.65 | ₹6,732.50 |
| 100+ | ₹115.96 | ₹11,596.00 |
| 500+ | ₹107.55 | ₹53,775.00 |
| 1,000+ | ₹103.99 | ₹1,03,990.00 |
1 × ₹181.07
₹181.07
excl. GST
₹213.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STH260N6F6-2-VB
₹181.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 3.25nF
- Current - Continuous Drain(Id)
- 215A
- Ciss-Input Capacitance
- 7.91nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 348pF
- RDS(on)
- 5mΩ@10V;9.5mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 94nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.6 g
Overview
Applications
- Power Supply
- Secondary Synchronous Rectification
- DC/DC Converter
- Power Tools
- Motor Drive Switch
- DC/AC Inverter
- Battery Management
Key features
- Trench power MOSFET
- Maximum junction temperature 175°C
- Ultra-low Qgd reduces power loss through V-plateau
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
