VBsemi ElecDatasheet (PDF)

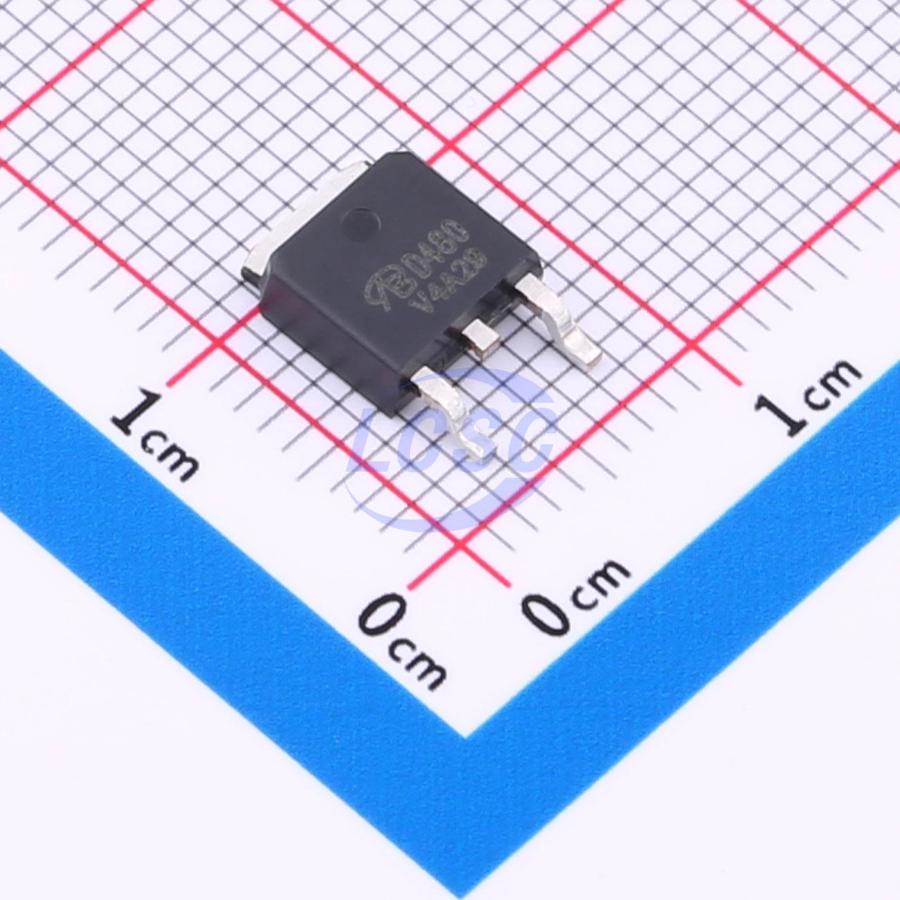

AOD480-VB
N-Channel 30V 70A 100W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 70A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOD480-VB
- Store part #
- C20754919
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C20754919
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.93 | ₹52.93 |
| 10+ | ₹42.02 | ₹420.20 |
| 30+ | ₹37.40 | ₹1,122.00 |
| 100+ | ₹31.51 | ₹3,151.00 |
| 500+ | ₹29.00 | ₹14,500.00 |
| 1,000+ | ₹27.32 | ₹27,320.00 |
1 × ₹52.93
₹52.93
excl. GST
₹62.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD480-VB
₹52.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V;25nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.416 g
Overview
This device employs advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. It is suitable for battery protection or other switching applications.
Applications
- OR gate
- Server
- DC/DC
Key features
- Trench Power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per EU Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTD20N03G-VB#C18212546VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹53.56 · 10 in stock | View |
 | AOD420-VB#C19188101VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 38 | ₹51.89 · 38 in stock | View |
 | UTD408L-TN3-R-VB#C20755322VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹52.93 · 40 in stock | View |
 | NTD4813NHT4G-VB#C22388979VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹67.92 · 50 in stock | View |
 | AOD402-VB#C22389554VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 17 | ₹57.70 · 17 in stock | View |
