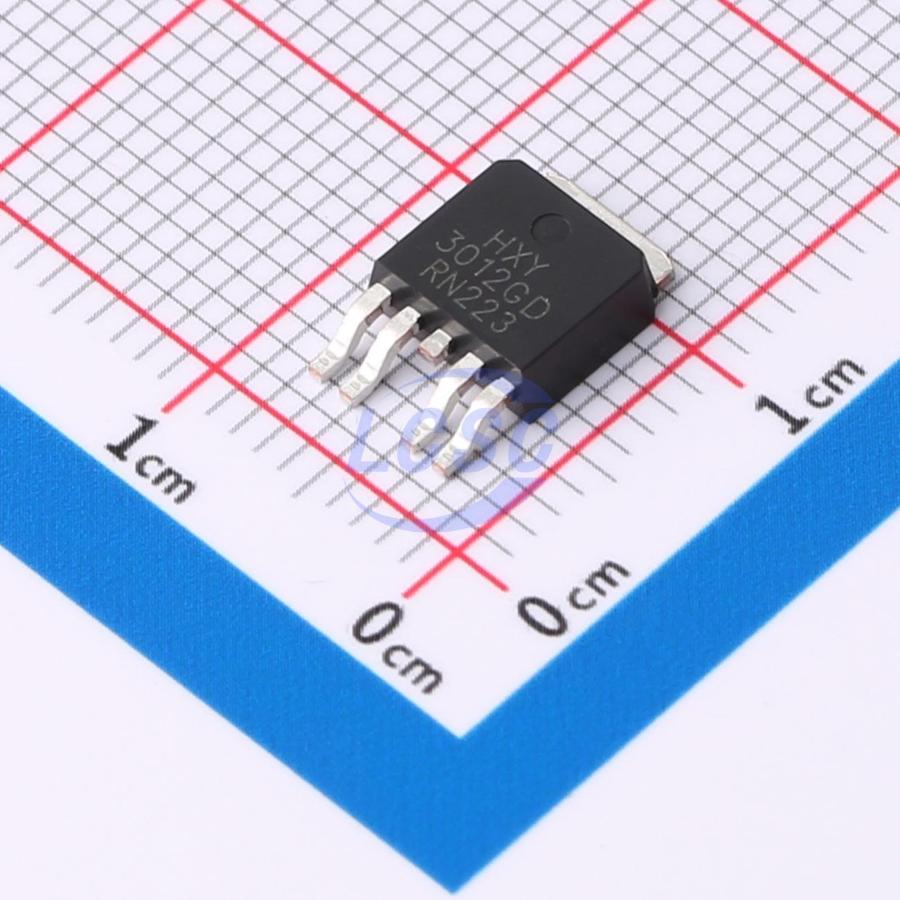

AOD607-HXY
N-Channel+P-Channel Array 30V 20A 20.8W Surface Mount TO-252-4L
TO-252-4LRoHSActive
MOSFET N-CH+P-CH ARR 30V 20A TO-252-4L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AOD607-HXY
- Store part #
- C4748762
- Package / case
- TO-252-4L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
410 in stock
#C4748762
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.64 | ₹113.20 |
| 50+ | ₹17.78 | ₹889.00 |
| 150+ | ₹15.69 | ₹2,353.50 |
| 500+ | ₹13.10 | ₹6,550.00 |
| 2,500+ | ₹11.93 | ₹29,825.00 |
| 5,000+ | ₹11.25 | ₹56,250.00 |
5 × ₹22.64
₹113.20
excl. GST
₹133.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD607-HXY
₹113.20 for 5 + GST
Specifications
- Configuration
- Common Drain
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 62pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 416pF
- Pd - Power Dissipation
- 20.8W
- Reverse Transfer Capacitance (Crss)
- 51pF
- RDS(on)
- 16mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.5 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM3012T9RL-HXY#C22366953HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 200 | ₹25.23 · 200 in stock | View |
 | DMC4029SK4-HXY#C22366759HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 80 | ₹32.85 · 80 in stock | View |
 | FDD8424H-HXY#C22366760HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 2,543 | ₹65.05 · 2,543 in stock | View |
 | HXY4012GD#C3033442HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 220 | ₹26.92 · 220 in stock | View |
 | AOD609-HXY#C4748763HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 350 | ₹29.81 · 350 in stock | View |
