VBsemi ElecDatasheet (PDF)

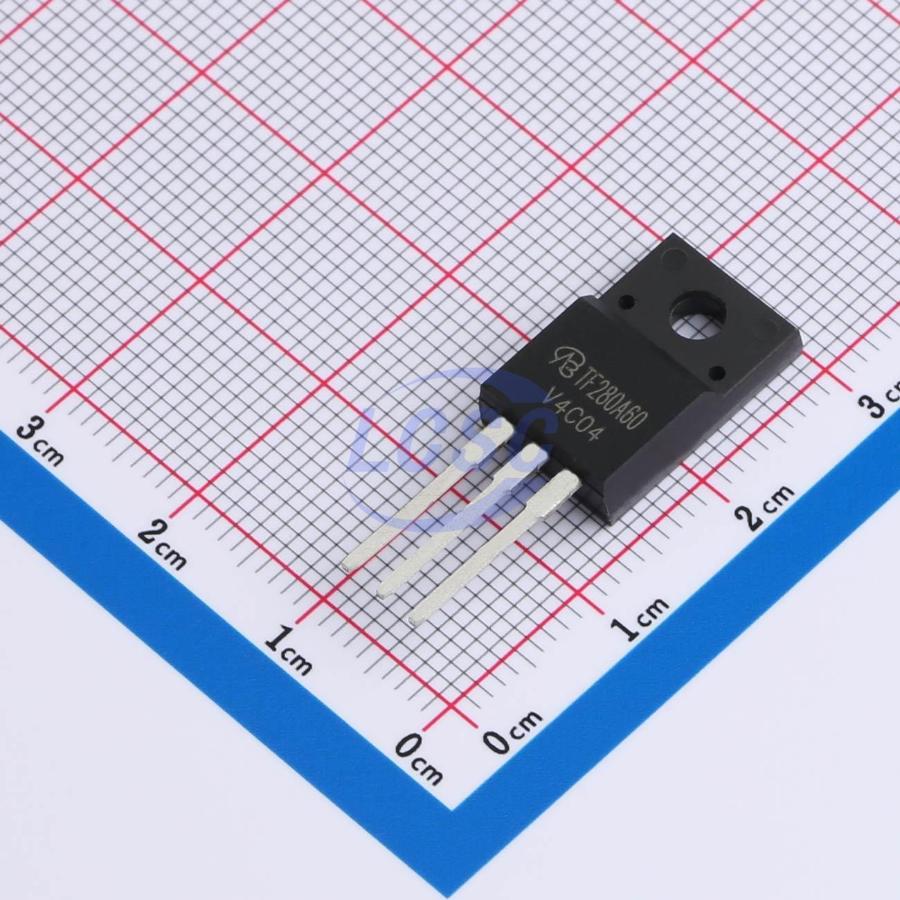

AOTF280A60L-VB
N-Channel 600V 15A 80W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 600V 15A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOTF280A60L-VB
- Store part #
- C22357072
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357072
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.73 | ₹261.73 |
| 10+ | ₹221.40 | ₹2,214.00 |
| 50+ | ₹196.40 | ₹9,820.00 |
| 100+ | ₹170.57 | ₹17,057.00 |
| 500+ | ₹158.80 | ₹79,400.00 |
| 1,000+ | ₹153.76 | ₹1,53,760.00 |
1 × ₹261.73
₹261.73
excl. GST
₹308.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOTF280A60L-VB
₹261.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 1.75nF
- Pd - Power Dissipation
- 80W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 240mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Ultra-fast body diode
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCPF260N60E-VB#C22357069VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹290.93 · 5 in stock | View |
 | TK290A60Y-VB#C22357071VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹261.73 · 5 in stock | View |
 | IPA60R120P7-VB#C22357048VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹495.27 · 20 in stock | View |
 | SiHF30N60E-VB#C22357049VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 1 | ₹411.29 · 1 in stock | View |
 | STF33N60M6-VB#C22357050VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹411.29 · 5 in stock | View |
