VBsemi ElecDatasheet (PDF)

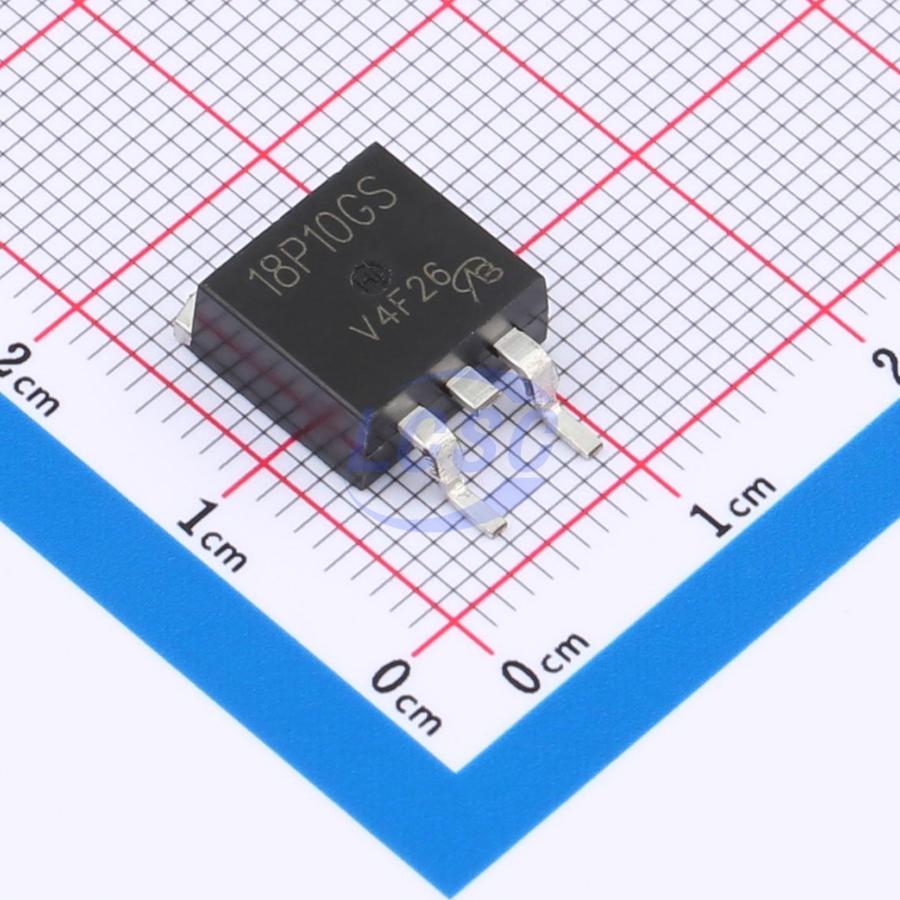

AP18P10GS-VB
P-Channel 100V 12A 50.7W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET P-CH 100V 12A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP18P10GS-VB
- Store part #
- C29778900
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C29778900
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.56 | ₹82.56 |
| 10+ | ₹66.39 | ₹663.90 |
| 50+ | ₹58.40 | ₹2,920.00 |
| 100+ | ₹50.42 | ₹5,042.00 |
| 500+ | ₹45.80 | ₹22,900.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹82.56
₹82.56
excl. GST
₹97.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AP18P10GS-VB
₹82.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 2.765nF
- Pd - Power Dissipation
- 50.7W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 220mΩ@10V;240mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.22 g
Overview
Applications
- Power switch
- Load switch for high-current applications
- DC/DC converter
Key features
- Halogen-free product as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant with directive 2002/95/EC
