VBsemi ElecDatasheet (PDF)

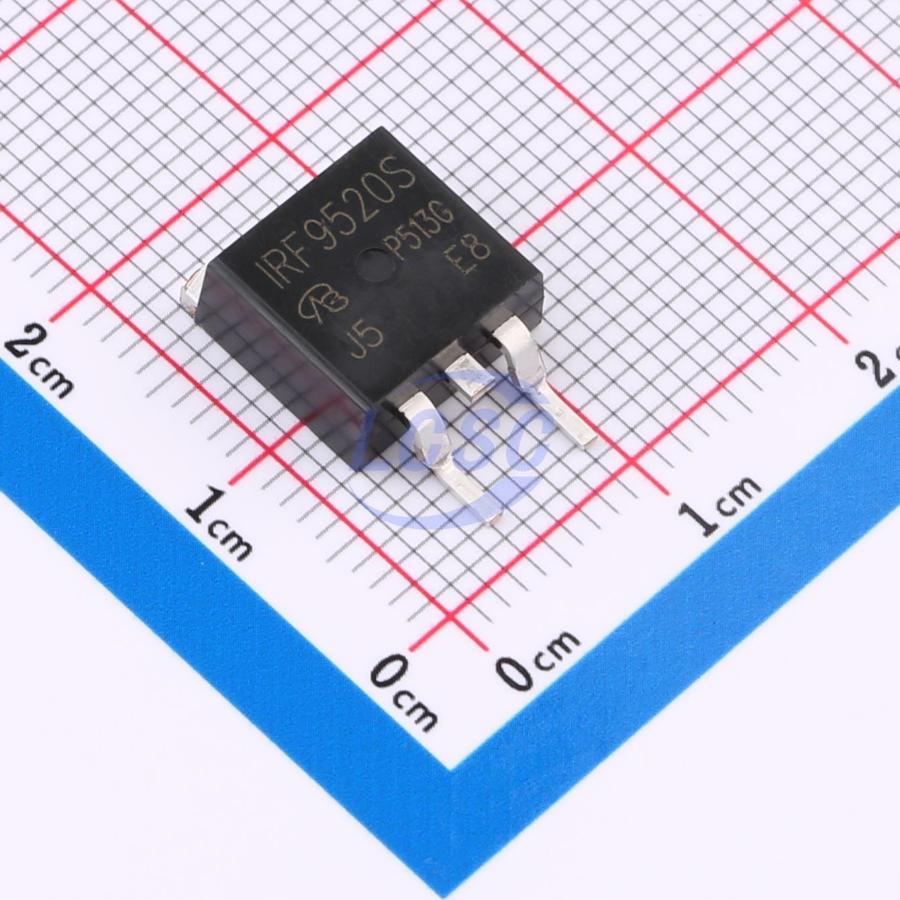

IRF9520S-VB
100V 12A 50.7W 1 P-Channel P-Channel TO-263 Single FETs, MOSFETs
TO-263RoHSActive
MOSFET P-CH 100V 12A TO-263
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF9520S-VB
- Store part #
- C47993945
- Package / case
- TO-263
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C47993945
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.52 | ₹94.52 |
| 10+ | ₹77.94 | ₹779.40 |
| 30+ | ₹69.76 | ₹2,092.80 |
| 100+ | ₹61.57 | ₹6,157.00 |
| 500+ | ₹56.62 | ₹28,310.00 |
| 800+ | ₹54.26 | ₹43,408.00 |
1 × ₹94.52
₹94.52
excl. GST
₹111.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRF9520S-VB
₹94.52 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 2.765nF
- Pd - Power Dissipation
- 50.7W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 220mΩ@10V;240mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.88 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF9530SPBF-VB#C18212600VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 11 | ₹114.08 · 11 in stock | View |
 | F9530NS-VB#C20417659VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹85.92 · 10 in stock | View |
 | AP18P10GS-VB#C29778900VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 6 | ₹82.56 · 6 in stock | View |
 | 2SJ275-VB#C29779143VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹82.56 · 10 in stock | View |
 | IRF9530NS-VB#C4355054VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 225 | ₹114.48 · 225 in stock | View |
