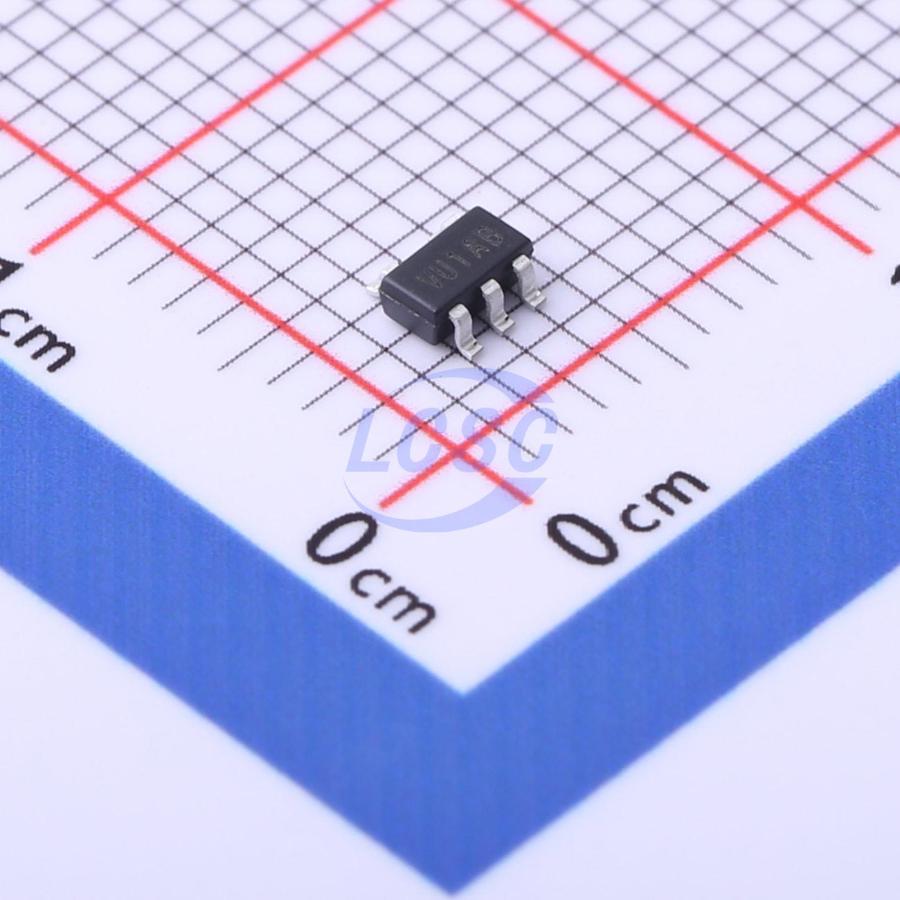

AP2151AW-7

The AP2151A is an integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and is available with active high Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and under-voltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. AP2151A is available in SO-8, MSOP-8EP, SOT25 and U-DFN2018- 6 packages.

Applications

• Consumer Electronics – LCD TVs & Monitors, Game Machines
• Communications – Set-Top-Boxes, GPS Systems, Smartphones
• Computing – Laptops, Desktops, Servers, Printers, Docking Stations, HUBs

Key features

• Single USB Port Power Switches
• Over-Current and Thermal Protection
• 0.8A Accurate Current Limiting
• Reverse Current Blocking
• 95mΩ On-Resistance
• Input Voltage Range: 2.7V to 5.5V
• 0.6ms Typical Rise Time
• Very Low Shutdown Current: 1μA (Max)
• Fault Report (FLG) with Blanking Time (7ms Typ)
• ESD Protection: 4kV HBM, 400V MM
• Active High Enable
• Ambient Temperature Range -40°C to +85°C
• SOT25, SO-8, MSOP-8EP (Exposed Pad) and U-DFN2018-6: Available in “Green” Molding Compound (No Br, Sb)
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• 15kV ESD Protection per IEC 61000-4-2 (With External Capacitance)
• UL Recognized, File Number E322375 IEC60950-1 CB Scheme Certified
