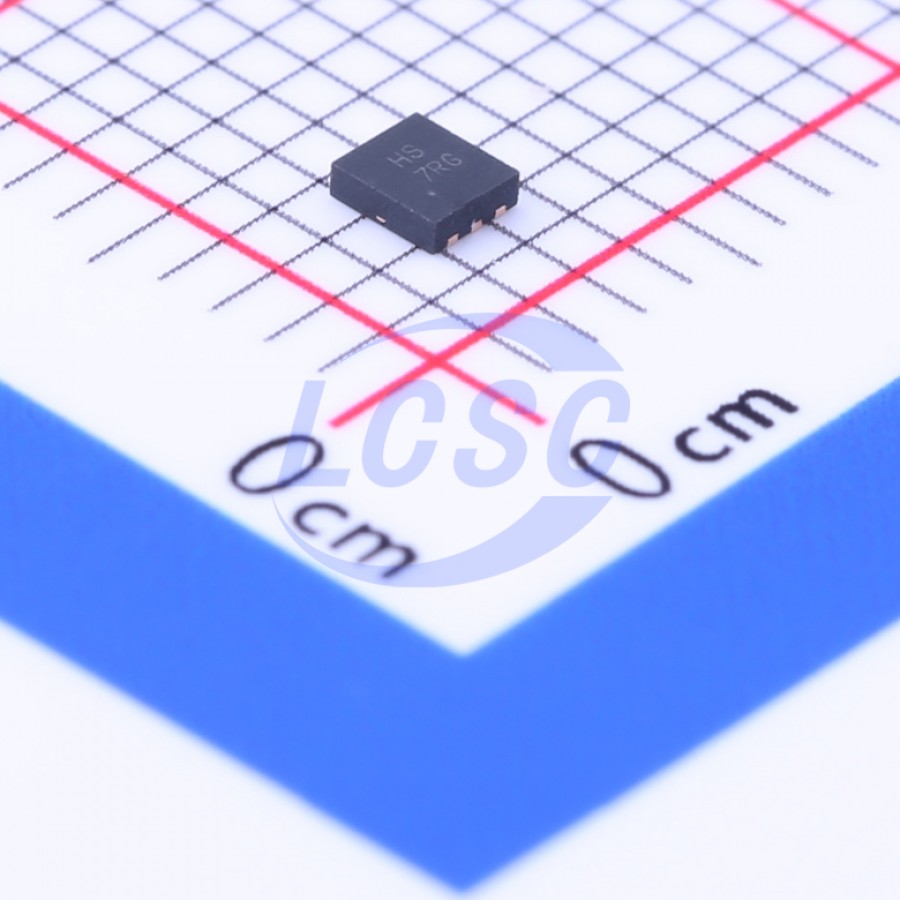

DIODES

AP2151FMG-7

1 Active High 500mA High Side Switch UDFN2018-6 Power Distribution Switches, Load Drivers RoHS

UDFN2018-6ROHS3 CompliantActive

Single Channel Current-Limited Power Switch

Manufacturer: DIODES
Manufacturer part #: AP2151FMG-7
Store part #: C154891
Package / case: UDFN2018-6
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,100 in stock

#C154891

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹35.88	₹35.88
10+	₹28.59	₹285.90
30+	₹25.47	₹764.10
100+	₹21.58	₹2,158.00
500+	₹19.85	₹9,925.00
1,000+	₹18.80	₹18,800.00

Quantity (min 1)

1 × ₹35.88

₹35.88

excl. GST

₹42.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP2151FMG-7

₹35.88 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Soft-start
number of channels: 1
Control Input Logic: Active High
Maximum Continuous Current: 500mA
RDS(on): 90mΩ
Operating Voltage: 2.7V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.017 g

Overview

The AP2141 and AP2151 are integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. This family of devices complies with USB 2.0 and is available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. All devices are available in SO-8, MSOP-8EP, SOT25 and UDFN2018-6 packages.

Applications

Consumer Electronics – LCD TV & Monitor, Game Machines
Communications – Set-Top Box, GPS, Smartphone
Computing – Laptop, Desktop, Servers, Printers, Docking Station, HUB

Key features

Single USB Port Power Switches
Over-Current and Thermal Protection
0.8A Accurate Current Limiting
Reverse Current Blocking
95mΩ On-Resistance
Input Voltage Range: 2.7V to 5.5V
0.6ms Typical Rise Time
Very Low Shutdown Current: 1μA (Max)
Fault Report (FLG) with Blanking Time (7ms Typ)
ESD Protection: 4kV HBM, 400V MM
Active High (AP2151) or Active Low (AP2141) Enable
Ambient Temperature Range -40°C to +85°C
SOT25, SO-8, MSOP-8EP (Exposed Pad), and U-DFN2018-6: Available in “Green” Molding Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
15kV ESD Protection per IEC 61000-4-2 (With External Capacitance)
UL Recognized, File Number E322375 IEC60950-1 CB Scheme Certified

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AP2151AFM-7#C460655DIODES · UDFN2018-6	DIODES	UDFN2018-6	570	₹69.11 · 570 in stock	View
AP2151DFMG-7#C2680480DIODES · DFN2018-6-EP	DIODES	DFN2018-6-EP	1,680	₹28.74 · 1,680 in stock	View
AP2191DFMG-7#C1556629DIODES · DFN2018-6-EP	DIODES	DFN2018-6-EP	67	₹145.57 · 67 in stock	View
XC8109AC10ER-G#C2442362TOREX · USPC-6(1.8x2)	TOREX	USPC-6(1.8x2)	29	₹217.53 · 29 in stock	View
XC8108AC20ER-G#C2442361TOREX · USPC-6(1.8x2)	TOREX	USPC-6(1.8x2)	28	₹126.73 · 28 in stock	View
