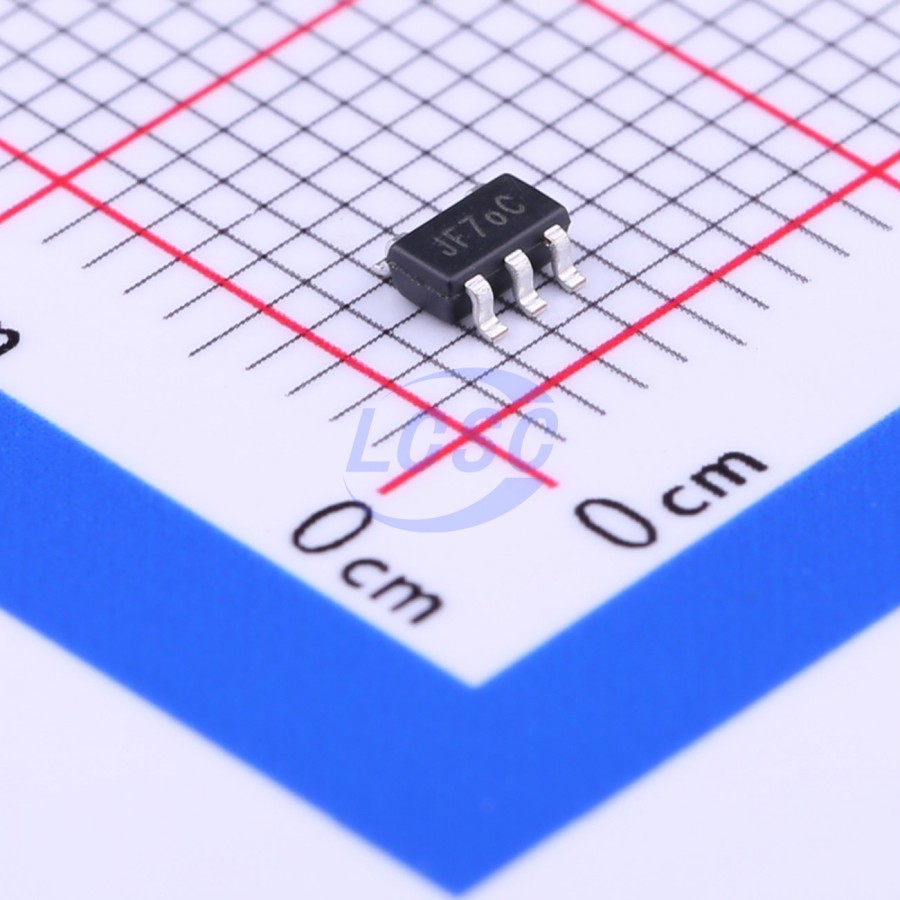

AP2191DWG-7

The AP2181D and AP2191D are integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and is available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the open-drain flag output prevents false overcurrent reporting and does not require any external components. All devices are available in SO-8, MSOP-8, MSOP-8EP, SOT25, and U-DFN2018-6 packages.

Applications

• Consumer Electronics – LCD TVs & Monitors, Game Machines
• Communications – Set-Top-Boxes, GPS, Smartphones
• Computing – Laptops, Desktops, Servers, Printers, Docking Stations, HUBs

Key features

• Single USB Port Power Switches with Output Discharge
• Overcurrent and Thermal Protection
• 2.1A Accurate Current Limiting
• Fast Transient Response
• Reverse Current Blocking
• 90mΩ On-Resistance
• Input Voltage Range: 2.7V – 5.5V
• 0.6ms Typical Rise Time
• Very Low Shutdown Current: 1μA (max)
• Fault Report (FLG) with Blanking Time (7ms typ)
• ESD Protection: 4kV HBM, 300V MM
• Active High (AP2191D) or Active Low (AP2181D) Enable
• Ambient Temperature Range -40°C to +85°C
• SOT25, SO-8, MSOP-8, MSOP-8EP (Exposed Pad), and U-DFN2018-6: Available in “Green” Molding Compound (No Br, Sb)
• Lead-Free Finish; RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• UL Recognized, File Number E322375
• IEC60950-1 CB Scheme Certified
