DIODES

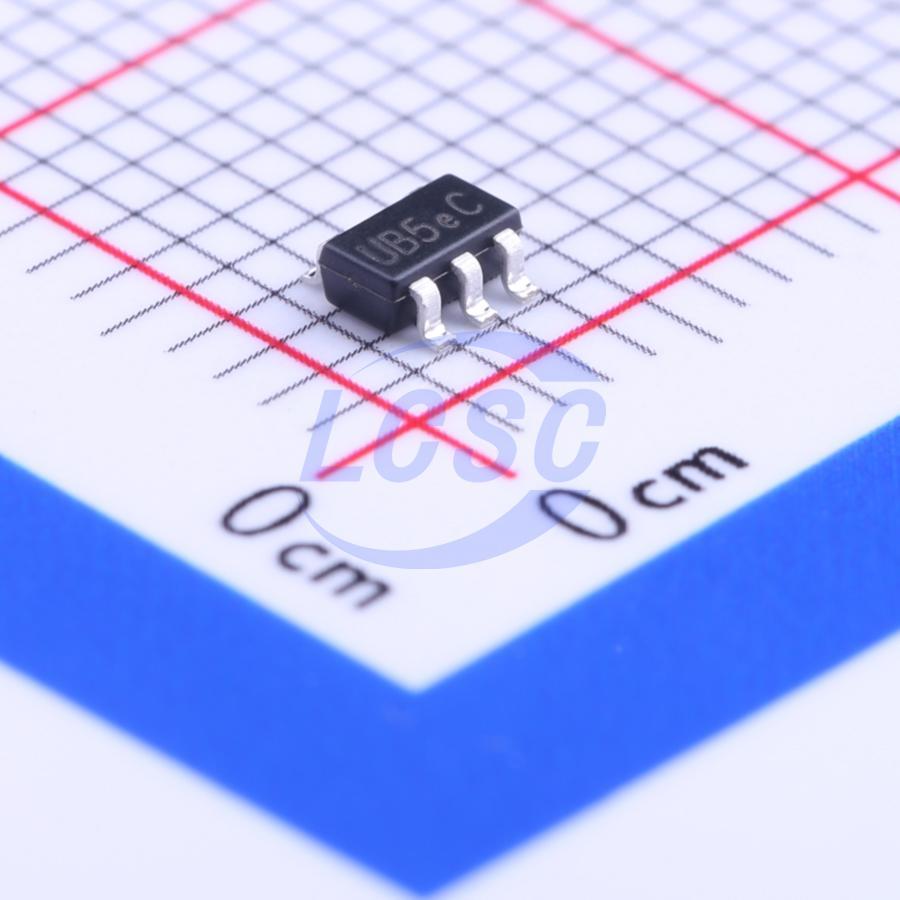

AP2280-2WG-7

1 Active High 2A High Side Switch SOT-25-5 Power Distribution Switches, Load Drivers RoHS

SOT-25-5ROHS3 CompliantActive

Single Channel Slew Rate Controlled Load Switch

Manufacturer: DIODES
Manufacturer part #: AP2280-2WG-7
Store part #: C128639
Package / case: SOT-25-5
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,873 in stock

#C128639

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹102.88	₹102.88
10+	₹82.26	₹822.60
30+	₹72.06	₹2,161.80
100+	₹61.64	₹6,164.00
500+	₹55.57	₹27,785.00
1,000+	₹52.52	₹52,520.00

Quantity (min 1)

1 × ₹102.88

₹102.88

excl. GST

₹121.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP2280-2WG-7

₹102.88 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Soft-start;Output discharge function
number of channels: 1
Control Input Logic: Active High
Maximum Continuous Current: 2A
RDS(on): 80mΩ
Operating Voltage: 1.5V~6V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.061 g

Overview

The AP2280 slew rate controlled load switch is a single P-channel MOSFET power switch designed for high-side load-switching or power distribution applications. The MOSFET has a typical RDS(ON) of 80mΩ at 5V, allowing increased load current handling capability with a low forward voltage drop. The turn-on slew rate of the device is controlled internally to reduce turn-on inrush current. The AP2280 load switch is designed to operate from 1.5V to 6.0V, making it ideal for 1.8V, 2.5V, 3.3V, and 5V systems. The typical quiescent supply current is only 0.004uA, making it ideal for battery powered distribution system where the power consumption is a concern.

Applications

Smart Phones
Personal Digital Assistant (PDA)
Cell Phones
GPS Navigators
Bluetooth Headsets
PMP/MP4 Notebook and Pocket PC

Key features

Wide input voltage range: 1.5V – 6V
Low RDS(ON): 80mΩ typical @ 5V
Turn-on slew rate controlled
AP2280-1: 100us turn-on rise time
AP2280-2: 1ms turn-on rise time
Very low turn-on quiescent current: << 1uA
Fast load discharge pin
Temperature range -40°C to 85°C
SOT25 and DFN2018-6: Available in “Green” Molding Compound (No Br, Sb) Lead Free Finish/ RoHS Compliant
