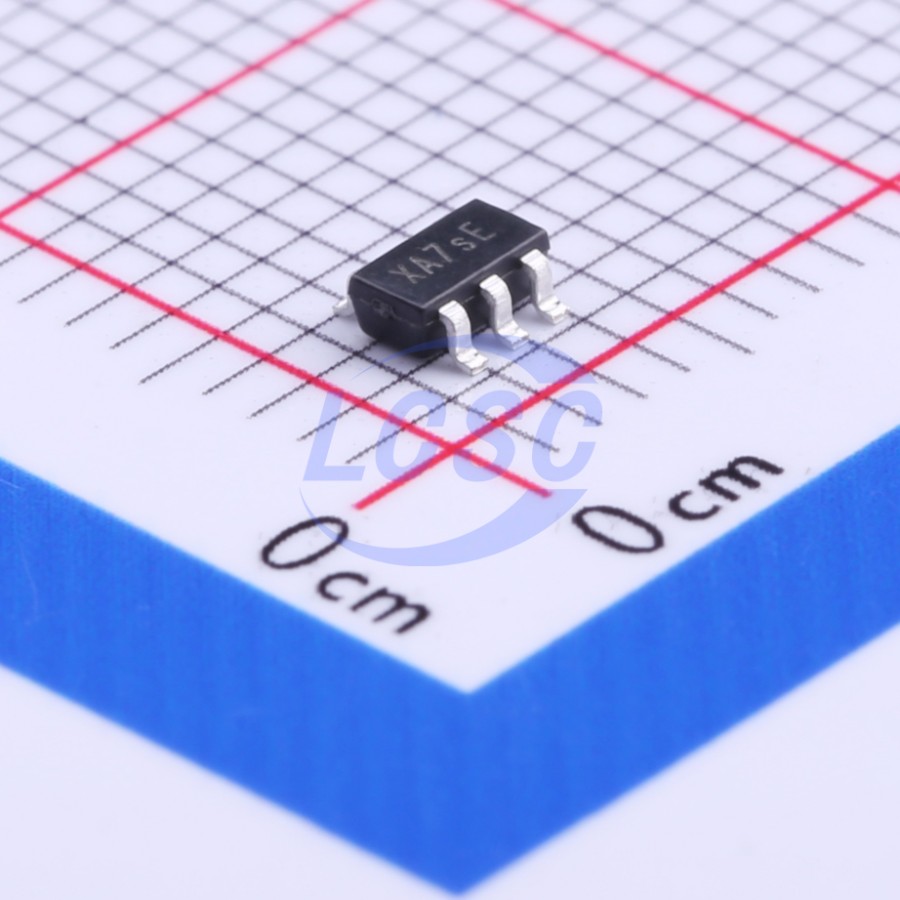

DIODES

AP22802AW5-7

1 Active High 2A High Side Switch SOT-25-5 Power Distribution Switches, Load Drivers RoHS

SOT-25-5ROHS3 CompliantActive

Single Channel Power Distribution Load Switch

Manufacturer: DIODES
Manufacturer part #: AP22802AW5-7
Store part #: C211404
Package / case: SOT-25-5
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,107 in stock

#C211404

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹60.04	₹60.04
10+	₹46.99	₹469.90
30+	₹41.56	₹1,246.80
100+	₹34.60	₹3,460.00
500+	₹31.55	₹15,775.00
1,000+	₹29.60	₹29,600.00

Quantity (min 1)

1 × ₹60.04

₹60.04

excl. GST

₹70.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP22802AW5-7

₹60.04 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Output discharge function
number of channels: 1
Control Input Logic: Active High
Maximum Continuous Current: 2A
RDS(on): 50mΩ
Operating Voltage: 2.7V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.061 g

Overview

The AP22802 is a single channel current-limited integrated high-side power switch optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and is available with both polarities of Enable input. The device has fast short-circuit response time for improved overall system robustness, and has an integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit, and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as controlled rise time and under-voltage lockout functionality. A 6ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. The AP22802 is available in a standard Green SOT25 and RoHS compliant.

Applications

Integrated Load Switches in Ultrabook PC’s
Power Up/Down Sequencing in Ultrabook PC’s
Notebook
Netbook
Set-Top Boxes
SSD (Solid State Drives)
Consumer Electronics
Tablet PC
Telecom Systems

Key features

Integrated Single Channel Load Switch Protection
Over Current with Auto Recovery
Short Circuit with Auto Recovery
Over Temperature with Auto Recovery
Small Form Factor Packages SOT25 – Footprint of just 9mm2
Thermally Efficient Low Profile Package
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
UL Recognized, File Number E322375
IEC60950-1 CB Scheme Certified

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AP22811AW5-7#C3001660DIODES · SOT-25	DIODES	SOT-25	8,355	₹34.04 · 8,355 in stock	View
TPU3013S5#C46472316TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	9,820	₹22.48 · 9,820 in stock	View
TPAP22811AW5#C23380905TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	2,440	₹16.82 · 2,440 in stock	View
RT9742CGJ5(Z30)#C424402RICHTEK · SOT-23-5	RICHTEK	SOT-23-5	1,255	₹22.72 · 1,255 in stock	View
WS4612EDA-5/TR#C2931339WILLSEMI · SOT-23-5L	WILLSEMI	SOT-23-5L	1,145	₹15.72 · 1,145 in stock	View
