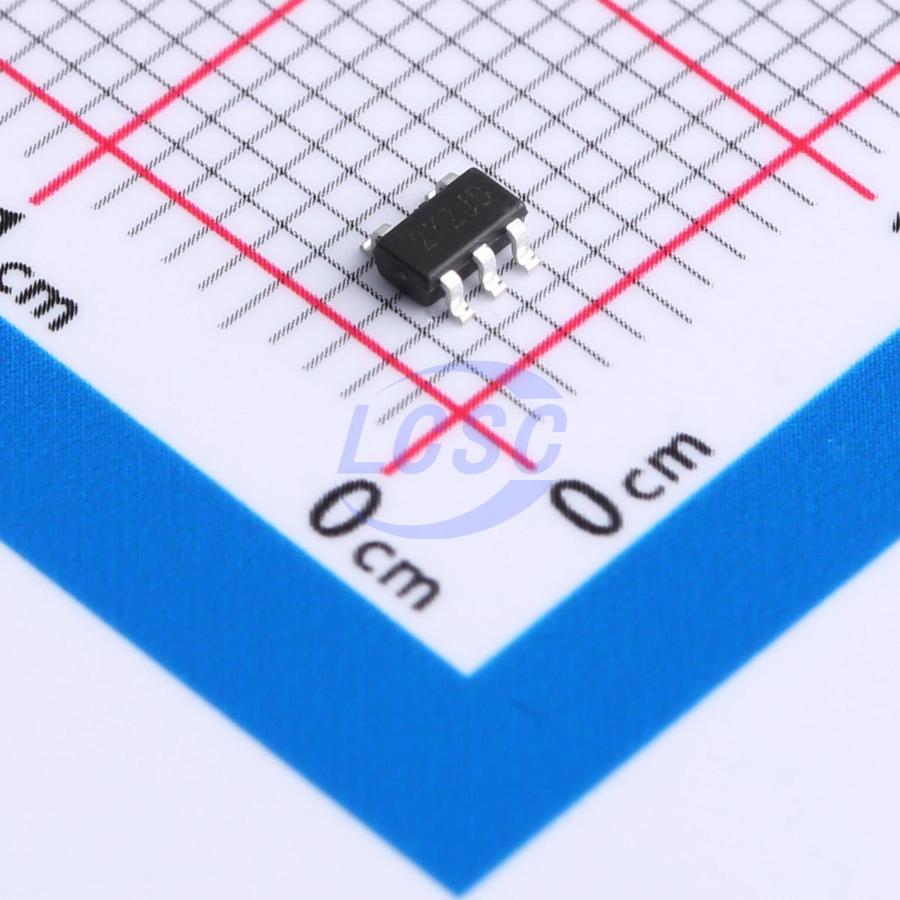

AP22804AW5-7

The AP22804/AP22814 is a single channel current-limited integrated high-side power switch optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and is available with both polarities of Enable input. The device has fast short-circuit response time for improved overall system robustness, and has an integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit, and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as controlled rise time and under-voltage lockout functionality. A 6ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. The AP22804/AP22814 is available in a standard Green SOT25, MSOP-8 and U-DFN2020-6 packages with exposed PAD for improve thermal performance and is RoHS compliant.

Applications

• Integrated Load Switches in Ultrabook PC’s
• Power Up/Down Sequencing in Ultrabook PC’s
• Notebook
• Netbook
• Set-Top Boxes
• SSD (Solid State Drives)
• Consumer Electronics
• Tablet PC
• Telecom Systems

Key features

• Input Voltage Range: 2.7V to 5.5V
• 50mΩ On-resistance
• Built-in Soft-start with 0.6ms Typical Rise Time
• Fault Report (FLG) with Blanking Time (6ms Typ)
• ESD Protection: 2kV HBM, 200V MM
• Active Low (B) or Active High (A) Enable
• Protection Over Current with Auto Recovery
• Short Circuit with Auto Recovery
• Over Temperature with Auto Recovery
• Output Reverse Current / Voltage Protection
• Thermally Efficient Low Profile Package
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• UL Recognized, File Number E322375
• IEC60950-1 CB Scheme Certified
