DIODESDatasheet (PDF)

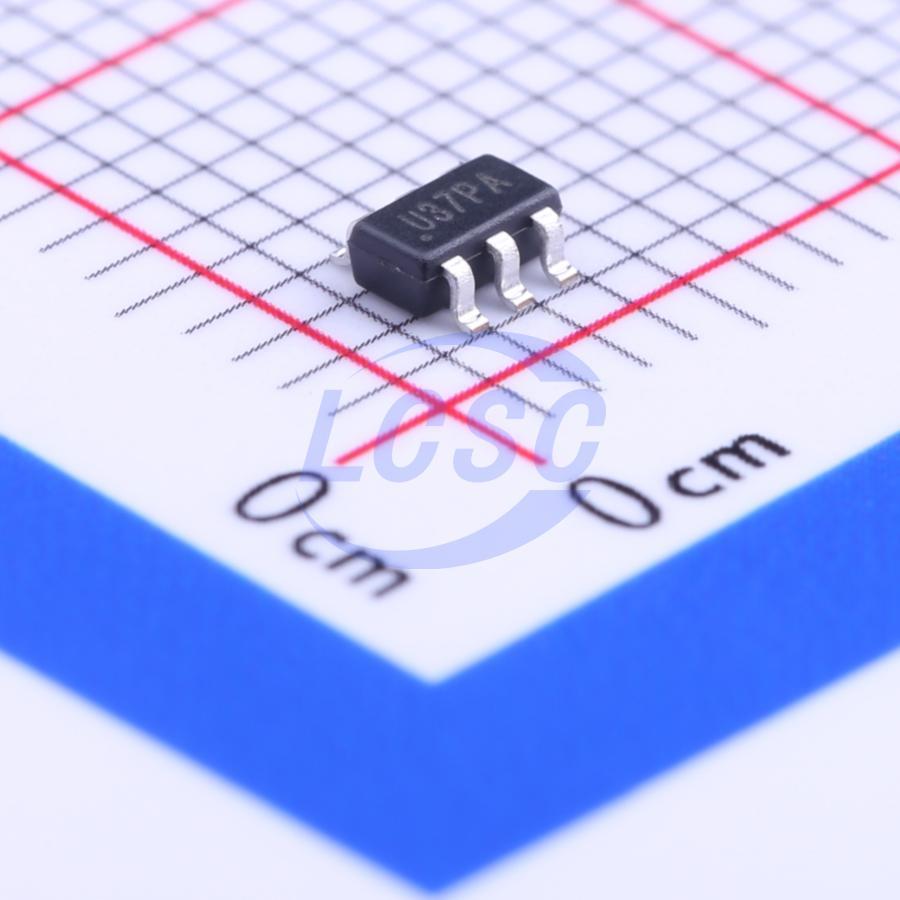

AP2281-3WG-7
1 Active High 2A High Side Switch SOT-26 Power Distribution Switches, Load Drivers RoHS
SOT-26ROHS3 CompliantActive
Single Slew Rate Controlled Load Switch
- Manufacturer
- DIODES
- Manufacturer part #
- AP2281-3WG-7
- Store part #
- C128634
- Package / case
- SOT-26
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
701 in stock
#C128634
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.60 | ₹78.60 |
| 10+ | ₹62.75 | ₹627.50 |
| 30+ | ₹54.72 | ₹1,641.60 |
| 100+ | ₹46.68 | ₹4,668.00 |
| 500+ | ₹41.90 | ₹20,950.00 |
| 1,000+ | ₹39.52 | ₹39,520.00 |
1 × ₹78.60
₹78.60
excl. GST
₹92.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2281-3WG-7
₹78.60 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Soft-start;Output discharge function
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- RDS(on)
- 80mΩ
- Operating Voltage
- 1.5V~6V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.145 g
Overview
The AP2281 slew rate controlled load switch is a single P-channel MOSFET power switch designed for high-side load-switching applications. The MOSFET has a typical RDS(ON) of 80mΩ at 5V, allowing increased load current handling capacity with a low forward voltage drop. The turn-on slew rate of the device is controlled internally. The AP2281 load switch is designed to operate from 1.5V to 6V, making it ideal for 1.8V, 2.5V, 3.3V, and 5V systems. The typical quiescent supply current is only 0.01μA.
Applications
- Smart Phones
- PDA
- Cell Phones
- GPS Navigators
- PMP/MP4
- Notebook and Pocket PC
Key features
- Wide input voltage range: 1.5V – 6V
- Low RDS(ON): 80mΩ typical @ 5V
- Turn-on slew rate controlled AP2281-1: 1ms turn-on rise time
- AP2281-3: 100μs turn-on rise time with internal discharge
- Very low turn-on quiescent current: <<1μA
- Fast load discharge option
- Temperature range -40°C to +85°C
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIP32508DT-T1-GE3#C139515VISHAY · TSOT-23-6 | VISHAY | TSOT-23-6 | 3,167 | ₹64.42 · 3,167 in stock | View |
| AOZ1320CI-05#C19585872AOS · SOT-23-6 | AOS | SOT-23-6 | On request | ₹72.26 · 0 in stock | View | |
| AOZ1320CI-04#C2149928AOS · SOT-23-6 | AOS | SOT-23-6 | On request | ₹33.52 · 0 in stock | View | |
